bintec elmeg

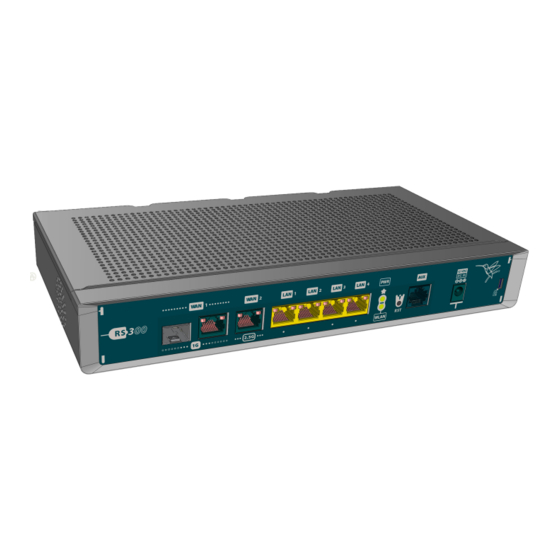

RS300 Series
Installation Manual
Copyright© bintec Dm1052-I Version 1.0 12/2022 bintec elmeg
RS300 Series
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS300 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for bintec elmeg RS300 Series

  • Page 1 Manual bintec elmeg RS300 Series Installation Manual Copyright© bintec Dm1052-I Version 1.0 12/2022 bintec elmeg RS300 Series...
  • Page 2 This publication is subject to change. bintec elmeg offers no warranty whatsoever for information contained in this manual. bintec elmeg is not liable for any direct, indirect, collateral, consequential or any other damage connected to the de- livery, supply or use of this manual.
  • Page 3: Table Of Contents

    WAN 2.5G connection ....... . . 3.6.4 Connecting for configuration ......RS300 Series...
  • Page 4 Dimensions and weight ....... . A.5.8 Environmental specifications ......RS300 Series...
  • Page 5: I Related Documents

    Related Documents bintec elmeg I Related Documents bintec Dm704-I Configuration and Monitoring bintec Dm709-I LAN interfaces bintec Dm748-I Software Updating RS300 Series...
  • Page 6: About This Guide

    1.7 Technical support bintec elmeg offers technical support. Device software can be upgraded on a regular basis for maintenance pur- poses and for new features.
  • Page 7 1 About this Guide bintec elmeg Fax: +49 - 911 - 688 0725 Email: support@bintec-elmeg.com RS300 Series...
  • Page 8: Rs300

    For further information on the LED panel, please see Components on page 5. RS300 Series...
  • Page 9: Components And Power Supply

    WAN Base-T connectors on page 22 WAN Base-T interface on page 23 Eth WAN-2 Base-T. WAN 2.5 Gigabit Ethernet. For more information on the WAN interface, refer to: WAN 2.5G connection on page 14 WAN Base-T connectors on page 22 RS300 Series...
  • Page 10 The following figure shows the router's WAN-1 LED indicators: WAN-1 LEDs Fig. 3: WAN-1 Ethernet LED indicators Description Copper status Green - Steady: 10/100/1000M link established. - Blinking: Transferring data. Yellow Fiber status: - Steady: 1000M link established. RS300 Series...
  • Page 11 Switch LEDs Fig. 5: Switch LED indicators Description Yellow Connected to 10/100 M: - Steady: Not transferring data. - Blinking: Transferring data. Yellow + Green Connected to 1000 M: - Steady: Not transferring data. - Blinking: Transferring data. RS300 Series...
  • Page 12: Underside Panel

    The T-bar lock of the security cable allows the device to be attached to an anchor point to help prevent theft. The security slot is located on the front panel of the housing, as shown in the following figure: Security Slot Fig. 7: RS300 Series...
  • Page 13: Installation

    Make sure that there are no concealed pipes and cables at the desired drilling location before drilling any mounting holes. Damage to electricity cables, gas, water and sewage pipes can result in death or material damage. Choose the installation location so that as few obstacles or electrical appliances as possible disturb the connection. RS300 Series...
  • Page 14: 19'' Rack Installation

    3.3.3 19'' Rack installation The RS300 device can be installed in a 19” rack. Note The rack mount kit, composed of strips and screws, is not delivered with the router by default and must be acquired separately. Rack installation Fig. 11: RS300 Series...
  • Page 15: Power Source

    We recommend connecting all data devices to the same power source regardless of whether the work- place has an uninterrupted power supply system (UPS), a regulated supply or is independent of other power supplies (such as lighting, etc.). This will help to prevent malfunctions and premature aging of the drivers and other components. RS300 Series...
  • Page 16: Rst Button

    The RS300 router incorporates a 4-port 10/100/1000 Base-T switch with automatic MDI/MDIX to connect to a local area network (LAN). Please pay careful attention to the labeling to avoid mistaking this switch for other types of ports: LAN ports Fig. 15: RS300 Series...
  • Page 17: Wan Combo Connection

    Laser Radiation. Do not use optical instruments directly or without proper protection. CLASS 1 LASER PRODUCT. The SFP modules to be installed in the card socket should be class 1 devices that comply with the IEC/ EN 60825-1:2007 standard. RS300 Series...
  • Page 18: Wan 2.5G Connection

    The RS300 router has an RJ45 female connector on the front panel (labeled "AUX.") that provides access to the device's local console. For further information, please see Connecting to the device on page 20. AUX. Connector Fig. 18: RS300 Series...
  • Page 19: Compliance

    Suedwestpark 94 90449 Nuremberg Germany International Phone +49 - 911 - 9673 0 4.2 Risk identification WARNING: Signal word used to designate a potentially dangerous situation that may cause severe injuries or death if not avoided. 4.3 Safety warnings RS300 Series...
  • Page 20 4 Compliance bintec elmeg RS300 Series...
  • Page 21: Weee Information

    Manufacturer Name ASIAN POWER DEVICES INC. (APD) Manufacturer Address NO.5 LANE 83. LUNG-SOU ST, TAO-YUAN CITY, TAIWAN R.O.C. Input Voltage 100-240 Vac Input AC frequency 50-60 Hz Output voltage 12.0 V Output current 2.5 A Output power 30.0 W RS300 Series...
  • Page 22: Ec Declaration Of Conformity

    Richtlinie 2009/125/EG (ErP) Richtlinien 2011/65/EU und 2015/863/EU (RoHS) des Europäischen Parlaments. Spanish (ES) Español Por la presente, bintec elmeg declara que el tipo de equipo de telecomunica- ciones RS300 es conforme con: Directiva 2014/30/UE (EMC) Directiva 2014/35/UE (LVD) Directiva 2009/125/CE (ErP) Directivas 2011/65/UE y 2015/863/UE (RoHS) del Parlamento Europeo y del Consejo.
  • Page 23 4 Compliance bintec elmeg This product must only be used indoors. RS300 Series...
  • Page 24: Appendix A Technical Information

    The RS300 router has a RJ45 female connector on the front panel, known as AUX, which provides access to the device's local console. AUX Connector Fig. 19: To configure this, you must connect the Aux port to an asynchronous terminal (or to a PC with terminal emulation). RS300 Series...
  • Page 25: Connectors

    Fig. 20: For further information, please see manual: “bintec Dm704-I Configuration and Monitoring” . A.4 Connectors A.4.1 LAN connectors RJ45 LAN RJ45 PIN FE Signals GE Signals BI-DA+ BI-DA+ BI-DA- BI-DA- BI-DB+ BI-DB+ BI-DC+ BI-DC- BI-DB- BI-DB- BI-DD+ BI-DD- RS300 Series...
  • Page 26: Wan Base-T Connectors

    A.4.2 WAN Base-T connectors RJ45 WAN RJ45 PIN FE Signals GE Signals BI-DA+ BI-DA+ BI-DA- BI-DA- BI-DB+ BI-DB+ BI-DC+ BI-DC- BI-DB- BI-DB- BI-DD+ BI-DD- A.4.3 WAN SFP connector Standard SFP connector A.4.4 Configuration connector RJ45 CONFIGURATION RJ45 PIN CONF RS300 Series...
  • Page 27: Power Supply Connector

    Memory (4 GBytes). A.5.2 LAN interface PROTOCOLS Ethernet (802.3). PORTS 4-port MDI/MDX auto-detection. SPEED 10/100/1000 Mbps (Base-T). CONNECTOR RJ45 female. A.5.3 WAN Base-T interface STANDARDS Ethernet (802.3). SPEED WAN-1: 10/100/1000 Mbps (Base-T). WAN-2: 10/100/1000/2500 Mbps (Base-T). CONNECTOR RJ45 female. RS300 Series...
  • Page 28: Wan Sfp Interface

    283mm x 144mm x 40mm WEIGHT 0.6 Kg A.5.8 Environmental specifications TEMPERATURE OPERATING NORMALLY: 0 ºC to 45 ºC. STORED: -25 ºC to 70 ºC. RELATIVE HUMIDITY 10 % to 95 %. NOISE 38.3 dB SPL (5000 rpm). RS300 Series...
