Manual
bintec elmeg

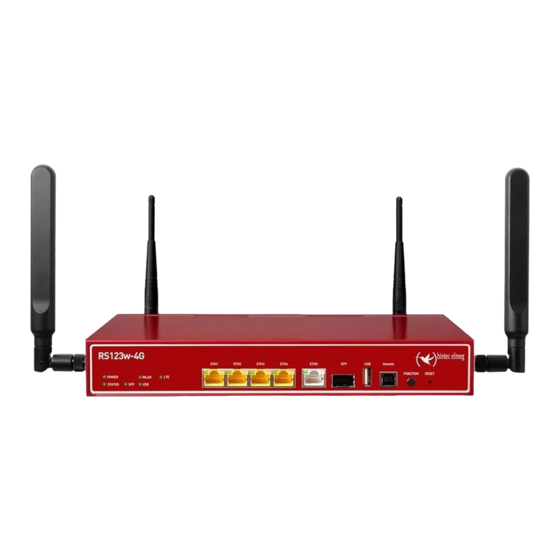

RS123 Router
Installation Manual
Copyright© bintec Dm674-I Version 1.1 01/2018 bintec elmeg
RS123 Router
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS123 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for bintec elmeg RS123

  • Page 1 Manual bintec elmeg RS123 Router Installation Manual Copyright© bintec Dm674-I Version 1.1 01/2018 bintec elmeg RS123 Router...
  • Page 2 This publication is subject to change. bintec elmeg offers no warranty whatsoever for information contained in this manual. bintec elmeg is not liable for any direct, indirect, collateral, consequential or any other damage connected to the de- livery, supply or use of this manual.
  • Page 3: Table Of Contents

    Chapter 2 RS123 Devices ........4 Description .
  • Page 4 LAN Interface ........A.6.3 WAN Interface (RJ45) ....... . . RS123 Router...
  • Page 5 Radio WWAN Specifications ......Radio WIFI Specifications ....... RS123 Router...
  • Page 6: I Related Documents

    Related Documents bintec elmeg I Related Documents bintec Dm748-I Software Updating RS123 Router...
  • Page 7: Chapter 1 About This Guide

    1 About This Guide bintec elmeg Chapter 1 About This Guide This installation guide for the RS123 router family contains information on how to correctly install the device in a working environment. 1.1 Supported Devices The information provided in this installation guide only applies to the RS123 router family: RS123 Devices.
  • Page 8 1 About This Guide bintec elmeg Fax: +49 - 911 - 688 0725 Email: support@bintec-elmeg.com RS123 Router...
  • Page 9: Chapter 2 Rs123 Devices

    The RS123 Router is equipped with five Gigabit Ethernet ports that can be independently configured for use in a LAN, WAN, or DMZ. The RS123 also comes with an SFP slot for optical fibre expansion modules, e.g. for connecting to an optical fibre broadband connection, enabled by license.
  • Page 10: Hardware Monitoring

    2.2.2 Hardware Monitoring The LEDs on the front panel are used to monitor the hardware in the RS123 router. These LEDs provide visual in- formation on the state of the device and reference the condition of the hardware components, indicating whether- there is connectivity, data flow, etc.
  • Page 11: Chapter 3 Components And Power Supply

    3 Components and Power Supply bintec elmeg Chapter 3 Components and Power Supply The following chapter provides detailed information on the chassis of the RS123 router family and its components. This information includes: • Components. • Information on assembly. • Installing and uninstalling modules.
  • Page 12 On-> interface up and connection established. Blinking -> connection data activity. In addition to the LEDs described in the above table, the front panel also has LEDs linked to the Switch Gigabit Eth- ernet interfaces and WAN Gigabit Ethernet interface. RS123 Router...
  • Page 13: Rear Panel

    - Steady: Not transferring data. - Blinking: Transferring data. 3.1.2 Rear Panel The following figure shows the rear panel. Here you will find the majority of the RS123 router family connectors. Rear panel Fig. 5: The following table provides information on each connector, as well as a description:...
  • Page 14: Side Panels

    The following elements can be found on the underside panel: Underside panel Fig. 7: The following table contains details on the significant elements on the underside panel: Underside panel elements table Item Description Rubber feet. Holes for wall mounting. Internal module SIM tray. RS123 Router...
  • Page 15: Installation

    Fig. 8: 3.2.2 Standalone RS123 devices can be placed as a standalone on a flat, stable surface. The adhesive rubber feet must be stuck to the underside panel to stop the router from sliding. Make sure there is enough space around the router (for ventilation purposes) and check that the electricity cables can easily reach it.
  • Page 16: Plug-In Modules

    To remove the device, simply remove it from the slot where it was inserted. 3.4 Power Source The RS123 router is powered with an internal power source. Workplace Conditions. Main Characteristics • Excessive cold and heat should be avoided, as should humidity and dust.
  • Page 17: Connecting

    Note Some devices leave the factory with customized settings. This personalization may mean that the de- fault configuration is different from the one shown above. 3.6 Connecting the data The RS123 router family has the following data connections. RS123 Router...
  • Page 18: 4-Port Ethernet Switch

    3.6.1 4-port Ethernet Switch The RS123 router family incorporates a 4-port 10/100/1000 BaseT Switch with automatic MDI/MDIX to connect to a local area network (LAN). Please pay careful attention to the labeling so you do not mix this switch with other types of ports: LAN switch PORTs Fig.
  • Page 19: Wwan Antenna Connection (3G/4G Connector)

    3G/4G (located on the side panels of the router). Note This connector is only available on RS123w-4G Devices. Installing these antennas in the RS123 router is essential in order to improve the quality of the signal received and transmitted by the cellular model. Note To achieve high-quality performance, the router should always have the WWAN antennas installed.
  • Page 20: Wireless Lan Antenna Connection (Wlan Connectors)

    3.6.5 Connecting a 3G USB device (USB connector) The RS123 family has a USB HOST 2.0 Type A connector interface, which allows 3G USB modems to be connec- ted. The interface can be activated by purchasing the corresponding software license.
  • Page 21: Connecting For Configuration

    3.7 Installing the SIM card The RS123 family has a Wireless WAN interface that, in order to operate, may require a SIM card to be inserted into the device. Certain services (CDMA) provided by several carriers in some countries do not require SIM cards.
  • Page 22 (5) Close the card slot. Press the card slot downwards again. (6) Push the card lock in the direction of the arrow. You will hear a click as the card locks into place. Fig. 17: Internal SIM try RS123 Router...
  • Page 23: Chapter 4 Compliance

    4 Compliance bintec elmeg Chapter 4 Compliance 4.1 Manufacturer Information Brand bintec Manufacturer bintec elmeg Country Germany Postal Address Suedwestpark 94 90449 Nuremberg Germany International Phone +49 - 911 - 9673 0 4.2 Safety Warnings Connecting Disconnecting RS123 Router...
  • Page 24 4 Compliance bintec elmeg RS123 Router...
  • Page 25: Weee Information

    El símbolo del contenedor con la cruz, que se encuentra en el aparato, significa que cuando el equipo haya llegado al final de su vida útil, deberá ser llevado a los centros de recogida previstos, y que su tratamiento debe estar separado del de los residuos urbanos. RS123 Router...
  • Page 26: Reach

    Directiva 2011/65/UE (RoHS) del parlamento Europeo. Note —Directive 2014/53/EU (RED) replaces Directive 1999/5/EC (R&TTE) on 13th June 2016. —Directive 2014/30/EU (EMC) replaces Directive 2004/108/EC (EMC) on 20th April 2016. —Directive 2014/35/EU (LVD) replaces Directive 2006/95/EC (LVD) on 20th April 2016. RS123 Router...
  • Page 27: Ce Marking

    In accordance to article 10 of 2014/53/EU we inform you that there may be national restrictions and requirements for authorization. The requirements for any country may evolve. bintec elmeg recommends that you check with local au- thorities for the latest status of their national regulations.
  • Page 28: Appendix A Technical Information

    A.3 Connecting to the device A.3.1 Connecting using the local console (Aux connector) The RS123 router has an USB Type B connection the front panel known as “CONSOLE” , which provides access to the device local console. RS123 Router...
  • Page 29: Licenses

    - No type of flow control. A.4 Licenses The RS123 router family offers a series of licenses among which the following stand out: SFP: Activation license for the SFP port . DPI: Activation license for the DPI feature (Layer 7 Visibility).
  • Page 30: Wan Connector

    BI-DA+ BI-DA+ BI-DA- BI-DA- BI-DB+ BI-DB+ BI-DC+ BI-DC- BI-DB- BI-DB- BI-DD+ BI-DD- A.5.3 WWAN Connector (female) Internal RF in/out External A.5.4 WLAN Connector (male) Internal RF in/out External A.5.5 USB Connector USB Type A DATA- DATA+ Shell Shield RS123 Router...
  • Page 31: Configuration Connector

    FLASH Memory (32 Mbytes). A.6.2 LAN Interface PROTOCOLS Ethernet (802.3). PORTS 4 port Switch managed with MDI/MDX autodetection. SPEED 10/100/1000 Mbps (BaseT). CONNECTOR RJ45 female. A.6.3 WAN Interface (RJ45) STANDARDS Ethernet (802.3). SPEED 10/100/1000 Mbps (BaseT). CONNECTOR RJ45 female. RS123 Router...
  • Page 32: Wan Interface (Sfp)

    WWAN Standard/Bands MC7304: • LTE: B1, B3, B7, B8, B20 • WCDMA: B1, B2, B5, B8 • GSM/GPRS/EDGE: Quad-band Speed (DL/UL) MC7304: CONNECTOR Two SMA female connectors. SIM Slots 1 Mini-SIM (2FF) ISO/IEC 7810:2003, ID-000 (1.8V / 3V) RS123 Router...
  • Page 33: Wireless Lan Interface

    Adjustable in the following steps: 5, 8,11,14,16 dBm and maximum. Maximal antenna gain) power varies depending on data rate, frequency band and country setting. Bandwidth (802.11n) 20/40 MHz (bundling two adjoining 20 MHz channels into one 40 MHz channel). RS123 Router...
  • Page 34: Usb Interface

    LENGTH x WIDTH x HEIGHT 265mm x 170mm x 40mm WEIGHT 1.4 kg. A.6.11 Environmental Specifications TEMPERATURE OPERATING NORMALLY: 0 ºC to 40 ºC STORED: -25 ºC to 70 ºC RELATIVE HUMIDITY On: 10 % to 90 %, non-condensing RS123 Router...
  • Page 35: Radio Information

    Technology: GSM / GPRS / EDGE Bands Frequencies Radiated Transmit Power EGSM 900 (900 MHz) Tx: 880–915 MHz +32 dBm ± 1 dBm Rx: 925–960 MHz DCS 1800 (1800 MHz) Tx: 1710–1785 MHz +29 dBm ± 1 dBm Rx: 1805–1880 MHz RS123 Router...
  • Page 36: Radio Wifi Specifications

    -95 dBm;9 Mbps-95 dBm; 12 Mbps -94 dBm; 18 Mbps -92 dBm; 24 Mbps -90 dBm; 36 Mbps -85 dBm; 48 Mbps -83dBm; 54 Mbps -80 dBm TX power @ 5 GHz 802.11n MCS0/8 19 dBm; MCS1/9 19 dBm; MCS2/10 19 dBm; MCS3/11 19 dBm; RS123 Router...
  • Page 37 MCS0 -96 dBm; MCS1 -93 dBm; MCS2 -91 dBm; MCS3 -88 dBm; MCS4 -85 GHz802.11n 20 MHz (HT20) dBm; MCS5 -81 dBm;MCS6 -79 dBm; MCS7 -77 dBm; MCS8 -94 dBm; MCS9 -92 dBm; MCS10 -90 dBm; MCS11 -87 dBm;MCS12 -84 dBm; MCS13 -80 dBm; MCS14 -78 dBm; MCS15 -76 dBm RS123 Router...
