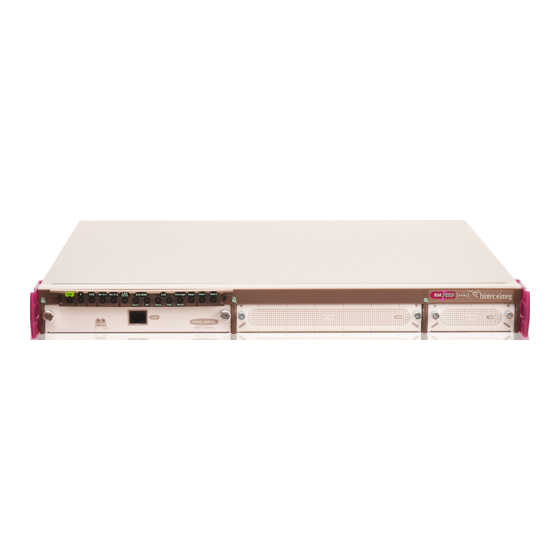

- Page 1 Manual bintec elmeg RM7000 Installation Manual Copyright© bintec Dm667-I Version 2.5 06/2020 bintec elmeg RM7000...
- Page 2 This publication is subject to change. bintec elmeg offers no warranty whatsoever for information contained in this manual. bintec elmeg is not liable for any direct, indirect, collateral, consequential or any other damage connected to the de- livery, supply or use of this manual.
-
Page 3: Table Of Contents
RM7000 ........4... - Page 4 Table of Contents bintec elmeg 3.7.2 WAN connection ........
-
Page 5: I Related Documents
Related Documents bintec elmeg I Related Documents bintec Dm748-I Software Updating RM7000... -
Page 6: About This Guide
1 About this Guide bintec elmeg Chapter 1 About this Guide This installation guide for the RM7000 router contains information on how to correctly install this device in a working environment. 1.1 Supported devices The information provided in this installation guide only applies to the RM7000 router. - Page 7 1 About this Guide bintec elmeg Fax: +49 - 911 - 688 0725 Email: support@bintec-elmeg.com RM7000...
-
Page 8: Rm7000
2.1.2 Hardware monitoring The LEDs on the front panel are used to monitor the hardware in the RM7000 router. These LEDs provide visual in- formation on the state of the device and reference the condition of the hardware components, indicating whether there is connectivity, data flow, etc. -
Page 9: Components And Power Supply
3 Components and Power Supply bintec elmeg Chapter 3 Components and Power Supply The following chapter provides detailed information on the chassis of the RM7000 and its components. This informa- tion includes: • Components. • Information on assembly. • Installing and uninstalling modules. - Page 10 3 Components and Power Supply bintec elmeg Red -> Interface unavailable because it is installing, disabled (shutdown) or due to auto-test failure. Amber -> Idle. • Rapid blinking. It has not registered in the network or the quality is insufficient.
-
Page 11: Rear Panel
Green -> Link detected. Blinking: con- nection data activity. 3.1.2 Rear panel The following figure shows the rear panel. Here you will find the majority of the RM7000 router connectors. Rear panel Fig. 3: The following table provides information on each connector, as well as a description:... -
Page 12: Expansion Slots
On/Off switch. 3.2 Expansion slots The RM7000 has two expansion slots. This allows you to increase the features and interfaces by inserting different cards or boards. These slots are located on the router's front panel, as shown in the following figure: Expansion slots Fig. -
Page 13: Compatible Cards
3.2.1 Compatible cards RM7000 can be equipped with a wide variety of cards that expand the router features and interfaces. Note Please see the bintec website http://www.bintec-elmeg.com for a list of updated expansion cards. -
Page 14: Installation In A Rack
4xGE card 3.3 Installation in a rack The RM7000 can be installed in a 19” rack. The necessary strips and screws are not provided by default and have to be acquired separately. (1) First, the maroon side tabs must be removed to free the screws holes: Side tabs have to be removed Fig. -
Page 15: Standalone
Fig. 10: 3.3.1 Standalone RM7000 can be placed as standalones on a flat, stable surface. The adhesive rubber feet must be stuck to the un- derside panel to prevent the router from sliding. Make sure there is enough space around the router (for ventilation purposes) and check that the power cord and data cables can reach it. -
Page 16: Power Source
The RM7000 is powered through an internal AC/DC source. The RM7000 may also incorporate a card to inject PoE through the 4 ports of the 8-port Switch. In this case, an ex- ternal adapter is needed to provide power to PoE module. -
Page 17: Poe Source
3.5.2 PoE source The RM7000 can be powered through an Ethernet cable that complies with the PoE 802.3af standard (15.4 W per port). This feature needs an external adapter and internal card to work. The following figure shows where to connect the PoE source to the device: PoE source connection (blue) and PoE ports (red) Fig. - Page 18 3 Components and Power Supply bintec elmeg persists, please contact your usual supplier. (9) Connect a terminal to the console and check that the device detects the MiniPoE card. ************************************************** ************************************************** ************************************************** BIOS CODE DUMP....BIOS DATA DUMP..End of BIOS dump FLASH BIOS CODE VERSION: 01.05...
-
Page 19: Rst Button
• IP mask: 255.255.255.0 Note Some devices leave the factory with customized settings. This personalization may mean your router's default configuration is different from the one shown above. 3.7 Connecting the data The RM7000 has the following data connections. RM7000... -
Page 20: 8-Port Ethernet Switch
3.7.2 WAN connection The RM7000 has one Ethernet interface for WAN connection. This port has two connectors - SFP for optical link and RJ45 for 10/100/1000 Base-T link - but they cannot operate simultaneously. This interface is totally independent from the switch and is handled as just one more interface. -
Page 21: Optional Storage
3.8 Optional storage The applications running in the second core of the device processor increase the features of the RM7000. To access said features, the device must have an internally-installed hard disk or an SD flash memory expansion. -
Page 22: Procedure To Install A Flash Memory Expansion Sd
3 Components and Power Supply bintec elmeg Placing the hard disk Fig. 24: (6) Finally, insert the tray into the device once again using the slot guides. Inserting the hard disk Fig. 25: (7) Screw the tray to the device. - Page 23 3 Components and Power Supply bintec elmeg Inserting SD card Fig. 27: RM7000...
-
Page 24: Compliance
4 Compliance bintec elmeg Chapter 4 Compliance 4.1 Manufacturer information Brand bintec Manufacturer bintec elmeg Country Germany Postal Address Suedwestpark 94 90449 Nuremberg Germany International Phone +49 - 911 - 9673 0 4.2 Safety warnings Connecting Discon- necting RM7000... -
Page 25: Weee Information
4 Compliance bintec elmeg 4.3 WEEE information The crossed-out wheelie bin symbol indicates that the device must be disposed of separately from normal domestic waste at the end of its useful service life. Please use an appropriate waste disposal facility. -
Page 26: Reach
Richtlinie 2014/35/EU (LVD) Richtlinie 2009/125/EG (ErP) Richtlinie 2011/65/EU (RoHS) des Europäischen Parlaments. Spanish (ES) Español Por la presente, bintec elmeg declara que el tipo de equipo de telecomunica- ciones RM7000 es conforme con: Directiva 2014/30/UE (EMC) Directiva 2014/35/UE (LVD) Directiva 2009/125/CE (ErP) Directiva 2011/65/UE (RoHS) del Parlamento Europeo y del Consejo. -
Page 27: Laser Product
4 Compliance bintec elmeg 4.7 Laser product Use only trained and qualified personnel to install or replace this device. Chose SFP+ transceivers that meet the following regulations: • Class 1 • Application of CE marking in accordance with the 2014/30/EU EMC and the 2014/35/EU Low Voltage Directives •... -
Page 28: Appendix A Technical Information
A.3 Connecting to the device A.3.1 Connecting using the local console (Aux connector) The RM7000 router has a RJ45 female connector on the front panel ( Aux.), which provides access to the device's local console. Aux Connector Fig. 30: To configure this, connect the Aux. -
Page 29: Connectors
Technical Information bintec elmeg Note The configuration for the terminal must be: - Speed: 9600 bps. - Eight data bits. - One stop bit. - No parity bit. - No type of flow control. Connection to the configuration port is done through the the RJ45 connector cable, supplied with the device, and an RJ45 female-DB9 female adaptor (also provided). -
Page 30: Wan Base-T Connector
Technical Information bintec elmeg A.4.2 WAN Base-T connector RJ45 WAN RJ45 PIN FE Signals GE Signals BI-DA+ BI-DA+ BI-DA- BI-DA- BI-DB+ BI-DB+ BI-DC+ BI-DC- BI-DB- BI-DB- BI-DD+ BI-DD- A.4.3 WAN SFP connector Standard SFP connector A.4.4 USB connector USB Type A... -
Page 31: Configuration Connector
Technical Information bintec elmeg A.4.5 Configuration connector RJ45 CONFIGURATION RJ45 PIN CONF A.5 Technical specifications A.5.1 Hardware architecture PROCESSORS Freescale QorIQ. MEMORY 1 Gbyte in SDRAM. STORAGE UNIT FLASH Memory (32 Mbytes). A.5.2 LAN interface PROTOCOLS Ethernet (802.3). PORTS 8-port switch managed with MDI/MDX auto-detection. -
Page 32: Wan Sfp Interface
Technical Information bintec elmeg A.5.4 WAN SFP interface STANDARDS 802.1Q (VLAN). 1000-Base-X. SPEED 1000 Mbps full duplex. TYPES LX/LH (single-mode 1310 nm). SX (multi-mode 850 nm). ZX (single-mode 1550 nm). CONNECTOR Standard SFP connector. A.5.5 USB interface 3G USB MODEMS Please visit the bintec website http://www.bintec-elmeg.com for a list of supported... -
Page 33: Environmental Specifications
Technical Information bintec elmeg A.5.9 Environmental specifications TEMPERATURE OPERATING NORMALLY: 0 ºC to 40 ºC. STORED: -25 ºC to 70 ºC. RELATIVE HUMIDITY On: 5 % to 90 %. RM7000...
