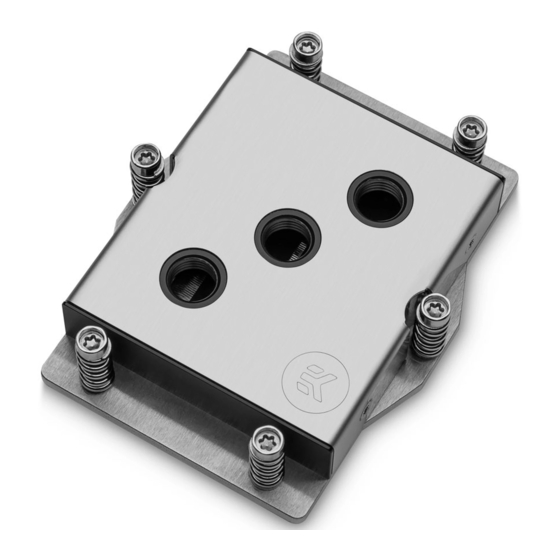

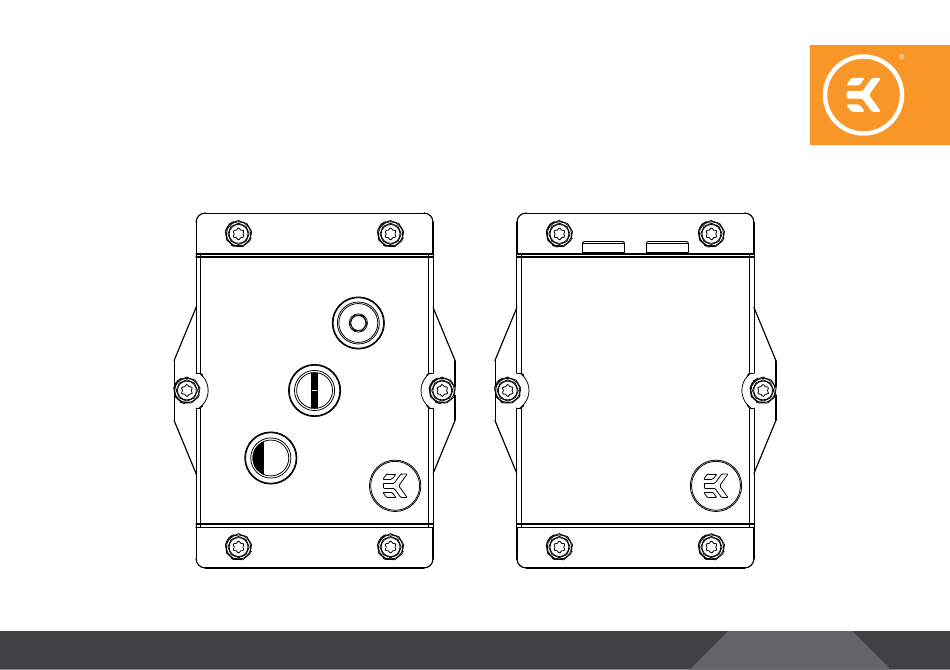

- Page 1 EK-Pro CPU Water Block SP5 SP5 NI + POM-C | SP5 AL + POM-C | SP5 RACK NI + POM-C | SP5 RACK AL + POM-C USER GUIDE...
- Page 2 Please note the installation of the product is intended to be undertaken by an adequately trained and experienced person. You are installing the product at your own risk. If you are not properly trained or experienced or feel unsure about the installation procedure, please refrain from installing the product yourself and contact our tech support for assistance.
-
Page 3: Table Of Contents
TABLE OF CONTENTS GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY BOX CONTENTS TECHNICAL SPECIFICATIONS AND PRODUCT PARTS INSTALLING THE WATER BLOCK CLEANING THE CPU INSTALLING THE WATER BLOCK ASSEMBLY INSTALLING THE FITTINGS TESTING THE LOOP SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: General Information On Water Block Compatibility
GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY This CPU liquid cooling unit is pre-assembled for use with modern AMD server socket-type motherboards. By default (out of the box), this water block supports the following CPU sockets: - AMD® Socket SP5 - 4 -... -
Page 5: Box Contents
BOX CONTENTS Mounting Mechanism EAN: 106401 EK-TIM Ectotherm (1g) EK-Loop Multi Allen Key (6 mm, 8 mm, 9 mm) (1 pc) EK-Pro CPU Water Block SP5 Allen Key 5 mm (1 pc) Torx T20 (1 pc) - 5 -... -
Page 6: Technical Specifications And Product Parts
TECHNICAL SPECIFICATIONS AND PRODUCT PARTS The following items are enclosed with each EK-Pro SP5 water block, depending on the version: EK-Pro SP5 CPU water block 3831109904077 Ni + POM-C: Position EAN Description Quantity 105819 CPU COLDPLATE Nickel 105813 TOP ACETAL 103759 M3 x 18 ISO 14583 Screw 104307... - Page 7 3831109904091 Al + POM-C: Position EAN Description Quantity 105820 CPU COLDPLATE ALU 105813 TOP ACETAL 103759 M3 x 5 ISO 14581 Screw 104307 SEALING GASKET 72 x 2 EPDM70 3831109904121 EK - MOUNTING PLATE 105815 JET PLATE ALU 105816 TOP COVER 103089 M3 x 5 ISO 14581 Screw 3831109890639 EK - ALU Plug G1/4 - Elox Black...
-
Page 8: Installing The Water Block
INSTALLING THE WATER BLOCK STEP 1 CLEANING THE CPU Wipe the CPU’s contact surface (by using non–abrasive cloth or Non-abrasive Q-tip). Applying thermal compound: on a clean IHS, apply a line of Cloth thermal compound and spread it over the whole CPU heat spreader (IHS) with a credit card or equivalent. -
Page 9: Installing The Fittings
STEP 3 INSTALLING THE FITTINGS CLAMP Carefully identify the direction of the flow in your circuit. For the non-rack version, EK recommends the use of EK-HFB 10 mm barb INLET fittings and EK-Tube ZMT 10/16 mm Matte Black tubing. For the rack BARB OUTLET version, EK-HFB Fitting 6 mm G1/8 and EK-Tube ZMT 6/9mm Matte... -
Page 10: Testing The Loop
TESTING THE LOOP To ensure the installation of EK components was successful, we recommend you perform a 24-hour leak test. When your loop is complete and filled with coolant, connect the pump to a PSU outside your system. Do not connect power to any of the other components. -
Page 11: Support And Service
SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND PRODUCT PARTS” where you can find the EAN number of each part you might need.
