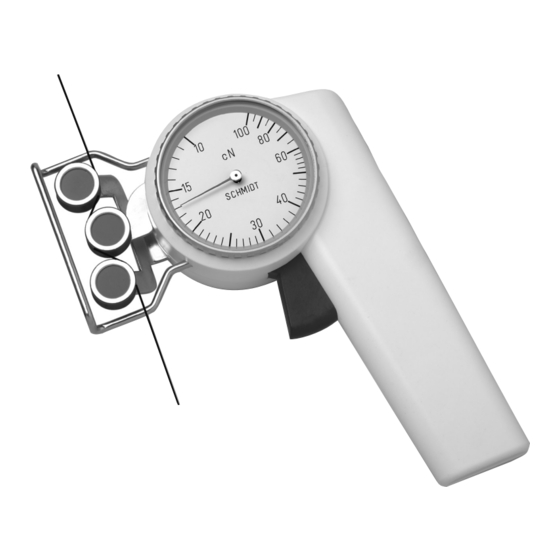

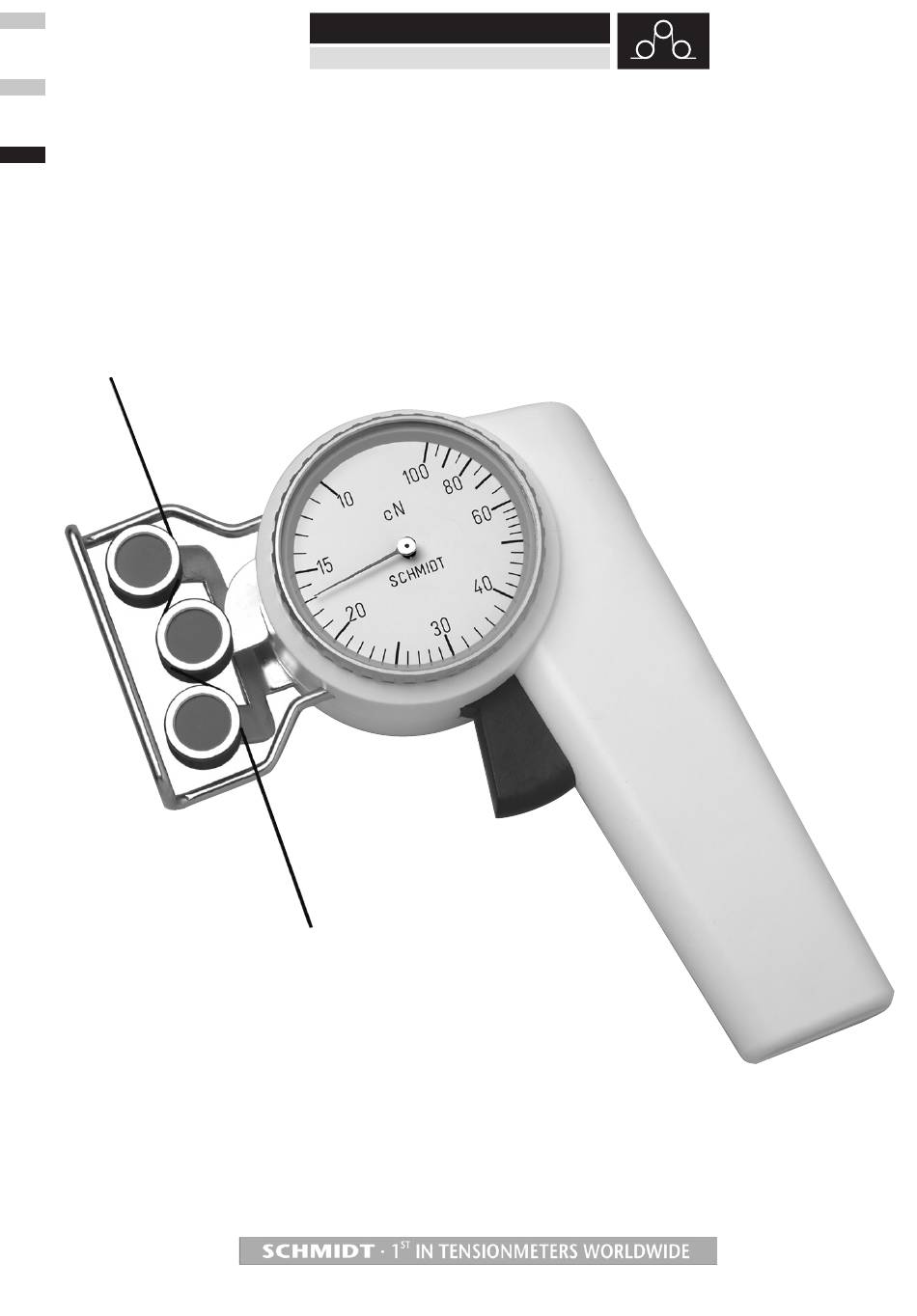

- Page 1 S C H M I D T c o n t r o l i n s t r u m e n t s Edition ZD2 04.2.E Z Series Model Instruction Manual Valid as of: 01.06.2007 • Please keep the manual for future reference!
-
Page 2: Table Of Contents
Contents 1 Warranty and liability ....................3 1.1 Notices within the instruction manual ..............3 1.2 Responsibilities of the operating company ............. 3 1.3 Responsibilities of the personnel ................3 1.4 Informal safety measures ..................4 1.5 Training of the personnel ..................4 1.6 Intended use ...................... -
Page 3: Warranty And Liability
Warranty: - SCHMIDT tension meters are warranted for 12 months. Parts subject to wear, electronic components and measuring springs are not covered by the warranty. No warranty or liability will be accepted for bodily injury or property damage resulting from one or several of the following causes: - Misuse or abuse of the device. -
Page 4: Informal Safety Measures
The device is intended exclusively to be used as a tension meter. Any other use or any use exceeding this intention will be regarded as misuse. Under no circumstances shall Hans Schmidt & Co GmbH be held liable for damage resulting from misuse. The intended use also includes: - Complying with all notices included in the instruction manual and observing all inspection and maintenance works. -
Page 5: Available Models
Available models These instruction manual refer to model ZD2 of the Z series. The individual models of the Z Series are also available with the following modifications (customized versions): - Special tension ranges - Calibration for material path other than standard (vertical) -
Page 6: Delivery Includes
3.3 and correct the position of the outer ring. The ID plate with the serial number as well as the calibration label (optional) are provided on the rear side of the instrument, the SCHMIDT Quality Seal is provided on the front side. -
Page 7: Operating Elements Of The Tension Meter
3.2 Operating elements of the tension meter Outer Material Material to be Filament rollers to be measured guide measured Measuring roller Measuring roller Outer Scale rollers Trigger fig. 3.2b fig. 3.2a 3.3 Measuring with the tension meter Inserting: - Push the trigger as far as it will go in the direction of the arrow to extend the outer rollers. - Keeping the outer rollers extended, bring the instrument behind or under the filament and move it so that the filament guide bars contact the material to be measured (see fig. -
Page 8: Checking The Measuring Accuracy
2. Any difference in process material size and rigidity from the standard material may cause a deviation of the accuracy. In 95 % of all industrial applications the SCHMIDT calibration has been proven to provide the best results and is used for comparative purposes. -
Page 9: Service And Maintenance
The question of finding the right frequency of calibration accuracy verification depends on several different factors: Operating time and load of the SCHMIDT tension meter Tolerance band defined by the customer Changes of the tolerance band compared to previous verifications of calibration Therefore, the interval between verifications must be determined by the user`s Quality As- surance Department based on the user`s experience. -
Page 10: Verification Of Calibration And Determination Of Repair Costs
6.1 Verification of calibration and determination of repair costs Flow chart for verifying the calibration of used tension meters, incoming and outgoing veri- fication with Inspection Certificate 3.1 according to DIN EN 10204 Delivery Visual inspection and functional test Unit can be Vertification of the calibrated calibration... -
Page 11: Correspondence
Please indicate in your order whether you require an Inspection Certificate 3.1 according to DIN EN 10204. Service address: Hans Schmidt & Co GmbH Schichtstr. 16 D-84478 Waldkraiburg Germany... - Page 12 Yarn Package Durometer and Shore Durometer Sample Cutter Balance Moisture Meter Leak Tester More than 75 years - Worldwide - Hans Schmidt & Co GmbH Mailing address: P. O. B. 11 54 Phone: e-mail: 84464 Waldkraiburg Germany int. + 49 / (0)8638 / 9410-0 info@hans-schmidt.com...
