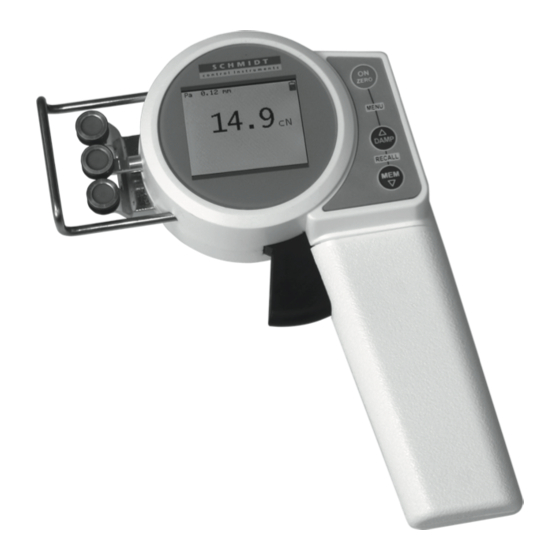

- Page 1 S C H M I D T c o n t r o l i n s t r u m e n t s Edition ZE 01.E ZE Series Model Instruction Manual Valid as of: 01.04.2021 • Please keep the manual for future reference!
-
Page 2: Table Of Contents
Contents 1 Warranty and liability ....................3 1.1 Notices within the operating instructions ..............3 1.2 Responsibilities of the operating company ............. 3 1.3 Responsibilities of the personnel ................3 1.4 Informal safety measures ..................4 1.5 Training of the personnel ..................4 1.6 Intended use ...................... -
Page 3: Warranty And Liability
Warranty: - SCHMIDT tension meters are warranted for 12 months. Parts subject to wear, electronic components and measuring springs are not covered by the warranty. No warranty or liability will be accepted for bodily injury or property damage resul- ting from one or several of the following causes: - Misuse or abuse of the device. -
Page 4: Informal Safety Measures
The device is intended exclusively to be used as a tension meter. Any other use or any use exceeding this intention will be regarded as misuse. Under no circumstances shall HANS SCHMIDT & Co GmbH be held liable for damage resulting from misuse. The intended use also includes: - Complying with all notices included in the Operating Instructions and observing all inspection and maintenance works. -
Page 5: Available Models
2 Available Models The individual models of the ZE Series are also available with the following modifications (customized versions): - Calibration to different materials *Measuring Tension Range **SCHMIDT Model Head Width Calibration Material ZEF-50 0.5 - 50.0 PA: 0.12 mm Ø... -
Page 6: Connecting The Tension Meter
The requirements of the CE specification are only complied with if the tension meter is equipped and operated with equipment supplied by HANS SCHMIDT & Co GmbH. Certification to the CE specification does not extend to, and shall be invalid for any other combination. For damage resulting the- reby we assume no liability. -
Page 7: Operations
100 % may cause permanent damage to the measuring spring and must be avoided under any circumstances. The ID plate with the CE mark and the serial number, the calibration label (op- tional) as well as the SCHMIDT Quality Seal are provided on the backside of the instrument. SCHMIDT Quality Seal... - Page 8 3.2 Operating and display elements Numeric display Info on material Battery status indicator Data stored in the memory Damping Current reading Measurement unit MIN/MAX Alarm Display with bargraph Info on material Battery status indicator Data stored in the memory Damping Current reading Current reading as bar graph...
-
Page 9: Setup
3.2 Operating and display elements Graphic display Battery status indicator Info on material Data stored in the memory Damping Tension range Measured values Measurement unit as graph Readings Measured values length of the between the time axis alarm values In the display mode, the different displays can be switched through by pressing simultaneously Setup The tension meter is delivered with a built-in rechargeable LiPo battery, which has been... -
Page 10: Charging The Battery
Before you connect the AC adapter, verify that the supply voltage is correct (100 V - 240 V). HANS SCHMIDT & Co. GmbH provides no warranty or liability for any damage resulting from the use of AC adapters from other manufacturers. - Page 11 3.4 Tension meter settings Main Menu Settings Menu Description To select a material characteristic for the measure- ment. In addition, a calibration can be executed for the Material selected material characteristic, as well as a name and limit values can be defined in the material setup menu.
-
Page 12: Material Setup Menu
3.4.1 Material setup menu In the material setup menu you can make the settings for the selected material characteristics and perform the calibration. To perform the calibration, the weights for the selected calibration points must be available. Material Setup Submenu Settings Menu Description Name of the... -
Page 13: Operation Procedure
Operation procedure Requirements: - Switch the tension meter on (chapter 3.3) - Define the required tension meter settings (chapter 3.4) - Select the desired material characteristic (chapter 3.4) - Bring the tension meter into the desired measuring position and carry out a zero adjustment as described in chapter 3.5.1, if required. -
Page 14: Inserting And Removing Material To Be Measured
3.5.2 Inserting and removing material to be measured Material to Measuring Display be measured roller Filament guide ON/ZERO key Guide DAMP key rollers MEM key Thumbpiece fig. 3.5.2 To insert the process material: - Push the thumbpiece as far as it will go in the direction of the arrow to extend the guide rollers. -
Page 15: Damping
3.5.3 Damping Feature to be used for tensions that vary strongly In the Damping menu (chapter 3.4.1), you can specify a damping factor. Back in the display mode, press the button to activate or deactivate the damping function. This is recommended if the displayed values vary strongly. -
Page 16: Creating A Material Characteristic
The material and dia- meter is given in chapter 2. Factory calibrations using customer supplied materials follow the same procedure. In this case, however, the calibration on Schmidt material 1 is omit- ted. fig. 3.6.1 shows a measuring setup for the calibration. -
Page 17: Calibration Procedure
10 %, 50 %, and 90 % of the measuring range. In 95 % of all industrial applications, the SCHMIDT calibration has been proven to provide the best results. In particular, it is suitable for comparative purposes. - Page 18 3.6.2 Calibration procedure Step 1: Set the calibration points and weights, e.g. in Newton using the calibration points 10 %, 50 %, and 90 % of full scale Start: Select the Start menu item. Alternative calibration points: 5 %, 45 %, 90 % 10 %, 45 %, 90 % 5 %, 50 %, 90 % 5 %, 25 %, 70 %...
-
Page 19: Verifying The Calibration
The diameter and ma- terial is given in chapter 2. Calibrations of the tension meter are performed according to the SCHMIDT factory procedure using weights that correspond to 10 %, 50 % and 90 % of the measuring range. -
Page 20: Memory Functions
Memory functions You can store and display the statistics of the last 128 measuring values (last measured value, the average, the minimum and maximum measured values as well as the stan- dard deviation). In addition, the measured values are displayed as a graph. Save data - When pressing the button the display will freeze (The display shows MEM,... -
Page 21: Service And Maintenance
6 Verification interval The question of finding the right frequency of calibration accuracy verification depends on several different factors: Operating time and load of the SCHMIDT tension meter Tolerance band defined by the customer Changes to the tolerance band compared to previous calibrations ... -
Page 22: Verification Of Calibration And Determination Of Repair Costs
7 Verification of Calibration and Determination of Repair Costs Flow chart for verifying the calibration of used tension meters, incoming and outgoing verification with Inspection Certificate 3.1 according to DIN EN 10204 Delivery Visual inspection and functional test Unit can be Vertification of the calibrated calibration... -
Page 23: Correspondence
Please indicate in your order whether you require an Inspection Certificate 3.1 according to DIN EN 10204. Service address: HANS SCHMIDT & Co GmbH Schichtstr. 16 D-84478 Waldkraiburg Germany... - Page 24 Yarn Package Durometer and Shore-A Durometer Sample Cutter Balance Moisture Meter Leak Tester Softometer More than 70 years - Worldwide - Hans Schmidt & Co GmbH Mailing address: Phone: e-mail: P. O. B. 1154 int. + 49 / (0)8638 / 9410-0 info@hans-schmidt.com...
