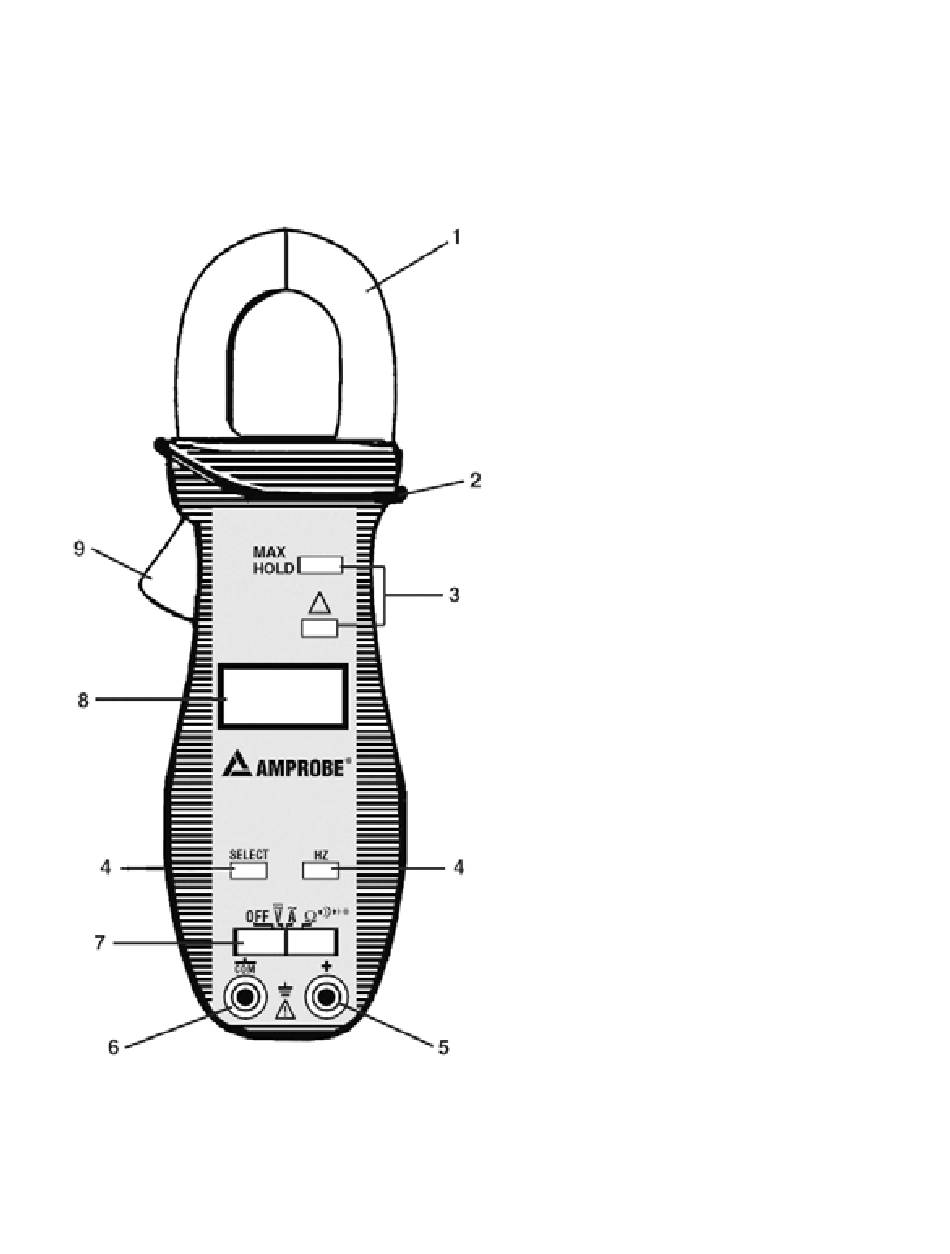

3) PRODUCT DESCRIPTION

This user's manual uses only representative model(s) for illustrations. Please refer
specification details for function availability to each model.
1) Transformer Jaw Clamp for AC
current magnetic field pick up
2) Hand/Finger Barrier to indicate the
limits of safe access of the meter
during measurement
3) Push-buttons for special functions &
features
4) Push-buttons for special functions &
features on Slide-switch Selector
functions
5) Input Jack for all functions EXCEPT
non-invasive ACA current function
6) Common (Ground reference) Input
Jack for all functions EXCEPT
non-invasive ACA current function
7) Slide-switch Selector to turn the
display power ON/OFF and Select a
function
8) 3-3/4 digits 4000 counts LCD display
9) Jaw trigger
transformer clamp jaw
for opening the
4
