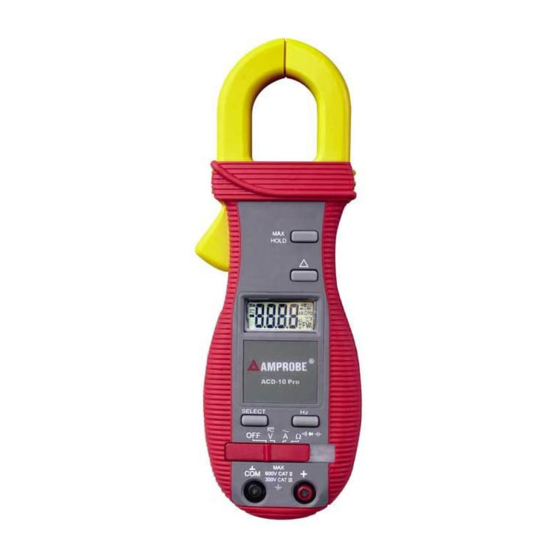

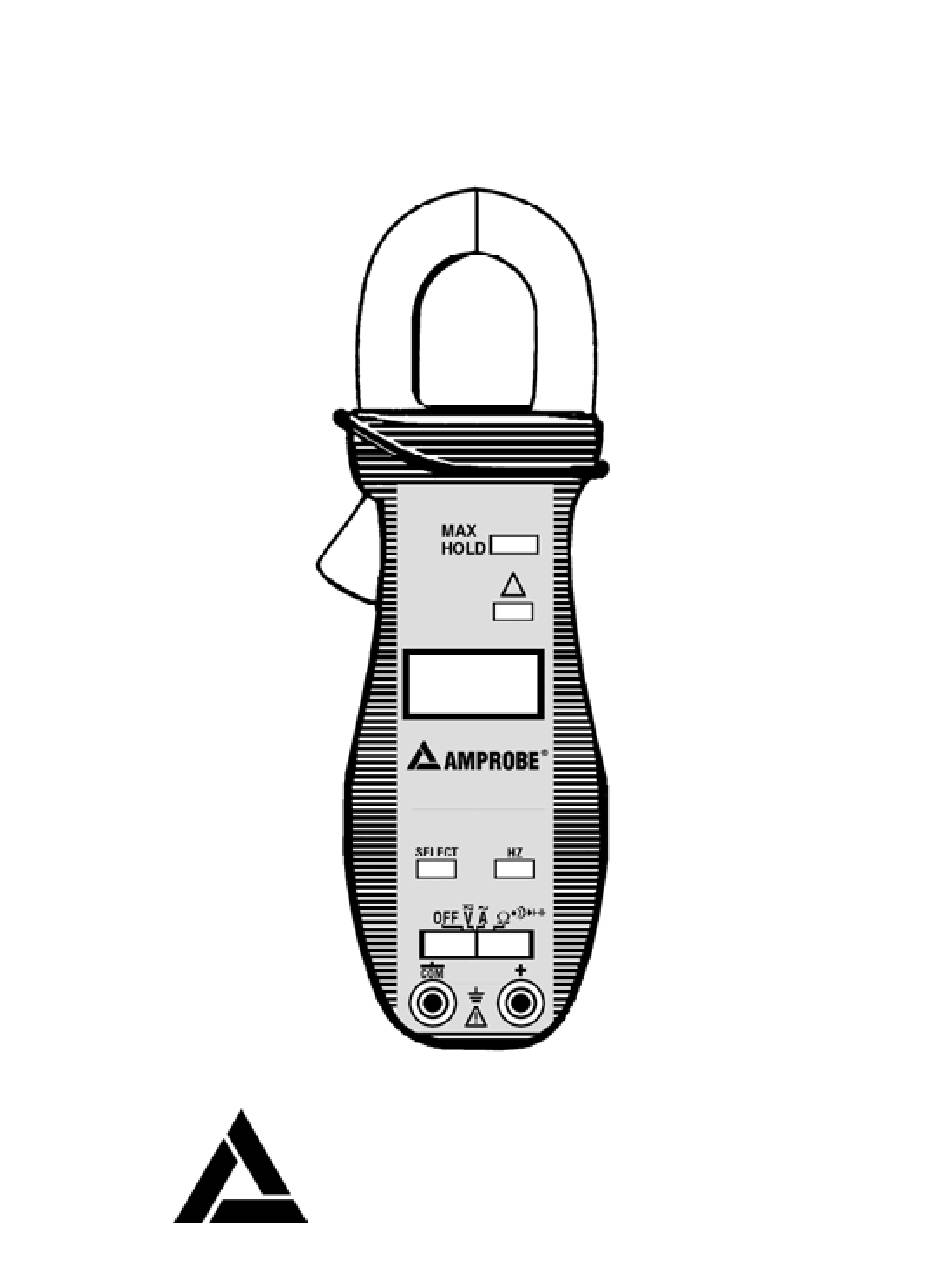

- Page 1 INSTRUCTION MANUAL ACD-10 PRO & TRMS PRO ® AMPROBE...
- Page 2 Congratulations! You are now the owner of an AMPROBE Instrument. It has been quality crafted according to quality standards and contains quality components and workmanship. This instrument has been inspected for proper operation of all of its functions. It has been tested by qualified factory technicians according to the long-established standards of AMPROBE.
-
Page 3: Terms In This Manual
TERMS IN THIS MANUAL WARNING identifies conditions and actions that could result in serious injury or even death to the user. CAUTION identifies conditions and actions that could cause damage or malfunction in the instrument. WARNING To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. The meter is intended only for indoor use. -
Page 4: International Electrical Symbols
INTERNATIONAL ELECTRICAL SYMBOLS Caution ! Refer to the explanation in this Manual Caution ! Risk of electric shock Earth (Ground) Double Insulation or Reinforced insulation Fuse AC--Alternating Current DC--Direct Current 2) CENELEC Directives The instruments conform to CENELEC Low-voltage directive 73/23/EEC and Electromagnetic compatibility directive 89/336/EEC. -
Page 5: Product Description
3) PRODUCT DESCRIPTION This user's manual uses only representative model(s) for illustrations. Please refer specification details for function availability to each model. 1) Transformer Jaw Clamp for AC current magnetic field pick up 2) Hand/Finger Barrier to indicate the limits of safe access of the meter during measurement 3) Push-buttons for special functions &... -
Page 6: Operation
4) OPERATION DC Voltage, AC Voltage, Hz Frequency functions Inputs are made through the test leads terminals. Slide-switch on defaults at DC voltage. Press SELECT button momentarily to select AC voltage. Press the Hz push-button momentarily to activate Hz Frequency function in the following slide-switch functions: DCV &... - Page 7 Note: DC 400.0mV range is designed with 1000MΩ high input impedance for least current drain in measuring small signals, and can cope better with most commercially available voltage output transducers/adapters. The non-zero display reading is normal when the meter inputs are open circuit, which will not affect actual measurement accuracy.
- Page 8 CAUTION Measuring Resistance, Continuity, Diode or Capacitance function on a live circuit will produce false results and may damage the instrument. In many cases the suspected component must be disconnected from the circuit to obtain an accurate measurement reading.
- Page 9 Ω Resistance, and Continuity functions Inputs are made through the test leads terminals. Slide-switch on defaults at Ω. Press SELECT button momentarily to select Continuity function which is convenient for checking wiring connections and operation of switches. A continuous beep tone indicates a complete wire.
- Page 10 ACA Current clamp-on function Inputs are made through the jaws clamps for non-invasive ACA current measurements. CAUTION Press the jaw trigger and clamp the jaws around only one single conductor of a circuit for load current measurement. Make sure the jaws are completely closed, or else it will introduce measurement errors.
-
Page 11: Maintenance
HOLD The hold feature freezes the display for later viewing. Press the HOLD button momentarily to activate or exit this feature. The max feature compares and displays the measured maximum value as fast as 30ms with auto-ranging capability. Press the MAX button for 1 second or more to activate or exit the max feature in the following functions: DCV, ACV &... - Page 12 Battery replacement The meters use standard 3V alkaline button battery (ANSI/NEDA-5004LC, IEC-CR2032). In models ACD-10 PRO & ACD-10 TRMS PRO, one battery are used. Loosen the two screws from the case bottom and remove the bottom case. Slide the battery out the side of the holder and replace with a new battery (observe polarity).
- Page 13 Sensing : Average sensing for ACD-10 PRO. True RMS for ACD-10TRMS PRO Safety : Meets IEC61010-2-032 (1994), EN61010-2-032 (1995), UL3111-2-032 (1999) For ACD-10 PRO/TRMS PRO: Category II 600 Volts AC & DC, and Category III 300 Volts AC & DC Transient protection : 6.5kV (1.2/50µs surge) for all models...
- Page 14 DC Voltage: ACD-10 PRO/TRMS PRO AC CURRENT: ACD-10 PRO/TRMS PRO RANGE Accuracy RANGE Accuracy 400.0mV 0.3% + 4d 50Hz / 60Hz 4.000V, 40.00V, 0.5% + 3d 40.00A 1.9% + 8d 400.0V 400.0A 1.9% + 8d* 600V 1.0% + 4d 600A** unspecified NMRR : >50dB @ 50/60Hz...
-
Page 16: Limited Warranty
LIMITED WARRANTY Your AMPROBE instrument has a limited warranty against defective materials and/or workmanship for one year from the date of purchase provided that, in the opinion of the factory, the instrument has not been tampered with or taken apart.
