- Page 1 ACD-6 PRO ACD-6 TRMS-PRO Professional 1000A Clamp Meters Users Manual...
-
Page 2: Acd-6 Pro Acd-6 Trms-Pro Professional 1000A Clamp Meters
ACD-6 PRO ACD-6 TRMS-PRO Professional 1000A Clamp Meters Users Manual ACD6PRO_Rev002 © 2013 Amprobe Test Tools. All rights reserved. - Page 3 Limited Warranty and Limitation of Liability Your Amprobe product will be free from defects in material and workmanship for 1 year from the date of purchase. This warranty does not cover fuses, disposable batteries or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.

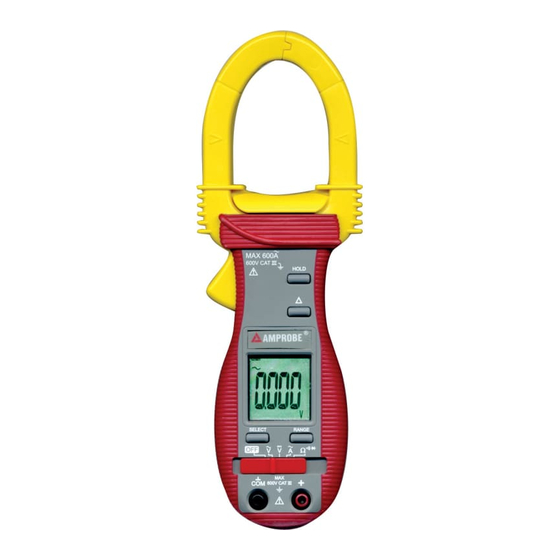

- Page 4 ➊ Transformer Clamp Jaw for AC current magnetic field pick up ➋ Hand/Finger Barrier to indicate the limits of safe access of the meter during measurement ➌ Push-buttons for special functions & features ➍ Input Jack for all functions except ACA current ➎...
-
Page 5: Table Of Contents
ACD-6 PRO / ACD-6 TRMS-PRO Professional 1000A Clamp Meters CONTENTS Symbols .............................5 Safety Information ...........................5 Unpacking and Contents .........................6 Introduction ............................6 Operation ............................6 Manual or Auto-ranging ......................6 Auto Power Off (APO) ........................7 HOLD � Function ........................7 ∆ Relative mode ........................7 Measuring DC Voltage (see Fig. -
Page 6: Symbols
SAfETy INfORMATION • The ACD-6 PRO and ACD-6 TRMS-PRO Digital Clamp meters conform to IEC/EN/UL 61010-1 Ed. 3.0; CAN/CSA C22.2 No.61010-1-12 Ed. 3.0 to Measurement Category III 600 V, class II, pollution degree 2; IEC/EN 61010-2-032 Ed. 3.0; IEC/EN 61010-2-033 Ed. 1.0 and IEC/EN 61010-031 Ed. -
Page 7: Unpacking And Contents
If any of the items are damaged or missing, immediately return the complete package to the place of purchase for an exchange. INTRODUCTION The ACD-6 PRO or ACD-6 TRMS-PRO Clamp-On meters are autoranging 1000 ACA / 600 V clamp meter. The features include AC / DC voltage, AC current, Resistance, Continuity, Diode and Continuity tests. -
Page 8: Auto Power Off (Apo)
Auto Power Off (APO) The Auto Power Off (APO) feature will set the meter to sleep mode after approximately 30 minutes of no activity to extend battery life. Wake up the meter from APO, by set the slide- switch to the OFF and back to the desired function. HOLD �... -
Page 9: Testing For Continuity (See Fig. 2)
6. Read the display. If 0L appears on the highest Range, the resistance is too large to be measured or the circuit is an open circuit. Testing for Continuity (See fig. 2) 1. Set the Function Switch to Ω and press the SELECT button until � is displayed. 2. - Page 10 Update Rate: 3 per second nominal Polarity: Automatic Power Supply: One 3V coin battery (ANSI/NEDA-5004LC, IEC-CR2032) Power Consumption: ACD-6 PRO: 2.2 mA typical; ACD-6 TRMS-PRO: 2.8mA typical Low Battery: Below approx. 2.4V APO Timing: Idle for 30 minutes APO Consumption: 40μA typical on all model functions except that 190μA typical on ACD-6 TRMS-PRO voltage &...
- Page 11 Overload protection: 600 Volts ac & dc. Transient protection : 6kV (1.2/50μs surge) AC Voltage Range frequency Accuracy 400.0mV 50Hz – 500Hz ± (4.0% rdg + 5d) 4.000V, 40.00V, 400.0V 50Hz – 60Hz ± (2.0% rdg + 5d) 4.000V, 40.00V, 400.0V 60Hz –...
- Page 12 Resistance Range Accuracy 400.0Ω ± (1.5% rdg + 6d) 4.000, 40.00, 400.0kΩ ± (1.0% rdg + 4d) 4.000MΩ: ± (1.5% rdg + 4d) 40.00MΩ: ± (2.5% rdg + 4d) Open Circuit Voltage: 0.4VDC typical Overload protection: 600 Volts ac & dc. Audible Continuity Tester Open Circuit Voltage: 0.4VDC typical Range: 400.0Ω;...
- Page 13 Fig. 1: DC voltage and AC voltage functions...
- Page 14 Fig. 2: Resistance, Continuity, Diode...
- Page 15 Fig. 3: ACA Current...
- Page 16 Fig. 4: Battery replacement...
- Page 17 Visit www.Amprobe.com for • Catalog • Application notes • Product specifications • User manuals Please Recycle...
