- Page 1 ACD-3300 IND ACDC-3400 IND CAT IV Industrial True RMS Clamp Meters Users Manual • Mode d’emploi • Bedienungshandbuch • Manuale d’Uso • Manual de uso • Användarhandbok 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 2: Cat Iv Industrial True Rms Clamp Meters
ACD-3300 IND ACDC-3400 IND CAT IV Industrial True RMS Clamp Meters Users Manual ACD3300ACDC3400_Rev001 © 2009 Amprobe Test Tools. All rights reserved. 1.888.610.7664 www.calcert.com sales@calcert.com... - Page 3 Amprobe’s warranty obligation is limited, at Amprobe’s option, to refund of the purchase price, free of charge repair, or replacement of a defective product . Resellers are not authorized to extend any other warranty on Amprobe’s behalf.

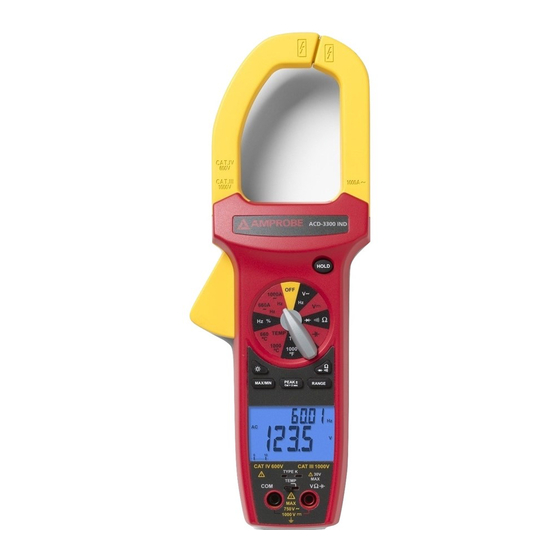

- Page 4 CAT IV 600V CAT III 1000V K-TYPE W 30V TEMP VeHzE 750V B 750V B 1000V F 1000V F ACD-3300 IND ACDC-3400 IND ➊ Jaws for Current tests ➋ HOLD button ➌ Function selection knob ➍ Auxiliary feature buttons ➎...
-
Page 5: Table Of Contents
ACD-3300 IND / ACDC-3400 IND CAT IV Industrial True RMS Clamp Meters CoNTENTS Symbols ..........................5 Safety Information ........................ 5 Warnings and Precautions ..................5 Unpacking and Contents ...................... 6 Introduction ........................... 6 AUXILIARY FEATURES ......................6 PEAK+/- Push button ....................... 6 MAX/MIN Button ...................... -
Page 6: Symbols
permitted SAfETy INfoRMATIoN • The ACD-3300 IND and ACDC-3400 IND Digital Clamp meters conform to EN61010-1:2001; EN61010- 2-032:2002; CAT IV 600 V, CAT III 1000 V, class II and pollution deg. 2. EMC: conforms to EN61326-1. • Each instrument is EN61010-1 certified for Installation Category IV (600V). It is recommended for primary supply lines, overhead lines and cable systems. -
Page 7: Unpacking And Contents
INTRoDUCTIoN The ACD-3300 IND and ACDC-3400 IND True RMS Clamp-On meters are autoranging to 1000 ACA and 750 VAC / 1000 VDC. Their features include AC / DC voltage, AC / DC current (ACDC-3400 IND), Frequency, Duty Cycle, Diode, Resistance, Capacitance, Continuity tests plus Relative (ACDC-3400 IND). -
Page 8: Zero (Relative) Measurements (Acdc-3400 Ind Only)
ZERo (Relative) Measurements (ACDC-3400 IND only) The Relative mode displays the difference between the actual reading and a reference value. It may be used with any function or range. To make a relative measurement first establish a reference value by measuring a value and then pressing the button after the reading has stabilized. -
Page 9: Frequency Measurement / % Duty Cycle (See Fig. 2)
Diode Testing (See fig. 5) Set the Function knob to the “ “ position. Use the ‘Ω’ button to select diode test (ACD-3300 IND only). Connect the red test lead to the “V Ω” jack and the black test lead to the “COM”... -
Page 10: Temperature Measurement (Acd 3300 Ind Only) (See Fig. 6)
Reverse probes. If the diode is good, “OL” is displayed. If the diode is shorted, “0.00” or another number is displayed. If the diode is open, “OL” is displayed in both directions. Audible Indication: Less than 30 Ω. Temperature Measurement (ACD 3300 IND only) (See fig. 6) Verify the location being tested is not electrically energized. -
Page 11: Electrical
Battery life: typically 75 hours with carbon-zinc; 150 hour with alkaline. Dimensions: ACDC-3400 IND: 281 x 108 x 53 mm (11.1 x 4.3 x 2.1 in.) ACD-3300 IND: 279 x 103 x 53 mm (11 x 4.1 x 2.1 in.) Weight: ACDC-3400 IND: 559 gm ( 1.23 lb.) ACD-3300 IND: 500 gm ( 1.10 lb.) - Page 12 Accuracy 66.00A*, 660.0A,1000A 50 to 400 Hz ± (3.0% rdg + 200 dgts) * ACD-3300 IND only ** Frequency: 10% to 100% of current range AC coupled TRMS: 5% to 100% of range Crest factor: ≤ 3 Overload protection: 1000A AC...
- Page 13 66ηF, 6.600μF, 66.00μF,660.0μF ±(3.0% rdg + 10 dgts) 6.6 mF ±(5.0% rdg + 10 dgts) Overload protection: 1000 VDC or 750 VAC rms TEMPERATURE (ACD-3300 IND only) Range Accuracy 0.0°C to 400.0°C ± (1.0% + 1°C) -35.0°C to 0.0°C, 400°C to 1000°C ±...
- Page 14 CONTINUITY Ranges: 660.0 Ω Audible indication: < 30 Ω Response time: 500 ms Overload protection: 1000 VDC or 750 VAC rms FREQUENCY (Auto ranging) Range Accuracy 66.00 Hz, 660.0 Hz, 6.600k Hz, 66.00 kHz, 660.0 kHz, ± (0.1% rdg + 5 dgts) 1.000 MHz Sensitivity: 10 Hz to 1 MHz: >...
- Page 15 HOLD 1000A 660A 1000 Δ ZERO MAX/MIN PEAK ± RANGE CAT IV 600V CAT III 1000V VeHzE 750V B 1000V F Fig 2. Voltage \ Frequency \ Duty Cycle HOLD 1000A 660A 1000 A 600 A Δ ZERO PEAK ± MAX/MIN RANGE CAT IV 600V...
- Page 16 HOLD 1000A 660A 1000 Δ ZERO PEAK ± MAX/MIN RANGE µ F CAT IV 600V CAT III 1000V VeHzE 750V B 1000V F Fig 4. Capacitance HOLD 1000A 660A Δ ZERO PEAK ± MAX/MIN RANGE kΩ CAT IV 600V CAT III 1000V VeHzE 750V B 1000V F...
- Page 17 1000 ºF ºF PEAK ± MAX/MIN RANGE Cal > 2 sec RANGE °F CAT IV 600V CAT III 1000V K-TYPE W 30V TEMP 750V B 1000V F Fig 6. Temperature (ACD-3300 IND only) Fig 7. Battery Replacement 1.888.610.7664 www.calcert.com sales@calcert.com...
