Apply Power to your BASIC Module and BASIC-T Modules
Once you have installed your BASIC module or BASIC-T module in your SLC 500
chassis, you are ready to apply power to your SLC 500 system and begin
programming.
Configure the BASIC Module and BASIC-T Module
Your BASIC module or BASIC-T module can be programmed using an ASCII
terminal or ASCII terminal emulation software. You can also use a personal
computer with the BASIC Development Software (cat. no. 1747-PBASE). Use an
ASCII terminal to enter a BASIC program one line at a time. Use a personal
computer with the BASIC development software to create a BASIC program that is
then downloaded to your module. Typical configurations are shown in Figure 14.

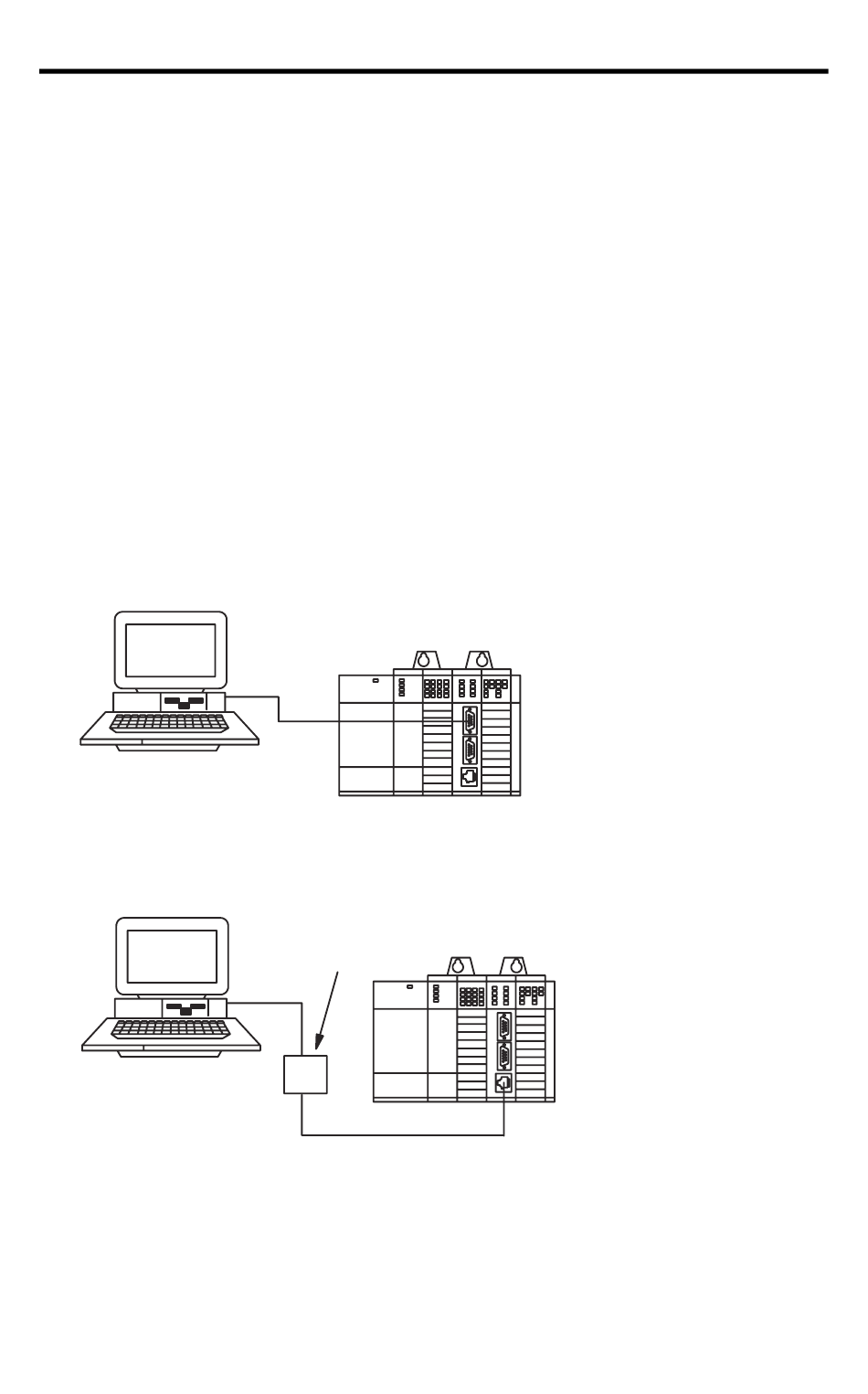

Figure 14 Module Configurations
ASCII Terminal or PC with
BASIC Development Software
PC with
BASIC Development Software
Null Modem Cable
to RS-232 Port
Interface/Converter
RS-232 to RS-485
Cat. No. 1747-PIC
1747-C10 Cable
SLC 500 BASIC and BASIC-T Modules
SLC 500 Controller
with BASIC or BASIC-T Module
SLC 500 Controller
with BASIC or BASIC-T Module
Publication 1746-IN009B-EN-P - August 2005
19
