- Page 1 ELECTRIC SPRAYER USER MANUAL...
- Page 2 ELECTRIC SPRAYER KF-16C-48 NEED HELP? CONTACT US! Have product questions? Need technical support? Please feel free to contact us: CustomerService@vevor.com This is the original instruction,Please read all manual instructions carefully before operating. V EVOR reserves clear interpretation of our user manual. The appearance of the product shall be subject to the product you received.Please forgive us that we won't inform you again if there is any...
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS ! For your safety and the safety of others, the following precautions must be observed when operating the sprayer: 1. During spraying operation, the personnel shall wear clothes in strict accordance with the regulations, wear masks, glasses, hats, gloves, or protective clothing against pesticide penetration, and shall not work naked. -
Page 4: Structure Diagram

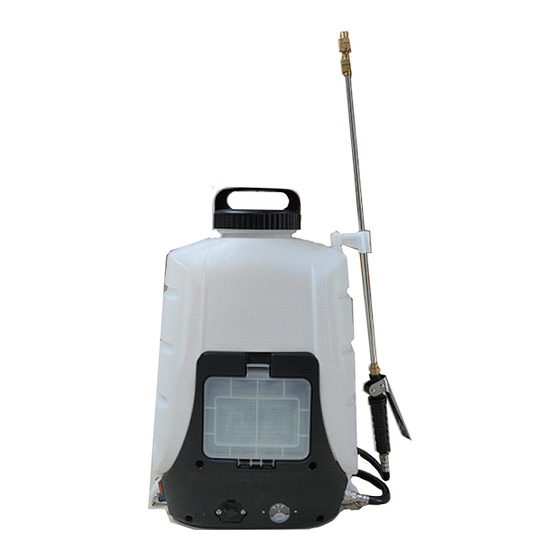

MODEL AND PARAMETERS Model KF-16C-48 Capacity 4 Gallons(16L) Membrane mini-pump Pump 0-90psi Pressure （4.1±0.3）L/min Max. Performance Input: 100-240V～ 50/60Hz 0.5A Output: DC12.0V,1.6A Charger Lithium Battery（DC12V,8Ah） Battery STRUCTURE DIAGRAM Parts name № Spraying nozzle Spray bar Spray bar storage parts Handle - 03 -... -
Page 5: Assembly And Use
Parts name Hose Voltmeter Charger socket Switch Pressure regulating knob Straps Battery compartment Tank Carrying handle ASSEMBLY AND USE Step 1: Installation of spray bar kit First, connect one end of the hose (hexagon nut, attached with a sealing ring) to the water outlet of the barrel, and the other end to the handle end (pay attention to installing the seal ring during installation!). - Page 6 Step 2: Installation of pressure regulating knob Press the knob cap in by hand Step 3: Installation of straps First, connect the chest fastener of the strap. Then pass the strap through the strap hole at the back of the barrel, and finally hook the strap through the hole at the bottom.
- Page 7 Step 4: After filling the barrel with solution, cover it. NOTE: Add the sealing ring and then tighten it to prevent water leakage! A. Turn on the switch. ("1" means to turn on the power, and "0" means to turn off the power) B.
- Page 8 INTRODUCTION AND APPLICATION OF NOZZLE Model KF-01D KF-26E KF-04D KF-86E Picture Single-head copper nozzle: provide a Single-head plastic Three-end copper Three-end plastic small amount of nozzle: provide a nozzle: provide a Function nozzle: provide a spray, or linear small amount of large amount of introduction large amount of spray...
- Page 9 TROUBLESHOOTING INSTRUCTION Reasons Solutions Problem Check the connecting wire and plug the The power connection wire The motor does not connector falls off start after the Use after charging Battery is dead power is turned on Switch on The power switch is off The motor makes Check and tighten the screws of the fixing The fixing screws of the...
- Page 10 CLEAN,CARE AND STORAGE RULES Cleaning and care: After operating the sprayer, remove the working solution from the tank completely and rinse the tank, hose, pump, and spray tube with clean water. Finally, spray with clean water for 3 minutes to eliminate the possibility of a chemical reaction when other chemicals are used in the next spraying.
- Page 11 Manufacturer:TAIZHOU KAIFENG PLASTIC&STEEL CO., LTD. ADD: NO.819 SOUTH ROAD OF JIUTANG, SANJIA JIAOJIANG DISTRICT, TAIZHOU, ZHEJIANG, CHINA Importer: WAITCHX Address: 250 bis boulevard Saint-Germain 75007 Paris EUREP GmbH Unterlettenweg 1a, 85051 Ingolstadt, Germany Made in China...
- Page 12 E-mail: CustomerService@vevor.com...
Need help?
Do you have a question about the KF-16C-48 and is the answer not in the manual?
