- Page 1 Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide First Published: 2019-09-27 Last Modified: 2021-02-01 Americas Headquarters Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134-1706 http://www.cisco.com Tel: 408 526-4000 800 553-NETS (6387) Fax: 408 527-0883...
- Page 2 Any products and features described herein as in development or available at a future date remain in varying stages of development and will be offered on a when-and if-available basis. Any such product or feature roadmaps are subject to change at the sole discretion of Cisco and Cisco will have no liability for delay in the delivery or failure to deliver any products or feature roadmap items that may be set forth in this document.
-
Page 3: Table Of Contents
Grounding Requirements Planning for Power Requirements Airflow Requirements Rack and Cabinet Requirements Clearance Requirements C H A P T E R 3 Installing the Chassis Safety Installation Options with Rack-Mount Kits Airflow Considerations Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... - Page 4 Connecting a Power Cable to an NXA-PDC-930W Power Supply A P P E N D I X A Rack Specifications Overview of Racks General Requirements for Cabinets and Racks Requirements Specific to Standard Open Racks Requirements Specific to Perforated Cabinets Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide...
- Page 5 A P P E N D I X C LEDs Switch Chassis LEDs Fan Module LEDs Power Supply LEDs A P P E N D I X D Additional Kits Rack Mount Kit NXK-ACC-KIT-1RU Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide...
- Page 6 Contents Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide...
-
Page 7: Preface
Braces and a vertical bar within square brackets indicate a required choice within an optional element. Indicates a variable for which you supply values, in context where italics variable cannot be used. Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... -
Page 8: Documentation Feedback
What's New in Cisco Product Documentation, at: https://www.cisco.com/warp/public/687/Directory/DirTAC.shtml. Subscribe to What's New in Cisco Product Documentation, which lists all new and revised Cisco technical documentation as an RSS feed and delivers content directly to your desktop using a reader application. The RSS feeds are a free service. -
Page 9: Overview

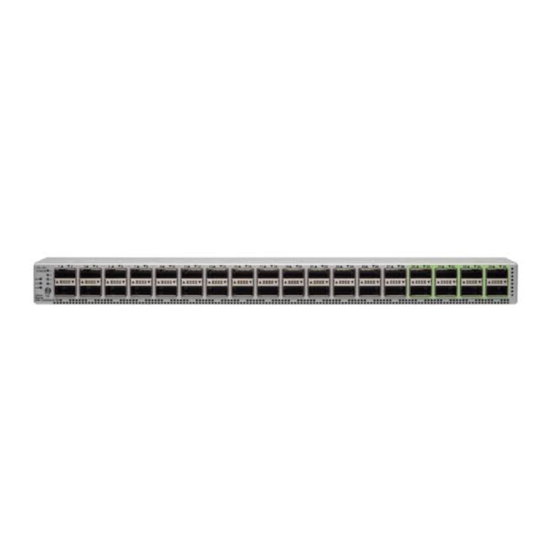

Overview • Overview, on page 1 Overview The Cisco Nexus 93600CD-GX switch (N9K-C93600CD-GX) is a 1-rack unit (RU), fixed-port switch designed for spine-leaf-APIC deployment in data centers. This switch has the following ports: • 28 10/40/100-Gigabit QSFP28 ports (ports 1-28) •... - Page 10 • 1100-W port-side intake HVAC/HVDC power supply with burgundy coloring (NXA-PHV-1100W-PI) • 1100-W port-side exhaust DC power supply with blue coloring (NXA-PDC-1100W-PE) • 1100-W port-side intake DC power supply with burgundy coloring (NXA-PDC-1100W-PI) Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide...
- Page 11 1 (left) and 2 (right) Fan modules (6) with slots Management port (1—SFP optical port) numbered from 1 (left) to 6 (right) Console port (1) USB port (1) Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide...
- Page 12 If the switch has port-side exhaust airflow (blue coloring for fan modules), you must locate the ports in the hot aisle. If you locate the air intake in a hot aisle, the switch can overheat and shut down. Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide...
-
Page 13: Preparing The Site
Altitude Requirements Altitude rating is based on power supply installed; see critical components list in the system CB report for altitude rating. Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... -
Page 14: Dust And Particulate Requirements
The wiring is unlikely to emit radio interference if you use a twisted-pair cable with a good distribution of grounding conductors. If you exceed the recommended distances, use a high-quality twisted-pair cable with one ground conductor for each data signal when applicable. Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... -
Page 15: Shock And Vibration Requirements
Planning for Power Requirements The switch includes two power supplies (1-to-1 redundancy with current sharing) in one of the following combinations: • Two 1100-W AC power supplies • Two 1100-W DC power supplies Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... - Page 16 • Ensure that the protective devices are rated not greater than 10A when the switch is powered with HVDC power supplies (rated 240-350VDC). Warning Statement 1033 Connect the unit only to DC power source that complies with the Safety Extra-Low Voltage (SELV) requirements in IEC 60950 based safety standards. Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide...
-
Page 17: Airflow Requirements
• Solid-walled cabinets with a roof fan tray (bottom-to-top cooling) • Standard open four-post Telco racks Work with your cabinet vendors to determine which of their cabinets meet the following requirements or see the Cisco Technical Assistance Center (TAC) for recommendations: Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... -
Page 18: Clearance Requirements
For the clearances required for an installation of this chassis in a four-post rack, see the following figure. Chassis Depth of the chassis Vertical rack-mount posts and rails Maximum extension of the bottom-support rails 36.0 in (91.0 cm) Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... - Page 19 19.0 in (43.3 cm) Note Both the front and rear of the chassis must be open to both aisles for airflow. Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide...
- Page 20 Preparing the Site Clearance Requirements Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide...
-
Page 21: Installing The Chassis
Starting the Switch, on page 23 Safety Before you install, operate, or service the switch, see the Regulatory, Compliance, and Safety Information for the Cisco Nexus 3000 and 9000 Series for important Safety Information. Warning Statement 1071 Warning Definition IMPORTANT SAFETY INSTRUCTIONS Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. - Page 22 When installing the product, use the provided or designated connection cables/power cables/AC adapters. Warning Statement 1017 Restricted Area This unit is intended for installation in restricted access areas. Only skilled, instructed, or qualified personnel can access a restricted access area. Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide...
- Page 23 To reduce risk of electric shock, connect the unit only to a DC power source that complies with the SELV requirements in IEC 60950-based safety standards or ES1 requirements in IEC 62368-based safety standards. Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide...
-
Page 24: Installation Options With Rack-Mount Kits
You can install the switch using the following rack-mount options: • Rack-mount kit (NXK-ACC-KIT-1RU) which you can order from Cisco. This option offers you easy installation, greater stability, increased weight capacity, added accessibility, and improved removability with front and rear removal. -
Page 25: Airflow Considerations
Installing the Chassis Airflow Considerations • Rack-mount kit (N3K-C3064-ACC-KIT) which you can order from Cisco. • When installing the N3K-C3064-ACC-KIT rack-mount kit, the distance between the outside face of the front mounting rail and the outside face of the back mounting rail should be 26.5 to 36 inches (67.31 to 91.44 cm) to allow for rear-bracket installation. -
Page 26: Unpacking And Inspecting The Switch
(there must be a metal-to-metal connection to the earth ground). Step 1 Compare the shipment to the equipment list provided by your customer service representative and verify that you have received all items, including the following: Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... -
Page 27: Installing The Switch Using The Nxk-Acc-Kit-1Ru Rack-Mount Kit
• If the switch has port-side exhaust modules (fan modules with blue coloring), position the switch so that its fan and power supply modules will be in the cold aisle. Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... - Page 28 (see the following figure). Tighten 12-24 screws to 30 in-lb (3.39 N·m) of torque and tighten 10-32 screws to 20 in-lb (2.26 N·m) of torque. Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide...
- Page 29 Holding the chassis level, insert screws (12-24 or 10-32, depending on the rack type) in each of the two front rack-mount brackets (using a total of six screws) and into the cage nuts or threaded holes in the vertical rack-mounting rails (see the following figure). Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide...
-
Page 30: Grounding The Chassis
This equipment must be grounded. To reduce the risk of electric shock, never defeat the ground conductor or operate the equipment in the absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain that suitable grounding is available. Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... -
Page 31: Starting The Switch
You start the switch by connecting it to its dedicated power source. If you need n+1 redundancy, you must connect each of the power supplies to one or two power sources. If you need n+n redundancy, you must connect each power supply in a switch to a different power source. Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... - Page 32 4. Place the power cable positive-wire terminal ring on the positive terminal for the power source and secure them with a terminal nut. 5. Place the power cable ground-wire terminal ring on the ground terminal for the power source and secure them with a terminal nut. Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide...
- Page 33 A setup utility automatically launches the first time that you access the switch and guides you through the basic configuration. For instructions on how to configure the switch and check module connectivity, see the appropriate Cisco Nexus 9000 Series configuration guide.
- Page 34 Installing the Chassis Starting the Switch Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide...
-
Page 35: Connecting The Switch To The Aci Fabric
As shown in the following figure, each APIC is connected to one or two leaf switches and each leaf switch should be connected to every spine switch in the same fabric. Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... -
Page 36: Preparing To Connect To Other Devices
Cisco equipment. In situations where long parallel cable runs cannot be separated by at least 3.3 feet (1 meter), we recommend that you shield any potential noise sources by housing them in a grounded metallic conduit. -
Page 37: Connecting Leaf Switches To Apics
Connecting Leaf Switches to APICs You must downlink one or two (recommended for redundancy) Cisco Nexus 9300 platform ACI-mode leaf switches to each Application Policy Infrastructure Controller (APIC) in your ACI fabric. The type of virtual interface card (VIC) installed on the APIC determines the types of interface cables that you can use to connect the leaf switches to the APICs. - Page 38 Connect the other end of the interface cable to a downlink port on a leaf switch. • For a Cisco 10GBASE-LR or -SR transceiver and cable, insert the transceiver into a downlink optical port on a leaf switch before connecting the cable to the transceiver.
-
Page 39: Connecting Leaf Switches To Spine Switches
You cannot include NX-OS line cards in the same chassis when running in ACI mode. Note Multiple uplinks from a leaf switch to a spine switch is supported. A symmetrical topology is recommended so that all devices have equal access to resources. Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... -
Page 40: Installing A Gigabit Ethernet Module (Gem)
Migration of Nodes From a First Generation Switch to a Second Generation Switch You have first generation Cisco Nexus 9000 series switches that may or may not be comprising a virtual port channel (vPC). You are migrating to second generation Cisco Nexus 9000 series switches using the same cables. - Page 41 Before you begin • Move any Cisco Application Policy Infrastructure Controllers (APICs) that are connected to the first generation switches that you are migrating to any other switches in the fabric and wait for the Cisco APIC cluster to become "Fully Fit."...
-
Page 42: Setting Up An Optional Console Interface
Register the new second generation switch with the Cisco APIC. Register the new node with the same node name and node ID. This switch becomes part of the fabric. The Cisco APIC pushes the policies to the new switch and keeps down the vPC legs because there is a mismatch of the generation of switches. -
Page 43: Setting Up An Optional Management Connection
DB-9 connector on the other end of the cable to the serial port on the console device. What to do next You can now perform the initial configuration for the switch (see the Cisco ACI Getting Started Guide). Setting Up an Optional Management Connection You can optionally set up an out-of-band management connection for monitoring and troubleshooting purposes. - Page 44 Use the narrow end of the optics extraction tool to carefully remove the transceiver module (see the following image). Step 4 Place the transceiver module in an antistatic bag or other protective environment. Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide...
-
Page 45: Maintaining Transceivers And Optical Cables
• Inspect routinely for dust and damage. If you suspect damage, clean and then inspect fiber ends under a microscope to determine if damage has occurred. Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... - Page 46 Connecting the Switch to the ACI Fabric Maintaining Transceivers and Optical Cables Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide...
-
Page 47: Replacing Components
Hold the module by its handle and do not touch the electrical connectors on its backside. Also, to protect the electrical connectors, avoid letting them come in contact with anything other than the electrical connectors inside the chassis. Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... -
Page 48: Replacing A Power Supply Module
If the STS LED does not turn on, slide the module out of the chassis, and visually check the electrical connectors on the back side of the chassis for damage. If damaged, contact Cisco Technical Assistance for help. If undamaged, repeat the previous step to reinstall the module. -
Page 49: Removing An Hvac/Hvdc Power Supply
Be sure that the LEDs turn off on the power supply that you are removing. Step 2 Remove the power cable from the power supply by doing the following: Step 3 Grasp the power supply handle while pressing the release latch towards the power supply handle. Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... -
Page 50: Installing An Ac Power Supply
Make sure that the other end of the power cable is attached to the appropriate power source for the power supply. Note Depending on the outlet receptacle on your power distribution unit, you might need the optional jumper cable to connect the switch to your outlet receptacle. Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... -
Page 51: Installing An Hvac/Hvdc Power Supply
Verify that the power supply is operational by making sure that the power supply LED is green. Installing a DC Power Supply You can replace one power supply while the other one provides power to the switch. Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... -
Page 52: Connecting A Power Cable To An Nxa-Pdc-930W Power Supply
The recommended wire gauge is 8 AWG. The minimum wire gauge is 10 AWG. Warning Statement 342 Before Connecting to System Power Supply High touch/leakage current – Permanently connected protective earth ground is essential before connecting to system power supply. Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... - Page 53 Verify that the other ends of the cables are attached to the DC power source and ground. Step 5 Turn on the circuit breaker Step 6 You are now ready to turn on the DC power source. Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide...
- Page 54 Replacing Components Connecting a Power Cable to an NXA-PDC-930W Power Supply Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide...
-
Page 55: Rack Specifications
• Standard 19-inch (48.3 cm) (two- or four-post EIA cabinet or rack, with mounting rails that conform to English universal hole spacing per section 1 of ANSI/EIA-310-D-1992). For more information, see Requirements Specific to Perforated Cabinets, on page Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... -
Page 56: Requirements Specific To Standard Open Racks
• The roof should be perforated with at least a 20 percent open area. • The cabinet floor should be open or perforated to enhance cooling. The Cisco R Series rack conforms to these requirements. Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... -
Page 57: Cable Management Guidelines
To help with cable management, you might want to allow additional space in the rack above and below the chassis to make it easier to route all of the fiber optic or copper cables through the rack. Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... - Page 58 Rack Specifications Cable Management Guidelines Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide...
-
Page 59: System Specifications
5 to 90% Altitude Operating 0 to 13,123 feet (0 to 4,000 meters) Switch Dimensions Switch Width Depth Height Cisco Nexus 93600CD-GX 17.37 inches (44.13 25.5 inches (64.8 cm) 1.72 inches (4.37 cm) (1 Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... -
Page 60: Switch And Module Weights And Quantities
Switch Typical Power Consumption (AC or DC) Maximum Power Heat Dissipa Consumption (AC or Requirement Cisco Nexus 93600CD-GX 590 W 1100 W 3,753.356 BT per hour Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... -
Page 61: Power Specifications
These specifications apply to the following power supplies: • NXA-PHV-1100W-PE • NXA-PHV-1100W-PI Characteristic Specification Efficiency Input voltage 100VAC – 277VAC, 240VDC – 380VDC Nominal frequency 50, 60Hz Maximum input current 100-277VAC 13A Max, 240VDC – 380VDC 5.5A Max Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... -
Page 62: 1100-W Dc Power Supply Specifications
The following sections specify the power cables that you can order and use with this switch. Power Cable Specifications for AC Power Supplies Locale Power Cord Part Number Cord Set Description CAB-C13-C14-2M Power Cord Jumper, C13-C14 Connectors, 6.6 feet (2.0 m) Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... - Page 63 250 VAC, 10 A, MP232 plug, 8.2 feet (2.5 m) United Kingdom CAB-9K10A-UK 250 VAC, 10 A, BS1363 plug (13 A fuse), 8.2 (2.5 All except Argentina, Brazil, NO-POWER-CORD No power cord included with switch and Japan Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide...
-
Page 64: Hvac/Hvdc Power Cables Supported By Aci-Mode And Nx-Os Mode Switches
(+200/-200 V DC) NO-POWER-CORD All except Argentina, Not applicable Brazil, and Japan No power cord included with switch Table 1: HVAC/HVDC Power Cables Callout Table Connect this end to the power supply unit. Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... -
Page 65: Dc Power Cable Specifications
Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC. Safety • CAN/CSA-C22.2 No. 60950-1 Second Edition • EN 60950-1 Second Edition • IEC 60950-1 Second Edition • IEC 623681 • AS/NZS 60950-1 • GB4943 Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... - Page 66 • CNS13438 Class A EMC: Immunity • EN55024 • CISPR24 • EN300386 • KN 61000-4 series RoHS The product is RoH-6 compliant with exceptions for leaded-ball grid-array (BGA) balls and lead press-fit connectors. Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide...
-
Page 67: Leds
Power supply is on and outputting power to the switch. Flashing Power supply is connected to an AC power source but not outputting power green to the switch. The power supply may not be properly installed in the chassis. Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... - Page 68 Power supply is installed without a connection to a power source. (10 seconds) then amber Amber Power supply failure—possibly one of the following conditions: • Over voltage • Over current • Over temperature • Power supply fan failure Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide...
-
Page 69: Additional Kits
Not applicable Hazardous substances list for customers in China The following table lists and illustrates the console cable (CAB-CONSOLE-RJ45) that can be ordered. Illustration Description Quantity Console cable with DB-9F and RJ-45F connectors Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide... - Page 70 Additional Kits Additional Kits Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide...
