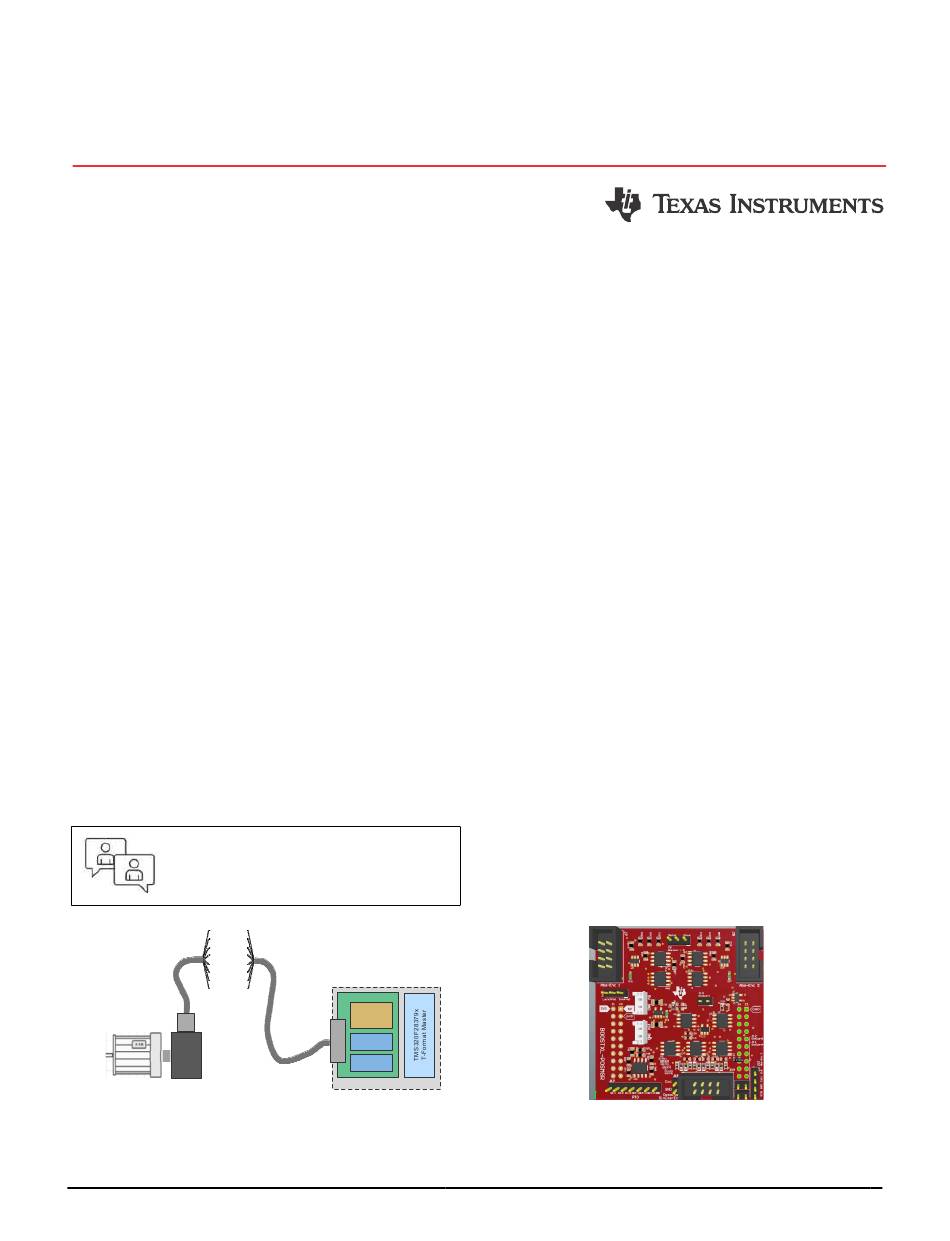

Design Guide: TIDM-1011
Tamagawa T-Format Absolute-Encoder Master Interface
Reference Design for C2000™ MCUs
Description
C2000
™
microcontroller (MCU) Position Manager
technology offers an integrated solution to interface to
the most popular digital- and analog-position sensors,
which eliminates the necessity for external field-
programmable gate arrays (FPGAs) or application-

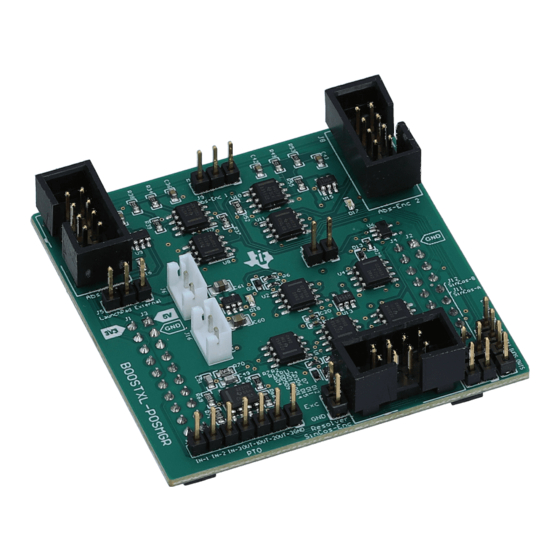

specific integrated circuits (ASICs). The Position
Manager BoosterPack
™
platform intended for evaluating various encoder
interfaces and is designed to work with multiple
C2000 MCU LaunchPad
™
software of this reference design specifically targets
implementation of the T-Format, which is a digital,
bidirectional interface for position encoders. The
highly optimized and easy-to-use software reference
implementation and examples included in this
reference design enable T-Format, position-encoder
operation using the Position Manager BoosterPack.
Resources
TIDM-1011
LAUNCHXL-F28379D
LAUNCHXL-F280039C
LAUNCHXL-F280049C
LAUNCHXL-F280025C
SN65HVD78, TLV702,
TPS22918-Q1
C2000WARE-MOTORCONTROL-SDK
Ask our TI E2E
DATA+
DATA–
Power
Shielded Cable
Ground
Connector
Tamagawa
Motor
Absolute Position Encoder
TIDUE74D – SEPTEMBER 2020 – REVISED OCTOBER 2022
Submit Document Feedback
is a flexible, cost-effective
development kits. The
Design Folder
Tools Folder
Product Folder
Tools Folder
™
support experts
Encoder
Supply
Connector
RS485
RS485
Copyright © 2022 Texas Instruments Incorporated
Features
•
Flexible, low-voltage, BoosterPack evaluation
platform for position-encoder interfaces
•
Integrated MCU solution for T-Format encoder
interface without additional FPGA requirements
•
Easy interface T-Format commands through driver
functions and data structure provided by interface
function
•
Support for unpacking received data and optimized
cyclic redundancy check (CRC) algorithm
•
Supports a clock frequency of 2.5 MBPS and
verified operation up to 100-m cable length
•
Includes evaluation software example showcasing
the T-Format implementation
Applications
•
Industrial
•
Motor Drives
Tamagawa T-Format Absolute-Encoder Master Interface Reference Design for
Description
