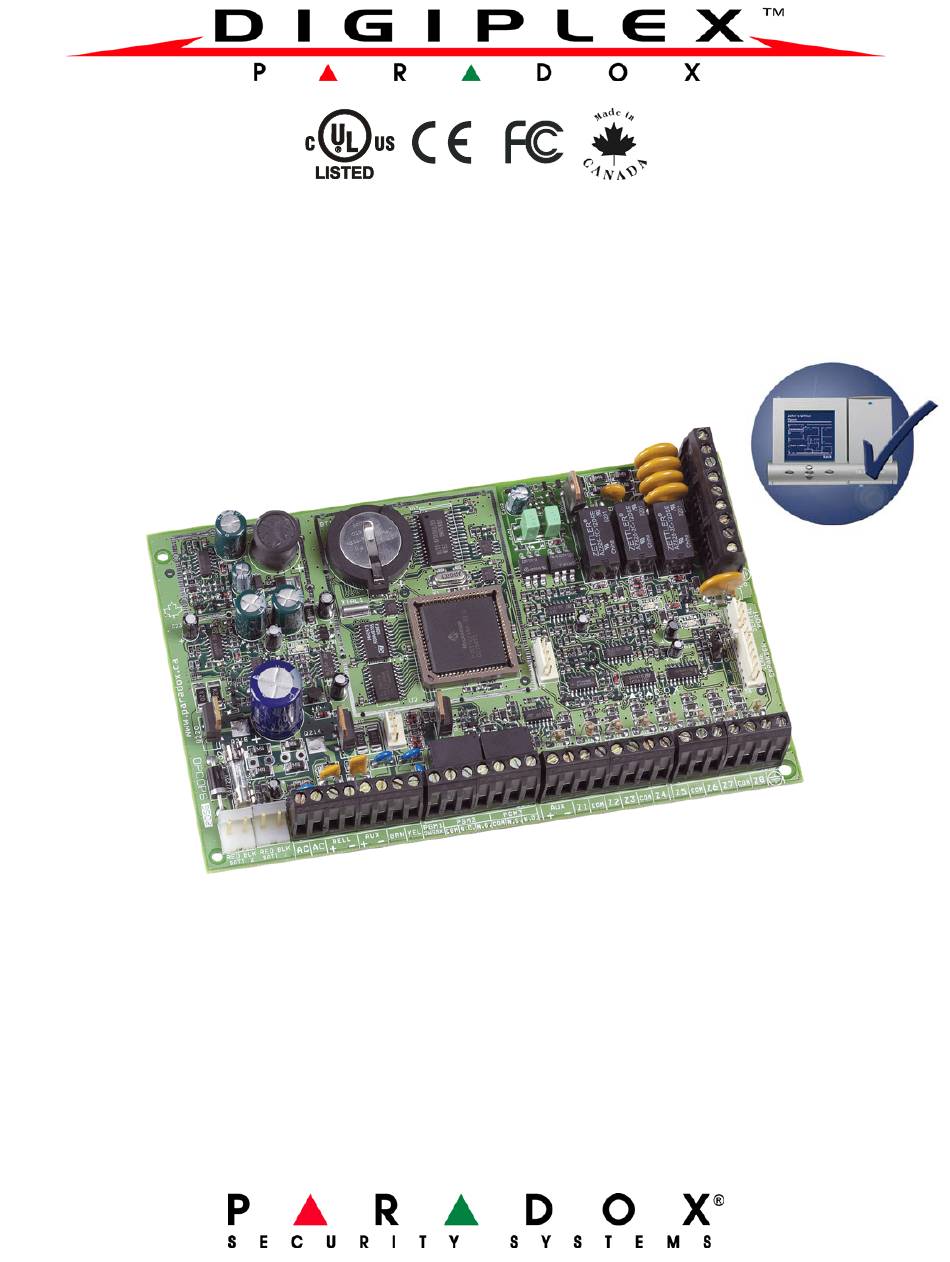

- Page 1 V1.5 96-Zone Expandable Security and Access Control Panel DGP-NE96 DGP-NE96 Reference and Installation Manual www.paradox.ca...
-
Page 3: Table Of Contents
Account Number Transmission..........25 Reporting Formats ..............25 WinLoad Uploading/Downloading Software* ......9 Event Call Direction ............... 25 Paradox Memory Key............... 9 Pager Delay ................26 Module Broadcast ..............9 Recent Close Delay ............... 26 Programming Through a Keypad ..........9 Power Failure Report Delay........... - Page 4 Installer Code Lock ..............30 Restrict Arming on Door ............38 Daylight Savings Time ............30 Restrict Disarming on Door ........... 38 Battery Charge Current............30 Door Access During Clock Loss..........38 Combus Speed ..............30 Burglar Alarm On Forced Door or Door Left Open....38 Transmit Zone Status on Serial Port........
-
Page 5: Introduction
Introduction The Digiplex DGP-NE96 is a security and access control system with 8 on- 1.2 Specifications board zone inputs (16 with zone doubling) that is expandable to 96 zones Control Panel (Non-UL systems) via the 4-wire combus. The DGP-NE96 control panel features up to 999... -
Page 6: Installation
Installation 2.1 Recommended Installation Procedure 2.5.1 Battery Test The control panel conducts a dynamic battery test under load every 64 In order to facilitate installation, we recommend connecting the modules in seconds. If the battery is disconnected, if its capacity is too low or if the small groups and verifying the system after every group is connected, battery voltage drops to 10.5 volts or less when there is no AC, the “Battery instead of verifying the system only after all modules are connected. - Page 7 Figure 3: DGP-NE96 Control Panel Wiring Diagram Red " #1" and " #2" LEDs: LINE LINE Illuminated - If the control panel is using a telephone line, the panel Red " " LED: STATUS will display which line it is using by illuminating a telephone line LED. Flashing - Indicates proper operation.
-
Page 8: Calculating Power Requirements
2.11 Calculating Power Requirements Table 1: Power Unit Consumption Table Description QTY. PU used by each Total PU _______ __________ PU Grafica Graphic LCD Keypad (DNE-K07): 150PU = _______ __________ PU LCD Keypad (DGP2-641): 80PU = _______ __________ PU LED Keypad (DGP2-648): 115PU = _______ __________ PU... -
Page 9: Keypad Zone Connections
(see Zone Programming on page 10). Figure 6 shows single zone (ATZ disabled) hardwire input terminal connections recognized by the Digiplex DGP-NE96 system. For UL listed installations, use EOL resistor part #2011002000. -
Page 10: Double Zone Connections
Figure 6: Single Zone Input Connections 2.14 Double Zone Connections Enabling the ATZ feature (see section 4.2) allows you to install two detection devices per input terminal. Connect the devices as shown in Figure 7. Devices connected to input terminals must be assigned to a zone and the zone's parameters must be defined (see Zone Programming on page 10). -
Page 11: Combus Connections
2.16 Combus Connections 2.17.3 Smoke Detector Installation (4-Wire) Recommended: System Sensor model Modules can connect anywhere on the 4-wire combus, which can support Figure 9: 4-Wire Detectors 2112/24D smoke detectors. Connect the up to 127 modules. Connect in a star and/or daisy chain configuration as 4-wire smoke detectors and a relay as shown in Figure 3 on page 3. -
Page 12: Built-In Rtc
Example 3: DGP-NE96 Dialer Ground clamp Main line 2nd line Example 4: DGP-NE96 Dialer Ground clamp 2nd line Main line For TBR-21 compliance, please note the following: 1. The DGP-NE96 can be connected to the telephone network via an RJ- 11 connector. -
Page 13: Programming Methods
(Not to be used with UL Listed systems) For LCD Keypads: The control panel will save the data and automatically The Paradox Memory Key can copy the programmed contents of one advance to the next section or press the [... -
Page 14: Zone Programming
Zone Programming All detection devices connected to the control panel, keypads and zone expansion modules must be assigned to a zone and that zone must be defined as described in this section. Figure 13: Zone Programming Press & hold the Zone Definitions [0] key 0- Disabled (Default) 8- 24Hr Gas... -
Page 15: Zone Doubling (Atz)
4.1.1 Clearing a Zone’s Numbering Partition 5 Partition 6 Entry Delay 1 Timer: [3511] Entry Delay 1 Timer: [3611] For LCD Keypads: Entry Delay 2 Timer: [3512] Entry Delay 2 Timer: [3612] 1. Enter a section number between [0001] to [0096]. 2. -
Page 16: Zone Partition Assignment
4.3.10 24Hr Water Zones* 4.3.13 Standard 24Hr Fire Zone [0101] [0196]: F [0101] [0196]: F ECTIONS IRST DIGIT ECTIONS IRST DIGIT When a 24Hr Water zone opens, whether it is armed or disarmed, the A zone programmed as Fire becomes normally open (will not function as control panel will immediately generate an alarm. -
Page 17: Input Speed
4.5.3 Stay Zones Set the Input Speed (001 to 255 X 30ms, default = 600ms): [0101] [0196]: O ECTIONS PTION Section Input Section Only zones with option [3] enabled will be bypassed when the partition is [0961] Input 01 [0973] Input 13 (ATZ of Input 01) Stay armed (see section 15.2 on page 40) or Instant armed (see section 15.3 on page 40). -
Page 18: Keyswitch Programming
Keyswitch Programming The DGP-NE96 control panel can support up to 32 keyswitch zones in addition to the 96 standard zones. A keyswitch allows a user to arm or disarm a system by pressing a key or by switching a keyswitch ON or OFF. A keyswitch can also be used to generate a Utility Key event which can then be used to activate or deactivate PGM outputs connected to the DGP-NE96 system. -
Page 19: Keyswitch Partition Assignment
5.2.4 Generates a Utility Key Event on Open 5.4.5 Force Arming (Keyswitch) [0601] [0632]: F [0601] [0632]: O ECTIONS IRST DIGIT ECTIONS PTION When option [3] is enabled, a Utility Key Event will be generated whenever Activating the keyswitch will arm the selected partition bypassing any open the keyswitch input is opened (see Table 14 on page 49). -
Page 20: Arming And Disarming Options
Arming and Disarming Options 6.1 Arming Follows Partition 6.4 Restrict Arming on AC Failure [3035]: O (Default = disabled) A partition can be set to follow the arming and ECTION PTION disarming status of one or more partitions. If a partition is set to follow more (Default = disabled) When option [1] is enabled, the control panel can than one partition, the partition will arm when all the selected partitions are prevent arming if it detects a loss of AC power.
