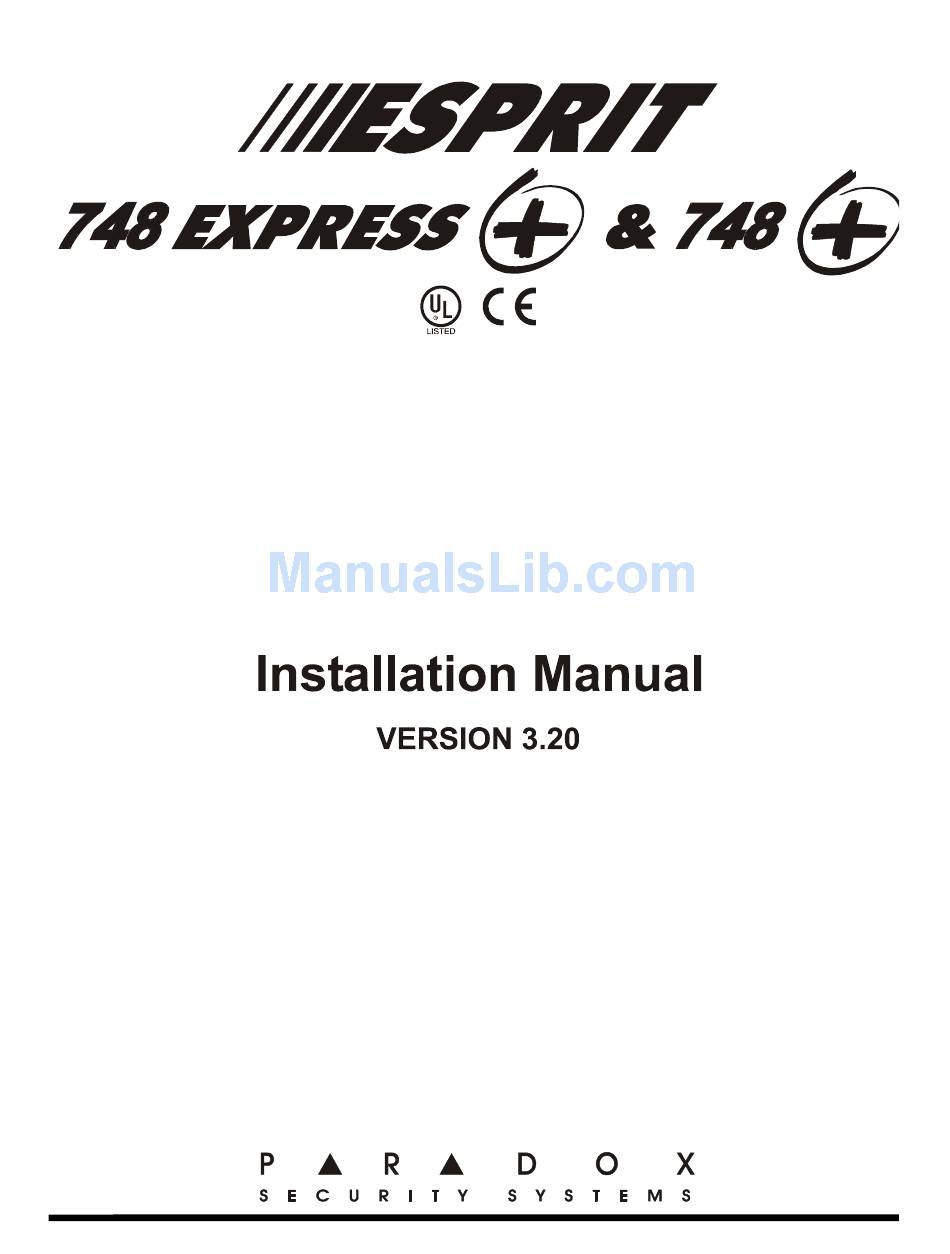

- Page 1 748P-EI01...
-
Page 3: Table Of Contents
About Paradox ........ - Page 4 Table of Contents Advanced Technology Zoning (ATZ) ............29 Intellizones .
-
Page 5: Introduction
Introduction INTRODUCTION Thank you for placing your trust in Paradox and its improved Esprit 748 / 748 EXPRESS control panel. The enhanced control panel offers to you the same great features you have come to depend on with added reliability, improved lightning protection and a new innovative dialer circuit. -
Page 6: Specifications
Accessories & Keypads If you would like to obtain more information on the following keypads, security system accessories or other security products, please contact your local Paradox distributor or come and visit us at our web site http://www.paradox.ca ? Esprit 636/646 Keypads... -
Page 7: Installation
Installation INSTALLATION Location & Mounting Remove the printed circuit board, mounting hardware and keypad from the packaging inside the panel box. The circuit board should not be mounted into the back of the cabinet, until all cables are pulled into the cabinet and prepared for connection. Before mounting the cabinet, push the five white nylon-mounting studs into the back of the cabinet. -
Page 8: Telephone Line Connection
If AC is present, check the keypad wiring and verify there isn't a short between the "black" and "red" keypad wires. If the keypad does not respond, please contact your local Paradox Distributor. Telephone Line Connection Connect the incoming telephone company wires into the connections of the control panel. -
Page 9: Bell/Siren Output
Installation Bell/Siren Output The BELL+ and BELL- terminals power bells and/or other warning devices requiring a steady voltage output during an alarm. The bell output supplies 12VDC upon alarm and can support two 20-watt or two 30-watt sirens. The bell output is microprocessor-controlled and will automatically shut down if the current exceeds 3A. - Page 10 Installation Example: A door contact located at the entry point of an establishment can be wired directly to the input terminal of the entry point keypad instead of wiring the door contact all the way to the control panel. If a keypad has the ATZ (zone doubling) feature, two detection devices can be connected to one input terminal.
-
Page 11: Single Zone Input Terminal Connections
Installation Once the keypad zones have been defined you must enable "Keypad Zone Supervision" (see section 7.13 & 7.14) in the control panel. Figures 8 and 9 demonstrate typical keypad zone input installations. Single Zone Input Terminal Connections The system hardware recognizes the following single zone input terminal connections. For more information on programming the options mentioned below refer to ZONE DEFINITIONS in section 7. - Page 12 Installation tamper or wire fault detection, connect the detection devices and program the control panel as shown in figure 11. This setup will communicate an open or closed zone to the control panel, displaying open zones on the keypad. Do not use devices with normally open contacts in this setup, as this will cause the control panel to remain in alarm.
-
Page 13: Advanced Technology Zone (Atz) Connections
Installation 2.10 Advanced Technology Zone (ATZ) Connections This feature is not available on the 748 EXPRESS control panel. Enabling the ATZ feature (see section 7.2) allows you install two detection devices per input terminal, therefore, doubling zone capacity of the control panel. Advanced Technology Zoning is a software-oriented feature, there is no need for extra modules, simply install the devices as shown in figures 17 to 19. -
Page 14: Fire Circuit
Installation 2.10.2 N.C. Contacts, Without EOL Resistor, With Tamper Recognition If your security installation requires tamper recognition and you are using the ATZ feature, connect the detection devices and program the control panel as shown in figure 18. Do not use devices with normally open contacts, as this will cause the zone to remain open. -
Page 15: Serial Output Connector
Installation 2.11.2 UL Installation For UL installations, use a 4-wire, latching, smoke detector (UL - Falcon Model 5454). To supervise the power supply, install an "end of line" relay (Model MR3). Connect the smoke detectors and relay as shown in figure 21. In the event power is interrupted the relay will cause a FIRE TROUBLE report to be generated (see section 7.5). -
Page 16: Access Codes
Access Codes ACCESS CODES Installer Code Streamline - Section 00 ? Hexa Programming - Addresses 000-002 484848 747474 Default: 748 / 748 EXPRESS Only the installer code allows you to program all control panel settings, except the Master and User codes. -
Page 17: Programming Methods
Using Espload there is no limit to the number of account files or panel defaults created and you can assign thousands of programming combinations to the PGM outputs. Espload can also be converted to the language of your choice. Contact your local Paradox Distributor for your copy of the Espload software. - Page 18 Programming Methods 1) Press [ ] + Installer Code ENTER 2) The [ ] key will flash indicating ENTER you are in programming mode 3) Enter the desired 3-digit address 4) The keypad will display the 2-digit data currently saved at this address as described in figure 23 5) Enter 2-digit data;...
- Page 19 Programming Methods 1) Press [ ] + Installer Code ENTER 2) The [ ] key will flash to indicate you ENTER are in programming mode 3) Enter 3-digit address (044-061) 4) The keypad will now display the current 3-digit data currently saved at this address as described in figure 24 5) Enter 3-digit data (decimal) value;...
-
Page 20: Panel Settings For Espload
Panel Settings for Espload PANEL SETTINGS FOR ESPLOAD Panel Answer Options Streamline - Section 00 ? Hexa Programming - Address 003 Default: Answering Machine Override Disabled & Maximum 8 rings The following two options will define how the control panels answer an incoming call from a computer using the Espload software. -
Page 21: Panel Identifier
Panel Settings for Espload the fifth ring. If you call back after 64 seconds the "ring" counter will have been reset and the control panel will answer the call on the eighth ring. If you program four or less rings, the control panel will always reset the counter! Panel Identifier Streamline - Section 01 ? ? Hexa Programming - Addresses 004-005 This four-digit code identifies the control panel to the Espload software before initiating upload. -
Page 22: Cancel Communication
Panel Settings for Espload Main Menu ? Program Setup ? Modem & Printer Configuration Set "Dialing Condition" to "Blind Dial". Program the panel telephone number in Espload and follow the instructions on the ADP-1 adapter. When the computer has dialed press: ] + (Installer, Master, or User 1 Code) + [ ENTER AWAY... -
Page 23: Event Reporting
Event Reporting EVENT REPORTING... -
Page 24: Reporting Options
Event Reporting Reporting Options Feature Select Programming ? Address 086, key [11] & [12] Default: Reporting Disabled When a specific event occurs in the system, the control panel will attempt to report the appropriate event code (if programmed) to the Central Station. The four available Reporting Options described in the table below, define where the event codes are reported. -
Page 25: Central Station Telephone Number 1
Event Reporting appear in the keypad's trouble display (key [7] "on"). When the next event occurs (reportable or non-reportable), the control panel will begin the dialing sequence again. 6.1.4 Double Reporting In double reporting, the control panel will report each event code to both central station telephone numbers. -
Page 26: Central Station Telephone Number 2
Event Reporting Central Station Telephone Number 2 Streamline - Section 06 & 07 ? Hexa Programming - Addresses 024-031 The control panel can communicate with two central station numbers. The control panel may at times dial the second number depending on the selected Reporting Options see section 6.1. If the central station does not have a second number, you must enter the same number as the first. - Page 27 Event Reporting digit represents the Communication Format for Central Station Telephone Number 2. Below you will find a brief description of all available Communicator Formats. ] + Installer Code + [10] [3] [8] + First digit = (Central Station Telephone #1) + Second digit = ENTER (Central Station Telephone #2) + [ ENTER...
-
Page 28: Reporting Event Codes
Event Reporting 6.5.3 Ademco Express This high-speed reporting format communicates 2-digit (00 to FF) events programmed at addresses 300 to 527 at a speed of 2 seconds per event. Unlike other Ademco formats, the Contact ID Event Codes are not used. Please note this format must use a 4-digit system account code (see section 6.4). - Page 29 Event Reporting 6.6.5 Shutdown Codes Streamline - Sections 48 to 53 ? Hexa Programming - Addresses 448-471 If the Auto Zone Shutdown (see section 7.11.1) feature is enabled, the control panel will send the programmed event code to the Central Station identifying which zones were shutdown. 6.6.6 Tamper/Trouble Codes Streamline - Sections 54 to 56 ? Hexa Programming - Addresses 472-483...
-
Page 30: Auto Test Report
Event Reporting 518 - Partial Arming: Whenever the system is "Away" armed, "Stay" armed, or armed while one or more zones are bypassed. 519 - Recent Close: An alarm occurs shortly after the system has been armed, refer to Recent Close Delay in section 6.10. 520 - Duress: The Duress feature is enabled (see section 3.4) and a User disarms the system using the User Code #48. -
Page 31: Report Zone Restore Options
Event Reporting 6.11 Report Zone Restore Options Feature Select Programming ? Address 088; key [ Default: Zone Restore Codes Transmit on Bell Cut-Off With the [ ] key "Off", the report codes programmed at addresses 424-447 (see Restore Codes in section 6.6.4) will only transmit if the zone has returned to normal after bell cut-off (see section 8.11). -
Page 32: Zone Definitions
Zone Definitions ZONE DEFINITIONS... -
Page 33: Zone Speed
Zone Definitions Zone Speed Decimal Programming ? Address 053 Default: 600mS The zone speed applies to all zones whether the system is armed or disarmed. The zone speed defines how quickly the control panel will respond to an open zone. The control panel will not display and/or respond to an open zone until the programmed zone speed elapses. -
Page 34: Silent Zones
Zone Definitions Silent Zones Feature Select Programming ? Addresses 096 & 098, keys [1] to [12] Using the "Feature Select Programming Method", select which zones will be defined as Silent Zones. If an alarm occurs on a Silent Zone, the control panel will report the alarm (see Event Reporting in section 6) to the central station without triggering any bells and/or sirens. -
Page 35: Entry Delay 1
Zone Definitions Zones. Follow zones function as follows: ? If a follow zone opens and no entry delay zones have been triggered; the control panel will immediately generate an alarm after the zone speed has elapsed. ? If a follow zone opens during another zone's entry delay period, the control panel will wait until the end of the entry delay period before generating an alarm. -
Page 36: Bypass Enabled Zones
Zone Definitions For more information on arming and disarming partitions, see section 11.5. Also see Code Priority in section 8.12. 7.10.1 "System A"/Stay Zones Feature Select Programming ? Addresses 116 & 118, keys [1] to [12] Using the "Feature Select Programming Method", select which zones will be assigned to "System A"... -
Page 37: Keypad Zone 1 Supervision
Zone Definitions 7.13 Keypad Zone 1 Supervision Feature Select Programming ? Address 090, key [11] Default: Disabled When using a keypad defined as keypad zone 1, enable this feature. When enabled, the control panel will verify the presence of a keypad and the keypad zone. For more information see Keypad Zone Connections in section 2.8. -
Page 38: Arm/Disarm & Alarm Options
Arm/Disarm & Alarm Options ARM/DISARM & ALARM OPTIONS... -
Page 39: Timed" Auto Arming
Arm/Disarm & Alarm Options "Timed" Auto Arming Feature Select Programming ? Address 086, key [5] Default: "Timed" Auto Arming Disabled The alarm system will automatically arm itself at a specified time everyday. Note, as with regular arming, the system will not arm if a zone is open and will report a "late to close" to the central. If this occurs, the system will not arm until the next day. -
Page 40: One-Key" Regular Arming
Arm/Disarm & Alarm Options If the "No Movement" Auto Arming (see above) feature is disabled and a time is programmed, the control panel will transmit the event code programmed at address 517 if no movement is detected during the programmed period. ] + Installer Code + [10] [5] [5] + 3-digit decimal value (001-255) + [ ENTER ENTER... -
Page 41: Exit Delay
Arm/Disarm & Alarm Options Exit Delay Decimal Programming ? Address 049 Default: 60 seconds Exit Delay applies to all zones. This option determines how much time the user has to leave the protected area before the system arms after entering a valid access code. You can program the Exit Delay from 001 to 255 sec. -
Page 42: Code Priority
Arm/Disarm & Alarm Options 8.12 Code Priority Feature Select Programming ? Address 062-078, [all] keys In order for a user to arm a partitioned system, to "Stay" arm, to "Away" arm or to manually bypass zones, the user must be given code priority. Using the "Feature Select Programming Method", identify which arming method each user can use. -
Page 43: Pgm (Programmable Output)
PGM (Programmable Output) PGM (PROGRAMMABLE OUTPUT) We strongly suggest using of the Espload software to program the PGM.s PGM Types Streamline - Sections 09 ? Hexa Programming - Address 039 These control panels have two programmable outputs (PGMs). When a PGM closes, a ground is supplied to activate any device or relay connected to it, providing up to a maximum of 50mA (UL 30mA). -
Page 44: Pgm Timer Setting
PGM options with the required 2-digit data for each address. If other options are required, you can fax your requests to Paradox Technical Support, you can visit our web site at http://www.paradox.ca. or the 2-digit data can be derived using the Espload Software as follows: 1) From the "Main Menu"... -
Page 45: Other Options
Other Options OTHER OPTIONS 10.1 Telephone Line Monitoring (TLM) Feature Select Programming ? Address 086, key [2 ] & [1] Default: TLM Disabled When enabled, the system verifies the existence of a telephone line every 4 seconds. After each successful test, the dialer LED (green light) on the control panel flashes briefly. If the test fails the LED flashes on and off until the control panel detects the telephone line again. -
Page 46: Panel Time
Other Options Keypad panic options: Key [4] "off" = Panic 1 silent Key [4] "on" = Panic 1 audible Key [5] "off" = Panic 2 silent Key [5] "on" = Panic 2 audible Key [6] "off" = Panic 3 silent Key [6] "on"... -
Page 47: Tamper/Wire Fault Recognition Options
Other Options 10.7 Tamper/Wire Fault Recognition Options Feature Select Programming ? Address 088, keys [10] to [11] If the control panel detects an open or a short on a zone when the system is armed, regardless of the tamper/wire settings it will always generate an alarm and trouble indicator (key [9]). Alarms will be audible or silent depending on individual zone definitions. -
Page 48: 10.10 Exclude Power Failure From Trouble Display
Other Options 10.10 Exclude Power Failure From Trouble Display Feature Select Programming ? Address 090, key [2 Default: Disabled Excludes the Power Failure, key [2], from the Trouble Display (see section 11.2). 10.11 Audible Trouble Warning Feature Select Programming ? Address 090, key [9] Default: Disabled Trouble conditions will emit an intermittent "beep"... -
Page 49: User/Keypad Functions
User/Keypad Functions USER/KEYPAD FUNCTIONS The innovative Esprit keypads take a new approach to security features and functions. Each numeral from 1 to 12 on the keypad respectively represents each zone from 1 to 12 on the control panel. When the [2 ] key flashes, press the [2 ] key to view zones 13 to 24, where keys [1] to [12] represent zones 13-24 respectively. -
Page 50: Away Arming
User/Keypad Functions them access to any other control panel operations. The use of a valid access code is still required to disarm the system. For details on "Regular Arming", refer to section 11.2. 11.3 Away Arming To rapidly arm the system without having to wait for the green " "... -
Page 51: Arming/Disarming Partitions
User/Keypad Functions 11.4.3 Fast Exit This feature is only available when the system is "Stay" armed (see section 11.4). This feature will allow the user to exit premises while the system is already armed and keep the system armed. This can be done one of two ways: With the system already "stay"... -
Page 52: System Disarming
User/Keypad Functions 11.6 System Disarming The user must enter the protected area through a designated entry/exit point. The keypad will "beep" during the entry delay reminding the user to disarm the system. Upon entry of a valid access code, the red "... -
Page 53: 11.10 Bypass Recall
User/Keypad Functions zone you wish to bypass has not been programmed as "bypass enabled", the corresponding zone indicator will never turn on. Press the [ ] key to erase the current zone bypass entries and exit CLEAR the "bypass mode". If you have entered the correct bypass entries, press the [ ] key to accept ENTER these entries. - Page 54 User/Keypad Functions panel will detect a power loss if a continuous loss of AC (? 12.5V) has occurred during the period between two AC power tests (64 to 116 seconds). If a power loss remains present throughout the Power Failure Report Delay (see section 6.9), the panel will transmit the report code programmed at address 507 and the [ ] key will flash rapidly indicating a TRBL...
-
Page 55: Key Access Programming
User/Keypad Functions 11.13 Key Access Programming This method allows for quick programming of features without entering addresses or section numbers. The following features are programmed using the installer code as well as the master code and user 1 codes. ? Auto Arm Time: for details see section 8.1.1 ? Panel Time: for details see section 10.5 ? Manual Test Report: for details see section 6.8 ? Call Espload: for details see section 5.5... - Page 56 Requirements and Guidelines for UL INSTALLATIONS UL has only evaluated the 708, 728, 728 EXPRESS, 738, 738 EXPRESS, 748 and 748ES for compatibility with the Ademco model 685, FBI model CP220FB, SUR-GUARD SG-MLR2-D6 and Silent Knight model 9000. UL listed in accordance with standard UL1023 (Household Burglar - Alarm System Units), standard UL985 (Household Fire Warning Units) and UL1635 (Digital Alarm Communicator System Units).
- Page 57 (4) consult the dealer or an experienced radio/tv technician for assistance. CAUTION Changes or modifications not expressly approved by PARADOX SECURITY SYSTEMS could void the user's authority to operate the equipment.
- Page 58 ATTACHMENT LIMITATION NOTICE The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements. The Department does not guarantee the equipment will operate to the user's satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company.
- Page 59 INDEX AC Power........3 Earth Ground .
- Page 60 Telephone Line Connection ......4 Telephone Line Monitoring (TLM) ....41 No Movement Auto Arm Time .
