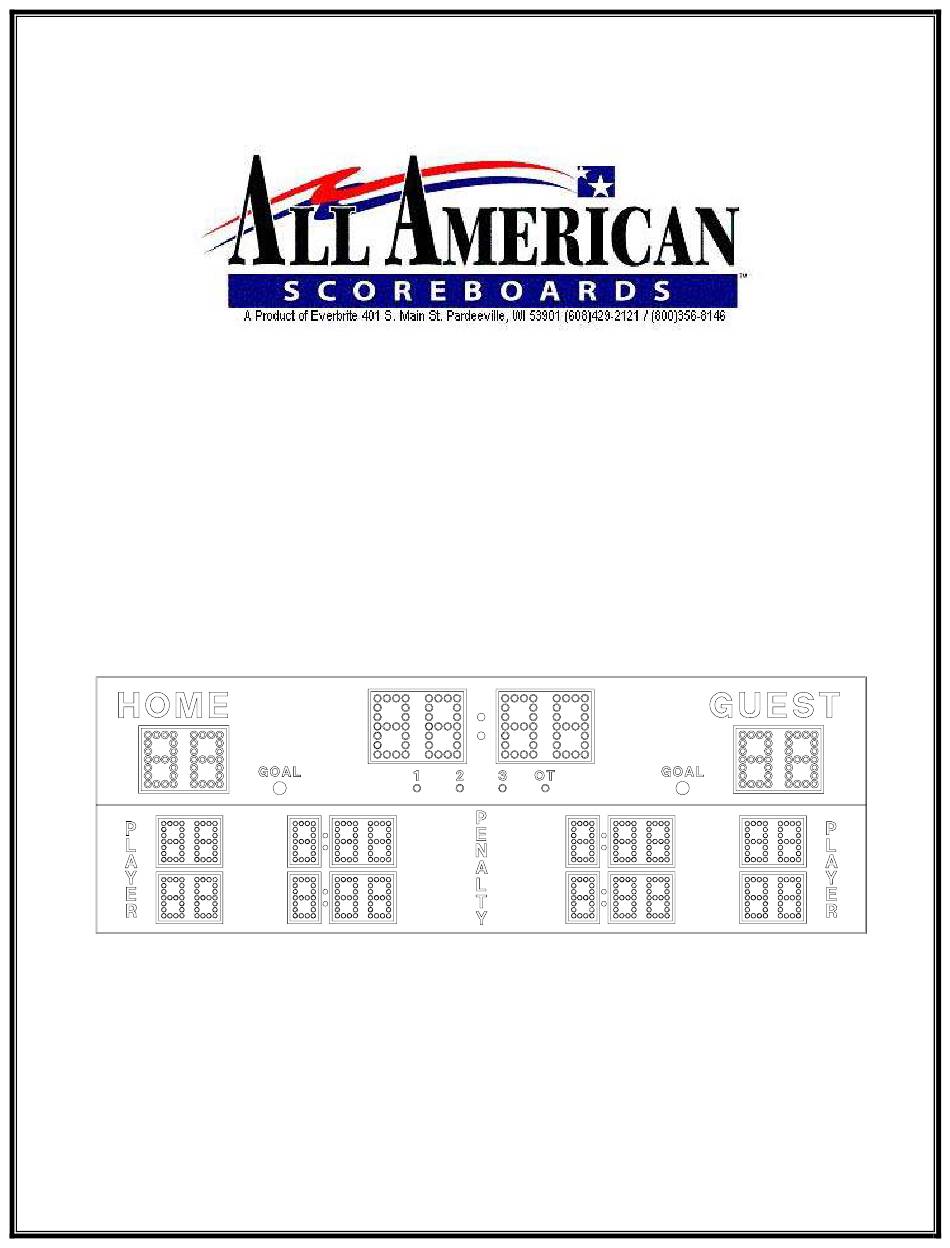

- Page 1 OPERATING INSTRUCTIONS AND SERVICE MANUAL OUTDOOR HOCKEY SCOREBOARD MODEL MP-3518 With MP-3000 Control EFFECTIVE S.N. 11149, JAN 16,1996...
-
Page 2: Table Of Contents
TABLE OF CONTENTS GENERAL INFORMATION DESCRIPTION IDENTIFICATION DAMAGE DAMAGE CLAIM PROCEDURE INSTALLATION GENERAL INFORMATION INSPECTION PRE-TEST INSTALLATION ELECTRICAL CONNECTIONS CONTROL CONSOLE OPERATION SCOREBOARD POWER CONSOLE DISPLAY CONSOLE POWER TIME OF DAY TIMER TO USE SCOREBOARD TIME SETTING AND CONTROL TEAM SCORES HORN GOAL INDICATOR 3.10... -
Page 3: General Information
1. GENERAL INFORMATION 1.1 DESCRIPTION Your All-American scoreboard has been carefully inspected and tested before leaving the factory. It is possible, however, that components may be loosened or forced out of adjustment in transit. If this occurs, follow the troubleshooting guide (section 4). If equipment then fails to operate, contact immediately: ALL-AMERICAN Service Department EVERBRITE LLC... -
Page 4: Installation
? ft Control Cable (if ordered) IMPORTANT! The MP-40 cable supplied by ALL AMERICAN SCOREBOARDS for use on the Microprocessor based scoreboards is specifically designed for this system. Use of a substitute cable may void the warranty on the scoreboard! 2.2 Inspection... -
Page 5: Electrical Connections
Select the location best suited for visibility by the majority of spectators. Preferred position is facing east or north to avoid direct sunlight on the face of the scoreboard, if day games are played . For permanent mounting to uprights, see the enclosed installation drawing in section 6. The MP-40 data cable carries only low voltage signals and therefore can be installed with or without conduit. -
Page 6: Time Of Day Timer
When first turned on; the console display should show as follows. SCOREBOARD CONTROL 1991 VERSION 3.3 3.4 Time of Day Timer To set the scoreboard for Time of Day; push SET . The LCD display should read as follows: ** TIME OF DAY ** TIME = 00 Push the keys for the current time, and then push ENTER . -
Page 7: Team Scores
up symbol is displayed next to the time on the LCD display. If in the DOWN mode there is no arrow displayed. Switching the time toggle switch to the IN and OUT position, starts and stops the timer. Push RESET to return the timer to the previously set value. 3.7 Team Scores The Home and Guest Scores can be changed in three different ways. -
Page 8: Penalty Time Control
Push: TIME OUT TIMER to start the 1 minute timer. The LCD will show "TIME OUT = 1:00" and start to count down. When 1 minute has elapsed the internal beeper sounds, and the display returns to the current game time. If you want to return to play before the Time Out Timer gets back to zero, push: CLEAR and the console will return to play mode. -
Page 9: Troubleshooting Guide
department. If a problem not described in the guides exists, contact the customer service department immediately. Refer to the diagrams provided for assistance in troubleshooting scoreboard malfunctions. 4.4 Troubleshooting Guides (A) Scoreboard doesn't light and console doesn't work (a) Check that the main power switch is turned on. (b) Replace any defective or blown fuses. - Page 10 (E) The scoreboard works, but some lights stay on all the time (a) With the main power "OFF", switch the plug from the bad digit with the plug for a known good digit. EXAMPLE: Plug "C" into "D" and "D" into "C" locations. (b) Turn the power back on.
-
Page 11: Replacement Parts List
5. REPLACEMENT PARTS LIST 5.1 Scoreboard Display Parts figure 1 DISPLAY ASSEMBLY... - Page 12 REPLACEMENT PARTS LIST (MP-3518 Hockey) fig.& MFG PART VENDOR index NUMBER DESCRIPTION PART # SU608800 Display Set, MP-3518 SU608800 850024 Lamp, 25W/130V Red 25A19 RED 850029 Lamp, 25W/130V IF 25A19 IF 930677 Lamp, 30W/130V IF 30A15 IF 151396 Lamp, 55W/130V PAR Spot...
-
Page 13: Scoreboard Controller Assembly Parts
5.2 Scoreboard Controller Assembly Parts figure 2 CONTROLLER ASSEMBLY REPLACEMENT PARTS LIST (MP-3518 Controller Assembly) fig.& MFG PART VENDOR index NUMBER DESCRIPTION PART # SU610100 Controller Assembly SU610100 119323 Receiver Board 119323 *** PROGRAM 3MP-CNT-V12 (jumper to right) *** 118922... -
Page 14: Diagrams
6. DIAGRAMS 6.1 Control Console Keyboard and Slipsheet Layout... -
Page 15: Scoreboard System Layout
CONSOLE KEYBOARD 6.2 Scoreboard System Layout... - Page 16 SYSTEM LAYOUT 6.3 Single Junction Box Wiring...
-
Page 17: Power Wiring Diagram
SINGLE JUNCTION BOX WIRING 6.4 Power Wiring Diagram... - Page 18 POWER WIRING 6.5 Controller Assembly Wiring...
-
Page 19: Microprocessor 4 X 7 Lamp Pattern (8 Bit)
CONTROLLER ASSEMBLY 6.6 Microprocessor 4 X 7 Lamp Pattern (8 Bit) - Page 20 MICROPROCESSOR 4 X 7 (8 BIT) LAMP PATTERN 6.7 Figuregram Wiring...
- Page 21 8 BIT FIGUREGRAM WIRING 6.8 Jumper Location on 3 Position System All of the 3 position drivers and receivers are identical except for the jumper on each board. Make sure the jumpers are set for the model of scoreboard you are installing them into. On the receiver board (refer to figure);...
- Page 22 JUMPER LOCATION 6.9 Triac Placement The triac is the switch that controls the figuregram lamps. The triacs for any given figuregram are adjacent to the twelve pin connector on the driver board that controls that figuregram. Shown below is the triac placement and bit designation relative to the figuregram bit pattern.
-
Page 23: Installation Drawing
MP TRIAC PLACEMENT 6.10 Installation Drawing With Non-Illuminated Ad. Panel... - Page 24 6.10 (cont.) Installation Drawing With Illuminated Ad. Panel...
- Page 25 6.10 (cont.) Installation Cont. and Alternate Methods...
