Gima OXY-0 CMS50Q1 Instructions To User

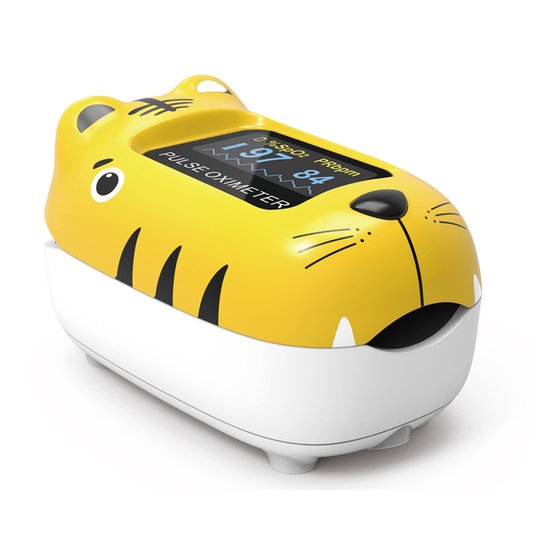

Pediatric oximeter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PROFESSIONAL MEDICAL PRODUC TS
PULSOXIMETRO PEDIATRICO OXY-0
OXY-0 PEDIATRIC OXIMETER
OXYMÈTRE PÉDIATRIQUE OXY-0
OXÍMETRO PEDIÁTRICO OXY-0
OXY-0 PEDIATRIC OXYMETER
OXY-0 PULSOXIMETRU PEDIATRIC
