- Page 1 90551 CONGRATULATIONS ON YOUR NEW PIZZA OVEN 13 " USER MANUAL...

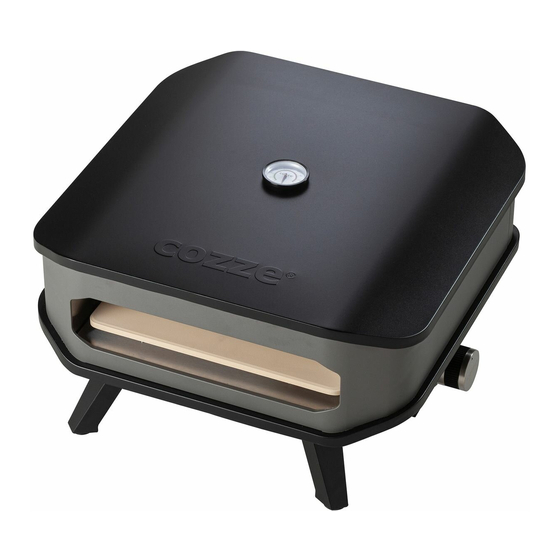

- Page 2 USER MANUAL FOR GAS PIZZA OVEN （Drawings for reference only） Model No.: 90551 Description: GAS PIZZA OVEN 13 INCH - For universal (LPG) Gas Dimensions: 52(W)x 52(D) x 28.5(H)cm Gas Connector: 5/8’’ – 18UNF WARNING FOR YOUR SAFETY USE OUTDOORS ONLY.
-
Page 3: Table Of Contents
PART LIST ASSEMBLY INSTRUCTIONS TROUBLE SHOOTING WARRANTY 22~23 CONTACT INFORMATION For spare parts, service and warranty queries, please contact： Mayo Hardware Pty Ltd through the details below. Phone (Aus): 1300 360 211 Phone (NZ): 09 415 6240 Email: cozze@mayohardware.com.au 3/24... -
Page 4: Features & Benefits
FEATURES & BENEFITS TECHNICAL INFORMATION MODEL SAI № INJECTOR (MM) PRESSURE (KPA) INP/BURNR (MJ/H) TOTAL (MJ/H) 90551 SAI-400428 Φ1.19 2.75 1x18 Total nominal gas consumption: 18MJ/h Minimum clearance of appliance to combustible surfaces is 100cm at the rear, sides and overhead. -
Page 5: Positioning The Pizza Oven
POSITIONING THE PIZZA OVEN This appliance shall only be used in an above ground open air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. The pizza oven must not be installed under or on any combustible material. Minimum clearance from any combustible materials on ALL sides of the pizza oven is 1000mm and 1000mm overhead. -
Page 6: Safety Information 6~9
SAFETY INFORMATION SAFETY COMPLIANCE LABEL While there is a requirement under the regulations for all gas products to be safe, the Australian and New Zealand regulatory environment establishes the limits of fundamental safety. The safety compliance label confirms that this pizza oven has been certified as compliant and deemed suitable for importing and operation in Australia and New Zealand. - Page 7 Keep these instructions for future reference. Installer/Assembler: leave these instructions with the consumer. Read the following instruction carefully and be sure your pizza oven is properly installed, assembled and cared for. Failure to follow these instructions may result in serious bodily injury and/or property damage.
- Page 8 READ All SAFE GUARDS AND INSTRUCTIONS THOROUGHLY! YOUR SAFETY IS VERY IMPORTANT – FAILURE TO FOLLOW PROPER PROCEDURES AND SAFEGUARDS MAY RESULT IN PROPERTY DAMAGE OR PERSONAL INJURY. WARNING WARNING This appliance shall be used outdoors only. • DO NOT store or use gasoline or other •...
-
Page 9: Use And Characteristics 9~11
OUTDOOR USE ONLY WARNING • IF BURNER DOES NOT IGNITE, TURN • DO NOT SPRAY AEROSOLS IN THE OFF THE CONTROL KNOB AND GAS VICINITY OF THIS APPLIANCE WHILE AND WAIT 5 MINUTES BEFORE IT IS IN OPERATION. TRYING TO LIGHT IT AGAIN. •... - Page 10 DO NOT cool the stone with water when the stone is hot After cleaning the stone with water, please dry the stone before use. This can be done in a conventional Children should not be left alone or unattended in an area where the oven is being used. Do not allow children to sit, stand or play around the oven at any time.
-
Page 11: Lighting The Pizza Oven 11~12
INSTRUCTIONS FOR USE Follow these instructions carefully to avoid seriously damaging your pizza oven and causing injury to yourself and to property. 1. Assemble the pizza oven by following the assembly instructions carefully. 2. Connect the gas hose to the pizza oven. Connect the regulator to the hose. 3. -
Page 12: Regulator & Hose
purchased the pizza oven, or a qualified gas engineer for assistance or repair. Never try to rectify the problem yourself as this could result in serious injury and/or property damage. Clean the appliance of excess fat, before storage, with a damp cloth using a mild detergent solution as the cleaning agent. -
Page 13: Gas Cylinders
GAS CYLINDERS The gas cylinder should not be dropped or handled roughly! If the appliance is not in use, the cylinder must be disconnected. Replace the protective cap on the cylinder after disconnecting the cylinder from the appliance. Cylinders must be stored outdoors in an upright position and out of the reach of children. The cylinder must never be stored where temperatures can reach over 50°C. - Page 14 CONNECTING THE HOSE AND REGULATOR TO THE LPG CYLINDER • Only use the hose assembly supplied with this appliance for direct connection to the cylinder. DO NOT USE ADAPTORS. DO NOT use any other hose assembly. Check the gas hose for damage or signs of abrasion before each use.
- Page 15 LEAK TESTING BE SURE TO CHECK FOR LEAKS AT ALL CONNECTIONS LCC27 valve + LCC27 appliance connection STEP 1 Open the gas control valve on the cylinder. STEP 2 Check for leaks by brushing a solution 1/2 water and 1/2 soap over all gas system joints, including all valve connections, hose connections and regulator connections.
-
Page 16: Gas Leak Test
WARNING A frosty regulator indicates gas overfill. Immediately close LPG cylinder valve and call local LPG dealer for assistance. DO NOT release liquid petroleum gas (LPG) into the atmosphere. To remove gas from LPG cylinder, contact a certified LPG dealer or local fire department for assistance. -
Page 17: Care & Maintenance 17~18
Step 3 Apply the soap solution to all the gas connections using a soft bristle brush or spray bottle. If you smell gas and/or soap bubbles start to appear from a gas connection it is a sign that a leak is present. If there is a leak, turn off your gas supply and tighten the connection. - Page 18 PIZZA STONE Use a mild soapy water solution. Non-abrasive scouring powder can be used on stubborn stains, then rinse with water. BURNER Turn the gas OFF at the control knob and disconnect the cylinder. Remove cooling grate. Clean the burner with a soft brush or blow clean with compressed air and wipe with a cloth. Clean any clogged ports with a pipe cleaner or stiff wire (such as an opened paper clip).
-
Page 19: Exploded Product Diagram
EXPLODED PRODUCT DIAGRAM PART LIST PART NAME PIZZA OVEN (WITH REGULATOR & HOSE) PIZZA STONE 19/24... -
Page 20: Assembly Instructions
ASSEMBLY INSTRUCTIONS Step 1: put the pizza stone into the pizza oven Step 2: put the battery into the battery box, make sure the battery is installed in correct place. 20/24... -
Page 21: Trouble Shooting
TROUBLE SHOOTING Problem SOLUTION Burner will not ignite If ignition does not occur in 5 seconds: STEP 1 Turn the burner controls OFF. STEP 2 Wait 5 minutes. STEP 3 Repeat the lighting procedure. If this does not work, to determine the cause, please try to ignite your appliance with a match. - Page 22 WARRANTY Thank you for purchasing one of our quality COZZE PIZZA OVENS. YOUR PIZZA OVEN IS COVERED AGAINST DEFECTS FOR A PERIOD OF 2 YEARS FOR PARTS AND LABOUR, REPAIR OR REPLACEMENT. THIS WARRANTY EXCLUDES SURFACE RUST AND DAMAGE CAUSED BY ABUSE OR NEGLECT.
-
Page 23: Warranty 22~23
• Unauthorized modifications or repairs during the warranty period. FOR TECHNICAL ASSISTANCE Refer to the troubleshooting section of this operating manual or contact the Mayo Hardware through the below details: Mayo Hardware Pty Ltd Phone (Aus): 1300 360 211 Phone (NZ): 09 415 6240 Email: cozze@mayohardware.com.au 23/24... - Page 24 90551 FIND MORE INSPIRATION ONLINE AT COZZE-PIZZA.COM Mayo Hardware Pty Ltd Phone (Aus): 1300 360 211 Phone (NZ): 09 415 6240 Email: cozze@mayohardware.com.au...
