Cudy FS105D Quick Installation Manual

3
Main Features
IEEE802.3, IEEE802.3i, IEEE802.3u,
Standards
IEEE802.3x,IEEE802.3az
Network Media 10BASE-T: UTP category 3,4,5 cable
(Cable) 100BASE-Tx: UTP category 5, 5e cable
Number of Ports 5 x 10/100Mbps Auto-Negotiation ports
Transfer Method Store-and-Forward
MAC Address Table 1K
Switching Capacity 1Gbps
Packet Forwarding Rate 744Kpps
Indicators Per Device Power
Per Port Link/Activity
Power Supply
DC：5V,0.5A External Power
Power Consumption Maximum: 1.3W
Dimensions 88.2*52.7*21.8 mm (L x W x H)
Operating Temperature: 0℃-45℃
Working Humidity: 10%-90%(non-condensing)
Environment
Storage Temperature: -40℃-70℃
Storage Humidity: 5%-90%(non-condensing)
CE Mark Warning
This is a class B product. In a domestic environment, this product
may cause radio interference, in which case the user may be
required to take adequate measures.
EU declaration of conformity
Cudy hereby declares that the device is in compliance with the
essential requirements and other relevant provisions of directives
2014/30/EU, 2014/35/EU, 2009/125/EC and 2011/65/EU.The
original EU declaration of conformity may be found at
http://www.cudy.com/en/ce
For support and warranty, please visit: http://www.cudy.com/.
Specifications are subject to change without notice. Cudy is a
registered trademark of Shenzhen Cudy Technologies Co., Ltd.
Other brands and product names are trademarks or registered
trademarks of their respective holders.Copyright©2022 Shenzhen
Cudy Technology Co., Ltd. All rights reserved.
Quick Installation Guide

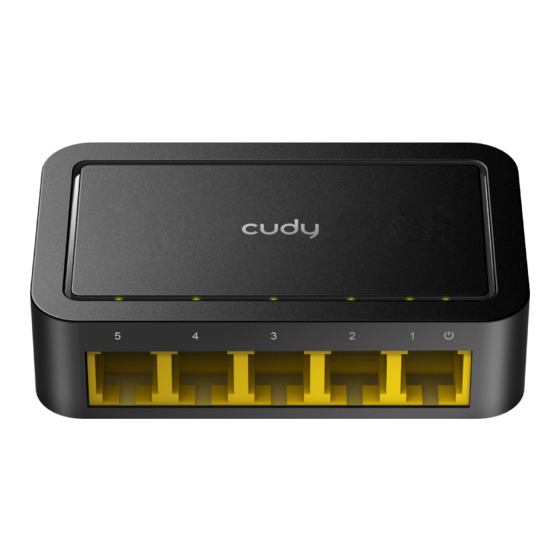

5-Port 10/100Mbps Desktop Switch
Model: FS105D
Email:
support@cudy.com
810600130
Website:
www.cudy.com
