Cudy FS1016D Quick Installation Manual

3
Main Features

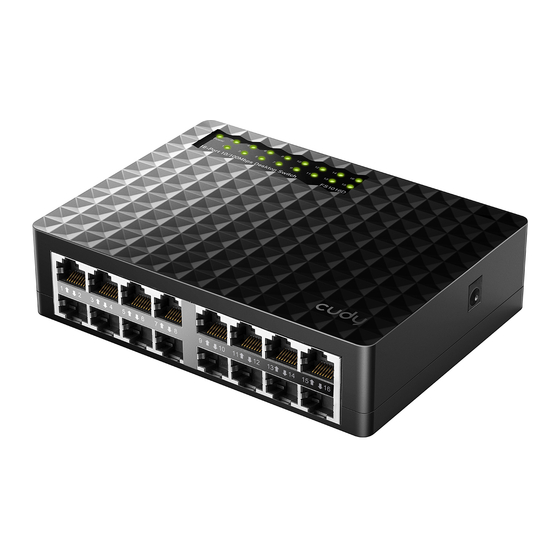

Model FS1016D
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Interface 16 10/100Mbps RJ45 Ports
Forwarding Mode Store-and-Forward
Power Supply Output: 5VDC/1A
Dimensions 138*103*35 mm
Weight
0.228kg
Fanless Yes
Switching Capacity 3.2Gbps
Packet Filtering 148,800 ppsfor 100M
Forwarding Rate 14,880 pps for 10M
MAC Address Table 8K
Operating Temperature 0°C~40°C(32°F~104°F)
Storage Temperature 40eC*70°C(-40eF-158°F)
Operating Humidity 10%~90%RH non-condensing
Storage Humidity 5%~90%RH non-condensing
CE Mark Warning
This is a class B product. In a domestic environment, this product
may cause radio interference, in which case the user may be
required to take adequate measures.
EU declaration of conformity
Cudy hereby declares that the device is in compliance with the
essential requirements and other relevant provisions of directives
2014/30/EU, 2014/35/EU, 2009/125/EC and 2011/65/EU.The
original EU declaration of conformity may be found at
http://www.cudy.com/en/ce
For support and warranty, please visit: http://www.cudy.com/.
Specifications are subject to change without notice. Cudy is a
registered trademark of Shenzhen Cudy Technologies Co., Ltd.
Other brands and product names are trademarks or registered
trademarks of their respective holders.Copyright©2022 Shenzhen
Cudy Technology Co., Ltd. All rights reserved.
Quick Installation Guide
Model: FS1016D
Email:
support@cudy.com
810600151
Website:
www.cudy.com
