Cudy GS1010PE Quick Installation Manual

1

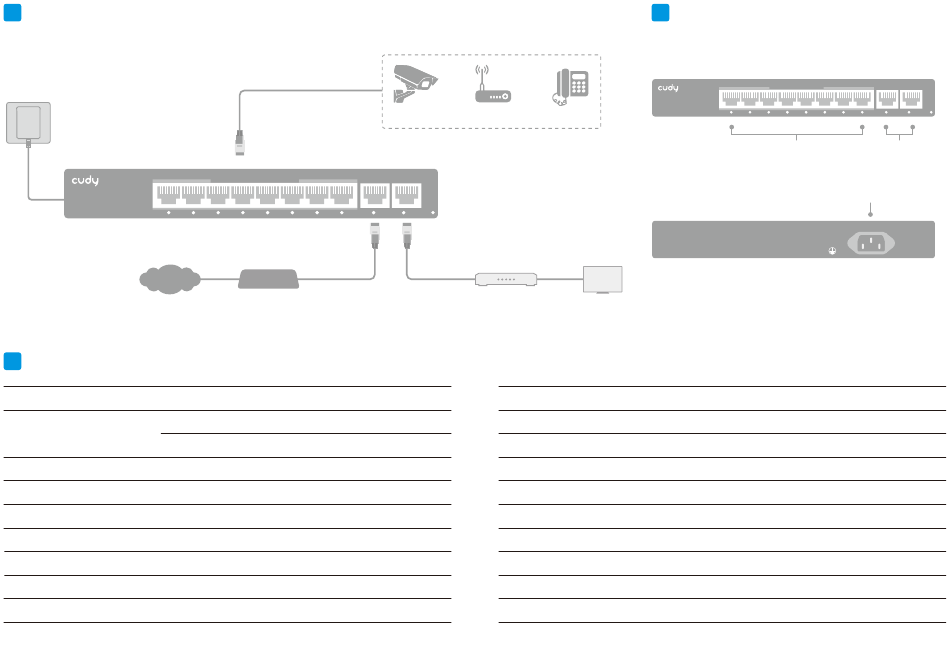

Hardware Connection

Power Socket
10-Port Gigabit PoE+ Switch
120 Watts
GS1010PE
1
Internet
3
Specifications
Model GS1010PE
IEEE802.3 / IEEE802.3u
Network Protocol
IEEE802.3x / IEEE802.3af/at
PoE Standard IEEE802.3at (30W) and IEEE802.3af (15.4w)
POE port output DC 48-55V
Power over spare pairs 1/2(+) , 3/6 (-)
Power Pin
AC Input Voltage AC100~240V
Output 52V ~ 2.3A
Total Power 120W
Dimension(L×W×H) 222mm*163mm*40mm
10/100/1000M PoE/PoE+ Port
2 3 4 5 6 7 8
Router
Powered Device (PD)
IP Camera Wireless AP
9 10 PWR
NVR
Bandwidth
MAC Address
Packet Buffer Memory
Forwarding Mode
Working Temperature
Storage Temperature
Working humidity
Storage humidity
Working hight
Storage hight
2

Physical Appearance

Front board
10-Port Gigabit PoE+ Switch
120 Watts
Smart VoIP
GS1010PE
1
Back board
Monitor
20Gbps (non-blocking)
2K MAC address table
2M
Store-And-Forward
-20~50℃
-40~80℃
Max relative humidity 90%, non-condensing
Max relative humidity 95%, non-condensing
Max 10,000 feet（3,000 meters）
Max 10,000 feet（3,000 meters)
10/100/1000M PoE Port
2 3 4 5 6 7 8 9 10 PWR
PoE Port Ethernet Port
Power input port
AC INPUT
