Cudy GS105 Quick Installation Manual

3
Main Features
IEEE802.3 10Base-T,IEEE802.3u
Standards
100Base-TX, IEEE802.3az,IEEE802.3ab
10BASE-T: UTP category 3,4,5 cable (maximum 100m)
Network Media
100BASE-Tx: UTP category 5, 5e cable (maximum 100m)
(Cable)
1000BASE-T: UTP category 5e, 6 cable (maximum 100m)
Number of Ports 5 x 10/100/1000Mbps Auto-Negotiation ports
10M/100M: Green
Link/Act
1000M: Amber
LED
Green
Power
Store-and-Forward
Transfer Method
10Gbps
Switching Capacity
2K
MAC capacity
10Mbps: 14880pps
Frame Filtering
100Mbps: 148800pps
and Forward Rate
1000Mbps: 1488000pps
Dimensions 140*78*28 mm (L x W x H)
Operating Temperature: 0℃ - 40℃
Storage Temperature: -10℃ - 70℃
Environment
Operating Humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
Power Supply Input: DC 5V /1A(adapter)
Consumption Consumption: 2.75W
CE Mark Warning
This is a class B product. In a domestic environment, this product
may cause radio interference, in which case the user may be
required to take adequate measures.
EU declaration of conformity
Cudy hereby declares that the device is in compliance with the
essential requirements and other relevant provisions of directives
2014/30/EU, 2014/35/EU, 2009/125/EC and 2011/65/EU.The
original EU declaration of conformity may be found at
http:// www.cudytech.com/en/ce
For support and warranty, please visit: http://www.cudytech.com/.
Specifications are subject to change without notice. Cudy is a
registered trademark of Shenzhen Cudy Technologies Co., Ltd. Other
brands and product names are trademarks or registered trademarks
of their respective holders.Copyright@2019 Shenzhen Cudy
Technology Co., Ltd. All rights reserved.
5

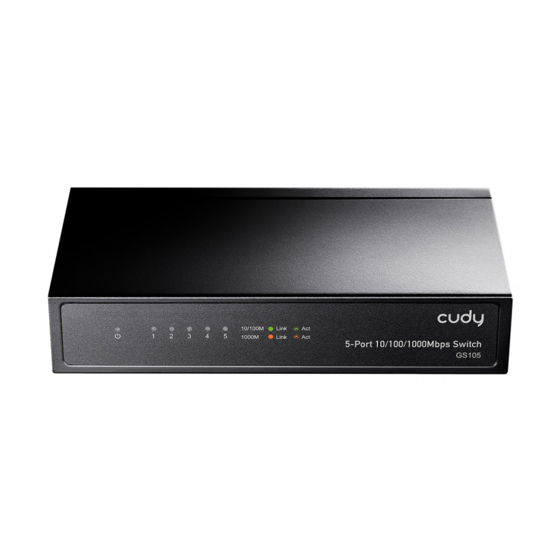

Quick Installation Guide
5-Port 10/100/1000Mbps Switch
810600023
Model: GS105
