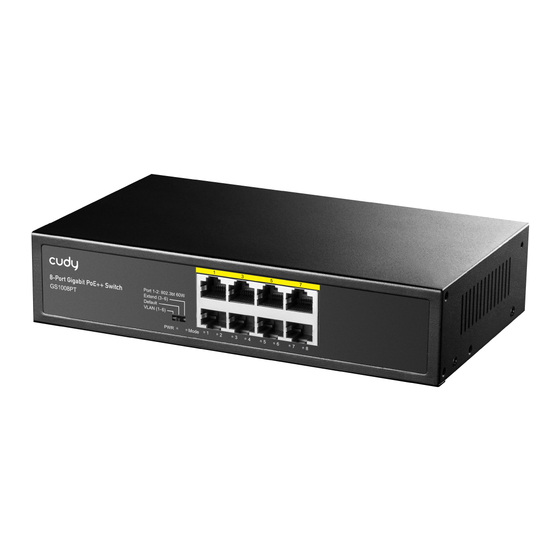

Cudy GS1008PT Quick Start Manual

1 Hardware Connection
Power Socket
3
Specifications
Model GS1008PT
Input: AC 100-240V, 50/60Hz
Power
8 *10/100/1000M PoE Port
Ethernet
16Gbps
Switching Capacity
Throughput 11.9Mpps
1.5Mb
Packet Buffer
2K
MAC Address
9216bytes
Jumbo Frame
Store and forward
Transfer Mode
100000 hour
MTBF
0~40°C
Working Temperature
-40~85°C
Storage Temperature
Powered Device (PD)
Ethernet Device
IP Camera
(switch, router, etc.)
Router
2
Front board
Wireless AP Smart VoIP
Internet
Network protocol IEEE802.3 (10Base-T) / IEEE802.3u (100Base-TX)
IEEE802.3ab(1000Base-TX) / IEEE802.3x (Flow control)
PoE Protocol IEEE802.3af （15.4W）IEEE802.3at （30W）
IEEE802.3bt （60W）
EMI: FCC Part 15 CISPR (EN55032) class A
Industry Standard EMS: EN61000-4-2 (ESD),EN61000-4-4 (EFT),EN61000-4-5 (Surge)
Shock: IEC 60068-2-27 / Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
10Base-T : Cat3、4、5 or above UTP(≤100m)
Network Medium
100Base-TX : Cat5 or above UTP(≤100m)
1000Base-TX : Cat5 or above UTP(≤100m)
Physical Appearance
Ethernet PoE Port
8 10/100/1000Mbps PoE Ports
120 Watts total PoE budget
60 Watts maximum for port #1~#2 (802.3bt/at/af)
30 Watts maximum for port #3~#8 (802.3at/af)
VLAN mode support for port #1~#6
Extend mode support for port #3~#6
