Cudy R700 Quick Installation Manual

Quick Installation Guide
Need help?
Email: Driver & Manual:
support@cudy.com www.cudy.com/download
1
Connect a computer to the LAN port of the router with an
RJ45 cable properly. If your computer is configured with
a fixed IP, change it to Obtain an IP address automatically.
LAN WAN/LAN WAN
Power
Reset
System

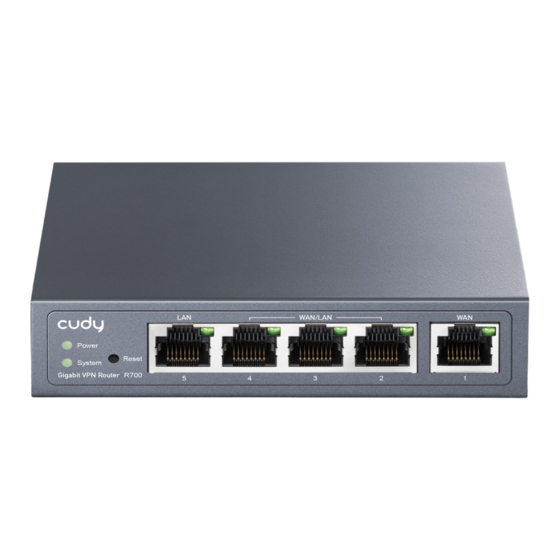

Gigabit VPN Router R700
5 4 3 2 1
Router
Connection
Note: Use the power
adapter provided in the
package to power on
the router.
2
Launch a web browser, and enter http://cudy.net/ or
http://192.168.10.1/ in the address bar. Use admin for
password to log in.
PC
Note: If the login window does not appear, please refer to FAQ > Q1.
R700
LAN WAN/LAN
Power
Reset
System
Gigabit VPN Router R700
5 4
http://cudy.net/
Auto
admin Password
Log In
Modem
WAN
3 2 1
3
After a successful login, you can configure the function by
clicking the menu on the top of the screen.
System Status General Settings
WAN1 LAN
Status Not connected Status
Protocol DHCP client IP Address
Status - MAC-Address XX:XX:XX:XX
More Details More Details
Configure WAN/LAN Ports: General Settings -> WAN Mode
Setup Internet Connection: General Settings -> WAN Settings
Setup VPN Parameters: General Settings -> VPN
Enjoy the internet!
Internet
Advanced Settings Diagnostic Tools
DHCP Server
Enabled Status Enabled
XX.XXX.XX.X IP Start XXX.XXX.XX.X
IP End XXX.XXX.XX.X
More Details
