Cudy FS1010PG Quick Installation Manual

1

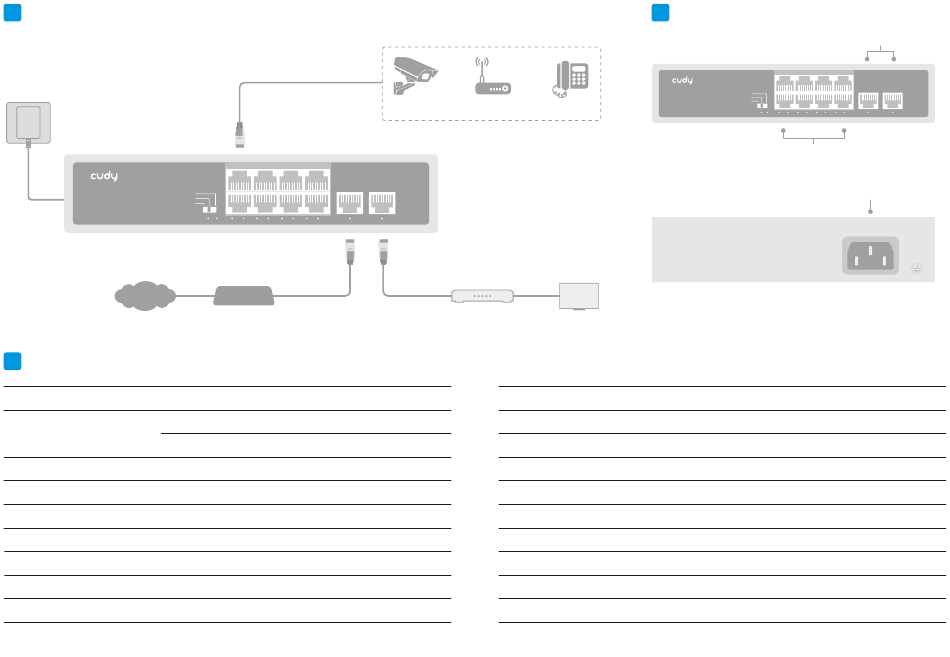

Hardware Connection

Power Socket
8-Port 10/100M PoE+ Switch with
Extend
2 Gigabit Uplink Ports
Default
FS1010PG
Internet
3
Specifications
Model FS1010PG
IEEE802.3 / IEEE802.3u
Network Protocol
IEEE802.3x / IEEE802.3af/at / IEEE802.3ab
PoE Standard IEEE802.3at (30W) and IEEE802.3af (15.4w)
PoE Voltage DC 52V
Power over spare pairs 1/2(+) , 3/6 (-)
Power Pin
AC Input Voltage AC100~240V
Output 52V ~ 2.3A
Total Power 120W
Dimension(L×W×H) 200mm*120mm*45mm
PoE or Ethernet Device
(switch, router, etc.)
1 3 5 7
VLAN
PWR SW 1 2 3 4 5 6 7 8 G9
Router
Powered Device (PD)
IP Camera Wireless AP Smart VoIP
G10
NVR
Bandwidth
MAC Address
Packet Buffer Memory
Forwarding Mode
Working Temperature
Storage Temperature
Working humidity
Storage humidity
Working hight
Storage hight
2

Physical Appearance

Front board

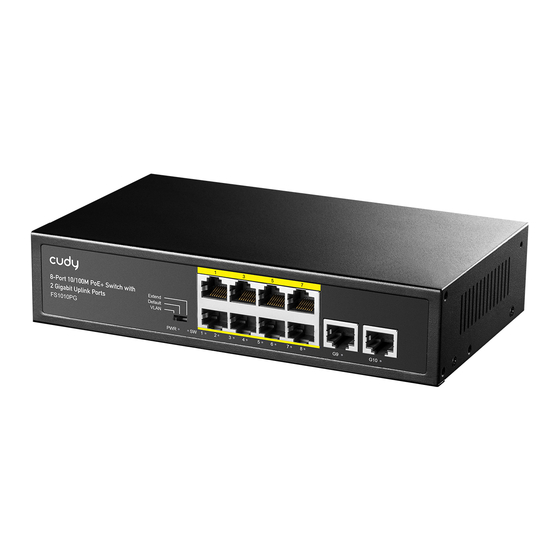

8-Port 10/100M PoE+ Switch with
Extend
2 Gigabit Uplink Ports
Default
VLAN
FS1010PG
Back board
Monitor
2Gbps (non-blocking)
1K MAC address table
448K
Store-And-Forward
-20~50℃
-40~85℃
Max relative humidity 90%, non-condensing
Max relative humidity 95%, non-condensing
Max 10,000 feet（3,000 meters）
Max 10,000 feet（3,000 meters)
Gigabit Port
1 3 5 7
PWR SW 1 2 3 4 5 6 7 8 G9 G10
10/100Mbps PoE Port
Power input port
AC INPUT
100V-240V
