Application Note for 32-bit NuMicro® Family
Document Information
This user manual provides information about hardware features
Abstract
and information about using this learning board. The Nu-LB-
Nano130 learning board is similar to other development boards.
Users can use it to develop and verify applications to emulate the
real behavior.

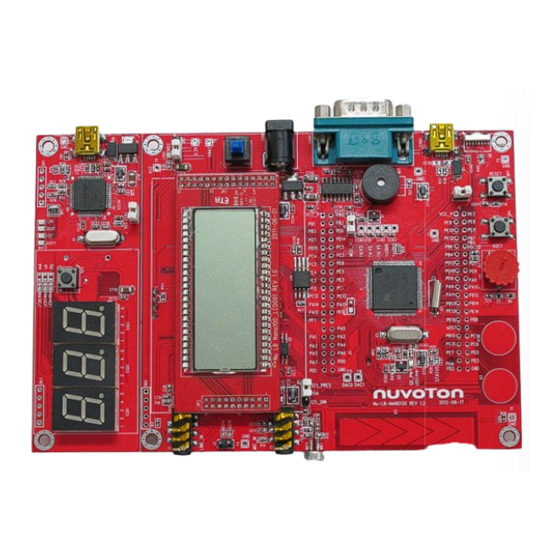

Nu-LB-Nano130 Board
Apply to
User Manual
Nu-LB-Nano130 User Manual
Rev.1.01 — Dec.17, 2012
Rev. 1.01 — Dec 17, 2012
User Manual
© 2012 Nuvoton Technology Corp.
1 of 60

Advertisement

Table of Contents
loading

Related Manuals for Nuvoton NuMicro Nu-LB-Nano130

Summary of Contents for Nuvoton NuMicro Nu-LB-Nano130

  • Page 1 Nano130 learning board is similar to other development boards. Users can use it to develop and verify applications to emulate the real behavior. Nu-LB-Nano130 Board Apply to © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 1 of 60...

  • Page 2: Table Of Contents

    2.1.1 NuMicro Nano130 Pin Description ..................18 Jumpers on Nu-LB-Nano130 ...................... 41 2.2.1 Jumper Settings ......................... 41 SCHEMATIC ........................42 BOM LIST .......................... 52 © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 2 of 60...

  • Page 3: Introduction

    User Manual NuMicro Family 1 Introduction The Nu-LB-Nano130 is an evaluation board for NUVOTON’s Cortex™-M0 based Nano100 series microcontrollers, and provides a complete development environment for Nano130 microcontrollers which has 8/16K-byte internal SRAM and 32/64/128K-byte embedded flash, build-in 1.8V LDO, integrated LCD 4x40 dots, USB 2.0 full-speed port, RTC, 12-bit SAR ADC, 12-bit DAC, capacitive Touch-Key and...

  • Page 4: Nu-Lb-Nano130

    5-key slider and 2-key touch pads onboard. DC power jack: 5V/1A power adapter input. LDO: A 5V to 3.3V/1A LDO that supports Nano130 and on-board devices. © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 4 of 60...

  • Page 5: Pcb Placement And Connectors Location

    This section provides board placement and peripheral connectors’ information for using the Nu-LB-Nano130 board. The following figure shows the connectors’ location of Nu-LB-Nano130 board. CON3 CON4 CON2 Figure 1-2 PCB Placement of Nu-LB-Nano130 Board © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 5 of 60...
  • Page 6 100K HP_ROUT HP_LOUT T/C,100uF CC11 CC12 T/C,100uF PJK-634 C/C,TBD C/C,TBD PHONE-PJK-631 ADAVSS ADAVSS ADAVSS AUDIO SPK out connector: J3  Speaker output of WAU8822 © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 6 of 60...
  • Page 7 SMC Port 1 connector: P1  SMC Port 1 interface. SMC1(Smart Card) VCC_P VCC_SMC 100K VCC_SMC CC61 CC62 SC1_PRES C/C,0.1uF C/C,1uF SC1_CLK SC1_RST VCC_SMC SM Card Slot SC1_DAT © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 7 of 60...
  • Page 8 3.1V~3.6V SWD connector: DH2  5-pin SWD interface for Nano130. HEADER 5 ICE_DAT ICE_CK ICE_RST USB Device connector: CON2  Mini-B type USB connector. © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 8 of 60...
  • Page 9 VDD5.0V 5V Power Adpater UART Port 0 connector: CON4  UART port 0 with RS-232 level shifter for debug console. CON4 RS232_RXD0 RS232_TXD0 DB9_MALE © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 9 of 60...

  • Page 10: Nu-Link Ice Bridge Parts

    Wired Debug Port) and allows you to program and debug embedded programs on the target hardware. To use the Nu-Link-Me Debug adaptor with IAR or Keil, please refer to “Nuvoton NuMicro™ IAR ICE Driver User Manual“or “Nuvoton NuMicro™ Keil ICE Driver User Manual” for details. The two documents will be stored in the local hard disk when user installs each driver.

  • Page 11: Nu-Link Ice Layout And Connectors

    The following figure shows the layout of the Nu-Link ICE connectors. ICE_USB1 Figure 1-4 Nu-Link ICE Layout and Connectors USB device connector: ICE_USB1  Mini-B type USB connector. © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 11 of 60...
  • Page 12 SHIELD SHIELD SHIELD SHIELD USB_MINI_B SWD interface: HEADER5  5-pin interface for SWD connector. DVBUS DVBUS 100K 100K DVBUS HEADER 5 DDAT DCLK DRST © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 12 of 60...

  • Page 13: Lcd Interface

    CONN RECT 10x2 Figure 1-5 Connector Information 1.3.1 LCD Glass Board This section provides LCD glass board figure, layout and 4x40 LCD glass socket information. © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 13 of 60...
  • Page 14 SEG27 ALE/SEG11 SEG14 SEG15 SEG16 SEG17 SEG18 SEG3 SEG19 SEG2 nWE/SEG22 SEG1 nRE/SEG23 SEG0 AD0/SEG24 AD3/SEG33 AD1/SEG25 AD2/SEG32 Figure 1-7 LCD Glass Socket Information © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 14 of 60...

  • Page 15: Tft Lcm Board

    1.3.2 TFT LCM Board This section provides information about 240x320 TFT panel (GFT024CA240320). Figure 1-5 TFT LCM Board LCM interface: CON1  39-pin FPC connector for GFT024CA240320. © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 15 of 60...
  • Page 16 AD3/SEG33 DB13 DB14 C/C,1uF DB15 AD6/SEG36 DB16 AD7/SEG37 DB17 SEG19 LCD_RST RESET SEG27 FMARK FMARK C/C,1uF IOVCC BL_A C/C,1uF BL_K BL_A FPC 1X39 GFT024CA240320 © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 16 of 60...

  • Page 17: Getting Started

    LB-Nano130 board. Due to many IP function are sharing the same I/O pins in Nano130 series MCU, please be carefully to set on-board jumpers to avoid conflicts between functions. Figure 1-6 Nano130 Learning Board © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012...

  • Page 18: Nu-Lb-Nano130 I/O Extension Connectors

    Pin Name Pin Type Description PE.13 General purpose digital I/O pin LCD_SEG27 LCD segment output 27 at LQFP128 PB.14 General purpose digital I/O pin © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 18 of 60...
  • Page 19 External 32.768 kHz crystal output pin X32I External 32.768 kHz crystal input pin PA.11 General purpose digital I/O pin I2C1_SCL I2C 1 clock pin © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 19 of 60...
  • Page 20 LCD segment output 7 at LQFP64 LCD_SEG21 LCD segment output 21 at LQFP128 PA.8 General purpose digital I/O pin I2C0_SDA I2C 0 data I/O pin © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 20 of 60...
  • Page 21 LCD segment output 14 at LQFP128 PB.4 General purpose digital I/O pin UART1_RXD UART1 Data receiver input pin SC0_CD SmartCard0 card detect pin SPI2_SS0 SPI2 1st slave select pin © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 21 of 60...
  • Page 22 EBI chip select enable output pin SPI2_MOSI0 SPI2 1st MOSI (Master Out, Slave In) pin LCD_SEG2 LCD segment output 2 at LQFP64 LCD_SEG10 LCD segment output 10 at LQFP128 © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 22 of 60...
  • Page 23 LCD segment output 9 at LQFP128 PE.7 General purpose digital I/O pin LCD_SEG8 LCD segment output 8 at LQFP128 USB_VBUS POWER SUPPLY: From USB Host or HUB. © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 23 of 60...
  • Page 24 SPI1 serial clock pin LCD_COM3 LCD common output 3 at LQFP64 LCD_SEG5 LCD segment output 5 at LQFP128 PB.3 General purpose digital I/O pin © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 24 of 60...
  • Page 25 General purpose digital I/O pin SPI0_MISO1 SPI0 2nd MISO (Master In, Slave Out) pin LCD_COM2 LCD common output 2 at LQFP128 PC.3 General purpose digital I/O pin © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 25 of 60...
  • Page 26 LQFP64 LCD external capacitor pin of charge LCD_DH2 pump circuit at LQFP128 PC.0 General purpose digital I/O pin SPI0_SS0 SPI0 1st slave select pin © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 26 of 60...
  • Page 27 LCD Unit voltage for LCD charge pump LCD_V1 circuit at LQFP128 PB.10 General purpose digital I/O pin SPI0_SS1 SPI0 2nd slave select pin Timer2 external counter input © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 27 of 60...
  • Page 28 General purpose digital I/O pin SPI0_CLK SPI0 serial clock pin PE.1 General purpose digital I/O pin PWM1_CH3 PWM1 Channel3 output SPI0_SS0 SPI0 1st slave select pin © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 28 of 60...
  • Page 29 SPI1 1st MOSI (Master Out, Slave In) pin UART1_TXD UART1 Data transmitter output pin CTK15 Touch key 15 LCD_SEG31 LCD segment output 31 at LQFP64 PC.10 General purpose digital I/O pin © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 29 of 60...
  • Page 30 LCD segment output 28 at LQFP64 PA.15 General purpose digital I/O pin PWM0_CH3 PWM0 Channel3 output I2S_MCLK I2S master clock output pin Timer3 capture input SC0_PWR SmartCard0 Power pin © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 30 of 60...
  • Page 31 General purpose digital I/O pin PWM0_CH0 PWM0 Channel0 output EBI_AD13 EBI Address/Data bus bit13 Timer 0 capture input I2C0_SDA I2C 0 data I/O pin © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 31 of 60...
  • Page 32 Ground Pin for analog circuit AVSS Ground Pin for analog circuit PA.0 General purpose digital I/O pin ADC analog input0 SC2_CD SmartCard2 card detect CTK8 Touch key 1 © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 32 of 60...
  • Page 33 ADC analog input4 EBI_AD9 EBI Address/Data bus bit9 SC2_PWR SmartCard2 Power pin I2C0_SDA I2C 0 data I/O pin LCD_SEG21 LCD segment output 21 at LQFP64 © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 33 of 60...
  • Page 34 LCD_SEG37 LCD segment output 37 at LQFP128 PA.7 General purpose digital I/O pin ADC analog input7 EBI_AD6 EBI Address/Data bus bit6 Timer2 capture input © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 34 of 60...
  • Page 35 General purpose digital I/O pin UART1 Data transmitter output pin SPI2_CLK SPI2 serial clock pin SC1_DAT SmartCard1 DATA pin ADC analog input9 CTK1 Touch key 1 © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 35 of 60...
  • Page 36 General purpose digital I/O pin I2S_DI I2S data input SPI2_MISO1 SPI2 2nd MISO (Master In, Slave Out) pin SC1_CD SmartCard1 card detect CTK4 Touch key 4 © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 36 of 60...
  • Page 37 Timer 0 capture input SC1_CD SmartCard1 card detect pin PWM0_CH0 PWM0 Channel0 output PC.15 General purpose digital I/O pin EBI_AD3 EBI Address/Data bus bit3 © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 37 of 60...
  • Page 38 LCD segment output 14 at LQFP64 LCD_SEG31 LCD segment output 31 at LQFP128 XT1_IN External 4~24 MHz crystal output pin XT1_OUT External 4~24 MHz crystal input pin © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 38 of 60...
  • Page 39 PB.8 General purpose digital I/O pin STADC ADC external trigger input. Timer0 external counter input INT0 External interrupt0 input pin SC2_PWR SmartCard2 Power pin © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 39 of 60...
  • Page 40 Pin Type I=Digital Input, O=Digital Output; AI=Analog Input; AO=Analog Output; P=Power Pin; AP=Analog Power When some pin is not available in some packages, hardware will auto pull this pin high. © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012...

  • Page 41: Jumpers On Nu-Lb-Nano130

    Location PD4 onboard function selection: SC1_PRES SC1_PRES/I2S_DIN 1-2:SC1_PRES I2S_DIN 2-3:I2S_DIN 3PX1 Peripherals power source selection: VCC_P VDD3.3V 1-2:Power from VDD3.3V 2-3:Power from VCC 3PX1 © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 41 of 60...

  • Page 42: Schematic

    ADC0 ADC4 ADC0 ADC4 NTC1 C/C,0.1uF C/C,0.1uF 100K ADC_GND Title NANO130/ADC ADC_GND ADC_GND Size Document Number <Doc> Date: Wednesday , September 05, 2012 Sheet © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 42 of 60...
  • Page 43 CC26 C/C,0.1uF C/C,4.7uF C/C,4.7uF C/C,4.7uF C/C,0.1uF T/C,10uF/10V C/C,0.1uF C/C,4.7uF Title AUDIO ADAVSS ADAVSS Size Document Number <Doc> Date: Wednesday , September 05, 2012 Sheet © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 43 of 60...
  • Page 44 CTK6 CTKey CTKey _SLIDER CTK15 CTK14 CTK13 CTK12 CTK11 T/C,22uF/10V T/C,22uF/10V Title NANO130/HMI Size Document Number <Doc> Date: Wednesday , September 05, 2012 Sheet © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 44 of 60...
  • Page 45 CC32 CC33 BAT2 T/C,10uF/10V C/C,0.1uF C/C,0.1uF T/C,22uF/10V AA BATTERY BOX Title NUC100/ICE Parts Size Document Number <Doc> Date: Wednesday , September 05, 2012 Sheet © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 45 of 60...
  • Page 46 T16 DAC1 PC12 AD5/DAC1 PC13 PC13 AD2/SEG32 PC14 AD3/SEG33 PC15 NANO130_24 Title NANO130/GPIO Size Document Number <Doc> Date: Wednesday , September 05, 2012 Sheet © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 46 of 60...
  • Page 47 3.3V MCU_STATUS I2C0SCL CC79 I2C0SDA CC74 CC75 Title NANO100/Current Sense C/C,0.1uF C/C,1uF C/C,1uF Size Document Number <Doc> Date: Wednesday , September 05, 2012 Sheet © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 47 of 60...
  • Page 48 CC51 C/C,0.1uF C/C,4.7uF C/C,0.1uF C/C,0.1uF C/C,0.1uF C/C,1uF C/C,0.1uF ADC_GND Title NANO130/MISC. V_SENS_+ Size Document Number <Doc> V_SENS- Date: Wednesday , September 05, 2012 Sheet © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 48 of 60...
  • Page 49 TPAD TPAD TPAD TPAD TPAD TPAD TPAD TPAD VDD3.3V VBAT Title Power Parts Size Document Number <Doc> Date: Wednesday , September 05, 2012 Sheet © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 49 of 60...
  • Page 50 W25XxxL=3.0V~3.6V SD/MMC SOCKET (VIH:0.7Vcc/VIL:0.3Vcc) Operating voltage: 3.1V~3.6V Title SD & SMC & Flash Size Document Number <Doc> Date: Wednesday , September 05, 2012 Sheet © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 50 of 60...
  • Page 51 FPC 1X39 GFT024CA240320 Mode Pull-High 80 Mode 9-bit Pull-Low 80 Mode 8-bit Title BL_K Size Document Number <Doc> Date: Wednesday , July 27, 2011 Sheet © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 51 of 60...
  • Page 52 AD0/SEG24 AD1/SEG25 SEG27 AD2/SEG32 AD3/SEG33 AD6/SEG36 AD7/SEG37 AD8/SEG38 CONN RECT 10x2 Title Size Document Number <Doc> Date: Monday , April 18, 2011 Sheet © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 52 of 60...

  • Page 53: Bom List

    25 CC6,CC8,CC10,CC13,CC29, C/C,1uF CC30,CC41,CC42,CC50,CC55, CC57,CC58,CC59,CC61,CC63, CC66,CC72,CC73,CC74,CC75, CC76,CC84,CC85,CC86,CC88 CC7,CC9 C/C,220pF CC11,CC12,CC14,CC15 C/C,TBD 10 1 CC16 C/C,100pF 11 7 CC17,CC18,CC21,CC22,CC23, C/C,4.7uF CC26,CC46 12 9 CC27,CC28,CC34,CC36,CC37, C/C,20pF CC40,CC70,CC71,CC99 © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 53 of 60...
  • Page 54 HEADER 2 33 2 K1,K2 CTKey 34 1 K3 CTKey_SLIDER 35 6 LED1,LED2,LED3,LED4,LED5, GREEN_LED LED6 36 2 MIC1,MIC2 TP 37 17 NTC1,R2,R11,R14,R25,R26, 100K R27,R28,R29,R31,R38,R41, R50,R53,R63,R68,R69 © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 54 of 60...
  • Page 55 R67 200K 62 3 SSD1,SSD2,SSD3 TOS5101BH 63 1 SW_POWER1 SW DPDT/SM 64 14 T1,T2,T3,T4,T5,T6,T7,T8, TPAD T9,T10,T11,T12,T13,T14 65 1 T15 DAC0 66 1 T16 DAC1 © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 55 of 60...
  • Page 56 U12 MAX9938FH 75 1 U13 FDC606P 76 1 U14 NANO100 LQFP 48 77 1 VR1 50K 78 3 X1,X2,X4 12MHz 79 1 X3 32.768KHz © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 56 of 60...
  • Page 57 LCD Revised: Tuesday, August 23, 2011 Revision: A Bill Of Materials September 2,2011 15:04:49 Page1 Item Quantity Reference Part ______________________________________________ JR1 CONN RECT 15x2 JR2 CONN RECT 10x2 U1 LCD © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 57 of 60...
  • Page 58 Bill Of Materials October 4,2012 10:43:19 Page1 Item Quantity Reference Part ______________________________________________ CC1,CC2,CC3 C/C,1uF CON1 FPC 1X39 JR1 CONN RECT 15x2 JR2 CONN RECT 10x2 R3,R1 © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 58 of 60...
  • Page 59 User Manual NuMicro Family Revision History Rev. Date Description 1.00 11-09-2012 Initially issued. 1.01 12-17-2012 Modified the schematics and the BOM list of Nu-LB-Nano130. © 2012 Nuvoton Technology Corp. User Manual Rev. 1.01 — Dec 17, 2012 59 of 60...
  • Page 60 Nuvoton customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Nuvoton for any damages resulting from such improper use or sales.
