    NuMaker-emWin-N9H30 OVERVIEW The NuMaker-emWin-N9H30 development board is a specific development tool based on N9H30F61IEC IC to provide customers with a low cost and ease of development. It can be easily customized for customers to provide their own HMI (Human Machine Interface) device server products.
  • Page 4 NuMaker-emWin-N9H30 Figure 1-2 NuMaker-emWin-N9H30 Development Board (Rear View) Apr. 22, 2021 Page 4 of 36 Rev 2.12...

  • Page 5: Introduction To Numaker-Emwin-N9H30 Board

    Boot ROM) for booting from SPI Flash or booting from NAND Flash. The NuMaker-emWin-N9H30 solution integrates touchscreen display, voice input/output, rich serial port service and I/O interface, providing multiple external storage methods. It contains two kinds of board, including the NuMaker-emWin-N9H30 board and NuMaker-TFT-LCD7 board. NuMaker-emWin-N9H30 Board Features ...

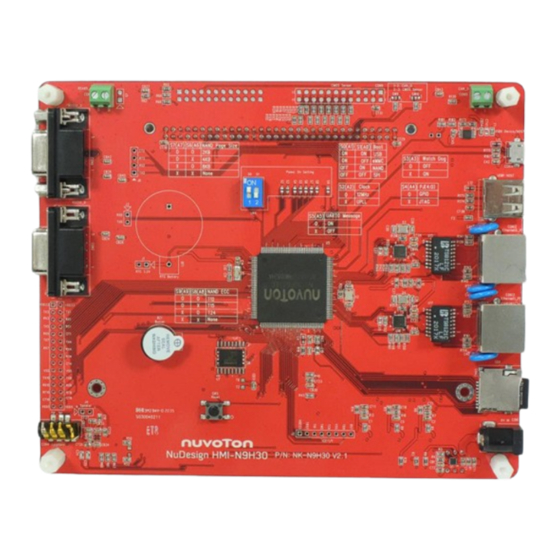

  • Page 6: Numaker-Emwin-N9H30 Board － Front View

    Figure 2-1 shows the main components and connectors from the front view of NuMaker-emWin- N9H30 board.  NuMaker-emWin-N9H30 board and LCD panel board combination connector (CON8). Support 4W/5W resistive touch panel for 24bits RGB888 interface Connector GPIO pin of N9H30 Function CON8.1...
  • Page 7 NuMaker-emWin-N9H30 CON8.27 GPA5 LCD_D5(B5) CON8.28 GPA4 LCD_D4(B4) CON8.29 GPA3 LCD_D3(B3) CON8.30 GPA2 LCD_D2(B2) CON8.31 GPA1 LCD_D1(B1) CON8.32 GPA0 LCD_D0(B0) CON8.33 CON8.34 CON8.35 CON8.36 CON8.37 GPB2 LCD_PWM CON8.38 GPG4 LCD_RST CON8.39 CON8.40 CON8.41 ADC7 CON8.42 ADC3 Vsen CON8.43 ADC6 CON8.44 ADC4 CON8.45...
  • Page 8 NuMaker-emWin-N9H30 CON8.58 CON8.59 CON8.60 CON8.61 CON8.62 CON8.63 Power 5V CON8.64 Power 5V  Power supply switch (SW_POWER1): System will be power on if the SW_POWER1 button is pressed.  3sets indication LEDs: Color Descriptions The system power will be terminated and LED1...
  • Page 9 NAND Flash (128 MB) with Winbond W29N01HVS1NA (U9).  Microphone (M1): Through the nuvoTon NAU88C22 IC sound input.  Audio CODEC IC (U10): nuvoTon NAU88C22 IC connects to N9H30 using I2S interface.  SW6/SW7/SW8: 1-2 short for RS-485_6 function and connected to 2P terminal (CON5 and J5).
  • Page 10 RS-232 Transceiver (U6, U12) NAND Flash (U9) 6set User SWs Power Supply Switch (K1~6) (SW_POWER1) Audio CODEC IC (U10, SW6~8) 3set Indication LEDs Microphone (LED1~3) (M1) Figure 2-1 NuMaker-emWin-N9H30 Board (Front View) Apr. 22, 2021 Page 10 of 36 Rev 2.12...

  • Page 11: Numaker-Emwin-N9H30 Board － Rear View

    NuMaker-emWin-N9H30 NuMaker-emWin-N9H30 Board － Rear View Figure 2-2 shows the main components and connectors from the rear view of NuMaker-emWin- N9H30 board.  +5V In (CON1): Power adaptor 5V input.  JTAG ICE interface (J2). Connector GPIO pin of N9H30 Function J2.1...
  • Page 12 NuMaker-emWin-N9H30 CON7.11 GPI1 UART7_TXD CON7.12 GPH8 UART4_TXD CON7.13 GPI2 UART7_RXD CON7.14 GPH9 UART4_RXD CON7.15 CON7.16 GPH10 UART4_RTS CON7.17 CON7.18 GPH11 UART4_CTS CON7.19 CON7.20 CON7.21 GPB12 UART10_TXD CON7.22 GPH12 UART8_TXD CON7.23 GPB13 UART10_RXD CON7.24 GPH13 UART8_RXD CON7.25 GPB14 UART10_RTS CON7.26 GPH14 UART8_RTS CON7.27...
  • Page 13 NuMaker-emWin-N9H30 J6.4 GPF14 UART2_CTS  RS-232_2 function and connected to DB9 female (CON6) for debug message output.  GPF11~14 connected to 4P terminal (J6).  RS-485_6 selection (CON5, J5, SW6~8): GPIO pin of N9H30 Function GPG11 RS-485_6_DI GPG12 RS-485_6_RO GPG12 RS-485_6_ENB ...
  • Page 14 NuMaker-emWin-N9H30 State Function UART0 debug message Short UART0 debug message Open State Function NAND Flash page size S7/S6 Short/Short S7/S6 NAND Flash page size Short/Open NAND Flash page size S7/S6 Open/Short S7/S6 Open/Open Ignore State Function NAND Flash ECC type...
  • Page 15 RJ45_1 connector with LED indicator (CON13), RMII PHY with IP101GR (U16)  Micro-SD/TF card slot (CON3)  SOC CPU: nuvoTon N9H30F61IEC (U5)  Battery power for RTC 3.3V powered (BT1, J1), can detect voltage by ADC0 RTC power has 3 sources: ...
  • Page 16 (J4) (CON3) Earphone Output +5V In (CON4) (CON1) Buzzer System Reset SW SPI Flash JTAG ICE Power Protection IC (BZ1) (SW5) (U7, U8) (J2) (U1) Figure 2-2 NuMaker-emWin-N9H30 Board (Rear View) Apr. 22, 2021 Page 16 of 36 Rev 2.12...

  • Page 17: Numaker-Tft-Lcd7 － Front View

    NuMaker-emWin-N9H30 NuMaker-TFT-LCD7 － Front View Figure 2-3 shows the main components and connectors from the Front view of NuMaker-TFT- LCD7 board.  7” resolution 800x480 4W resistive touch panel for 24bits RGB888 interface Figure 2-3 NuMaker-TFT-LCD7 Board (Front View) Apr. 22, 2021 Page 17 of 36 Rev 2.12...

  • Page 18: Numaker-Tft-Lcd7 － Rear View

    NuMaker-TFT-LCD7 － Rear View Figure 2-4 shows the main components and connectors from the rear view of NuMaker-TFT- LCD7 board.  NuMaker-emWin-N9H30 and NuMaker-TFT-LCD7 combination connector (CON1). Figure 2-4 NuMaker-TFT-LCD7 Board (Rear View) Apr. 22, 2021 Page 18 of 36...

  • Page 19: Numaker-Emwin-N9H30 And Numaker-Tft-Lcd7 Pcb Placement

    NuMaker-emWin-N9H30 NuMaker-emWin-N9H30 and NuMaker-TFT-LCD7 PCB Placement The following figure shows NuMaker-emWin-N9H30 and NuMaker-TFT-LCD7 PCB placement. Figure 2-6 NuMaker-emWin-N9H30 Front PCB Placement Apr. 22, 2021 Page 19 of 36 Rev 2.12...
  • Page 20 NuMaker-emWin-N9H30 Figure 2-7 NuMaker-emWin-N9H30 Back PCB Placement Apr. 22, 2021 Page 20 of 36 Rev 2.12...
  • Page 21 NuMaker-emWin-N9H30 Figure 2-8 NuMaker-TFT-LCD7 Front PCB Placement Apr. 22, 2021 Page 21 of 36 Rev 2.12...
  • Page 22 NuMaker-emWin-N9H30 Figure 2-9 NuMaker-TFT-LCD7 Back PCB Placement Apr. 22, 2021 Page 22 of 36 Rev 2.12...

  • Page 23: Numaker-Emwin-N9H30 And Numaker-Tft-Lcd7 Schematics

    NuMaker-emWin-N9H30 NUMAKER-EMWIN-N9H30 AND NUMAKER-TFT-LCD7 SCHEMATICS NuMaker-emWin-N9H30 － GPIO List Schematic NuMaker-emWin-N9H30 － System Block Schematic Apr. 22, 2021 Page 23 of 36 Rev 2.12...

  • Page 24: Numaker-Emwin-N9H30 － Power Schematic

    NuMaker-emWin-N9H30 NuMaker-emWin-N9H30 － Power Schematic Apr. 22, 2021 Page 24 of 36 Rev 2.12...

  • Page 25: Numaker-Emwin-N9H30 － N9H30F61Iec Schematic

    NuMaker-emWin-N9H30 NuMaker-emWin-N9H30 － N9H30F61IEC Schematic Apr. 22, 2021 Page 25 of 36 Rev 2.12...

  • Page 26: Numaker-Emwin-N9H30 － Setting, Ice, Rs-232_0, Key Schematic

    NuMaker-emWin-N9H30 NuMaker-emWin-N9H30 － Setting, ICE, RS-232_0, Key Schematic Apr. 22, 2021 Page 26 of 36 Rev 2.12...

  • Page 27: Numaker-Emwin-N9H30 － Memory Schematic

    NuMaker-emWin-N9H30 NuMaker-emWin-N9H30 － Memory Schematic Apr. 22, 2021 Page 27 of 36 Rev 2.12...

  • Page 28: Numaker-Emwin-N9H30 － I2S, I2C_0, Rs-485_6 Schematic

    NuMaker-emWin-N9H30 NuMaker-emWin-N9H30 － I2S, I2C_0, RS-485_6 Schematic Apr. 22, 2021 Page 28 of 36 Rev 2.12...

  • Page 29: Numaker-Emwin-N9H30 － Rs-232_2 Schematic

    NuMaker-emWin-N9H30 NuMaker-emWin-N9H30 － RS-232_2 Schematic Apr. 22, 2021 Page 29 of 36 Rev 2.12...

  • Page 30: Numaker-Emwin-N9H30 － Lcd Schematic

    NuMaker-emWin-N9H30 NuMaker-emWin-N9H30 － LCD Schematic Apr. 22, 2021 Page 30 of 36 Rev 2.12...

  • Page 31: Numaker-Emwin-N9H30 － Cmos Sensor, I2C_1. Can_0 Schematic

    NuMaker-emWin-N9H30 NuMaker-emWin-N9H30 － CMOS Sensor, I2C_1. CAN_0 Schematic 3.10 Apr. 22, 2021 Page 31 of 36 Rev 2.12...

  • Page 32: Numaker-Emwin-N9H30 － Rmii_0_Pf Schematic

    NuMaker-emWin-N9H30 NuMaker-emWin-N9H30 － RMII_0_PF Schematic 3.11 Apr. 22, 2021 Page 32 of 36 Rev 2.12...

  • Page 33: Numaker-Emwin-N9H30 － Rmii_1_Pe Schematic

    NuMaker-emWin-N9H30 NuMaker-emWin-N9H30 － RMII_1_PE Schematic 3.12 Apr. 22, 2021 Page 33 of 36 Rev 2.12...

  • Page 34: Numaker-Emwin-N9H30 － Usb Schematic

    NuMaker-emWin-N9H30 NuMaker-emWin-N9H30 － USB Schematic 3.13 Apr. 22, 2021 Page 34 of 36 Rev 2.12...

  • Page 35: Numaker-Tft-Lcd7 － Lcd Schematic

    NuMaker-emWin-N9H30 NuMaker-TFT-LCD7 － LCD Schematic 3.14 Apr. 22, 2021 Page 35 of 36 Rev 2.12...

  • Page 36: Revision History

    Rename NuMaker-emWin-N9H30 Important Notice Nuvoton Products are neither intended nor warranted for usage in systems or equipment, any malfunction or failure of which may cause loss of human life, bodily injury or severe property damage. Such applications are deemed, “Insecure Usage”.
