4.
Dimensions
Ø 40 (1.6)
25 (1.0)
Ø 32 (1.3)
40 (1.6)

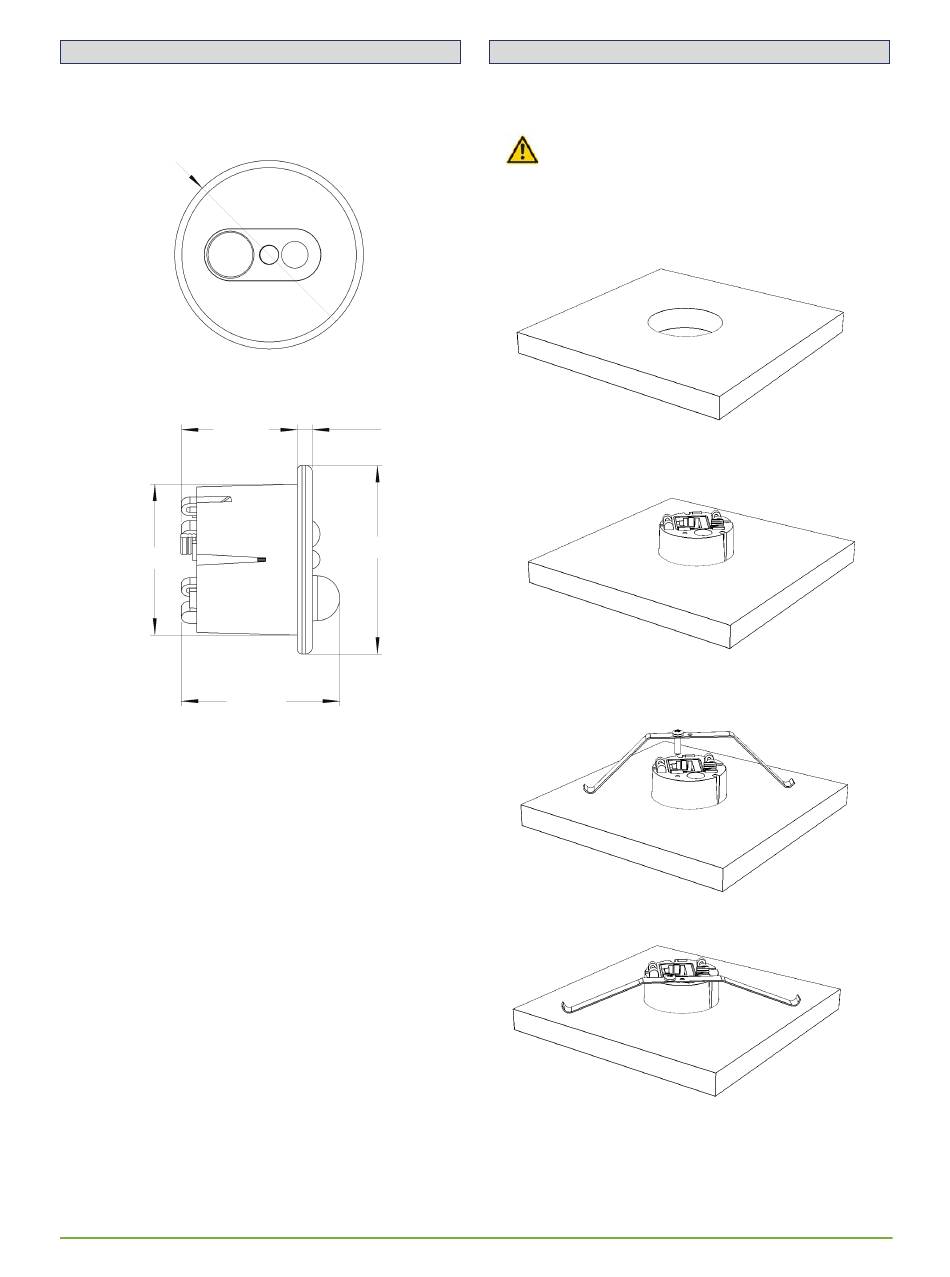

Figure 4-1: (From top to bottom) front view and side view of the enclosure
2/6
Ø 32 (1.3)
3 (0.1)
Ø 40 (1.6)
Units: mm (inches)
Units : mm
5.
Mounting Instructions
The EC-Multi-Sensor can be mounted directly into suspended ceiling
(Ø 32 mm) fixed by a supplied rear spring. Please contact us for other
3 (0.1)
installation procedures.
25 (1.0)
Please note that the EOL termination and the Subnet
ID must be set before installing. See Subnetwork Bus
Topology and EOL Terminations and Device Addressing.
Suspended Ceiling Installation
1. Drill a Ø 32 mm hole into the suspended ceiling:
40 (1.6)
2. Introduce the EC-Multi-Sensor through the hole (recessed part
first):
3. Screw the rear spring to the EC-Multi-Sensor:
4. The EC-Multi-Sensor is now fixed into the suspended ceiling:
EC-Multi-Sensor Series
Ø 40 (1.6)
Units: mm (inches)
