Mounting Instructions

Remove the cover by using a standard or flat screwdriver to loosen the four screws as shown in Figure 2.
Complete removal of the screw from the cover is not required as the screws are captive type. The horticulture sensor can be mounted directly onto any
wall or flat surface, or may be suspended from the ceiling using the device cable harness which is secured to the enclosure with a compression style
fitting.

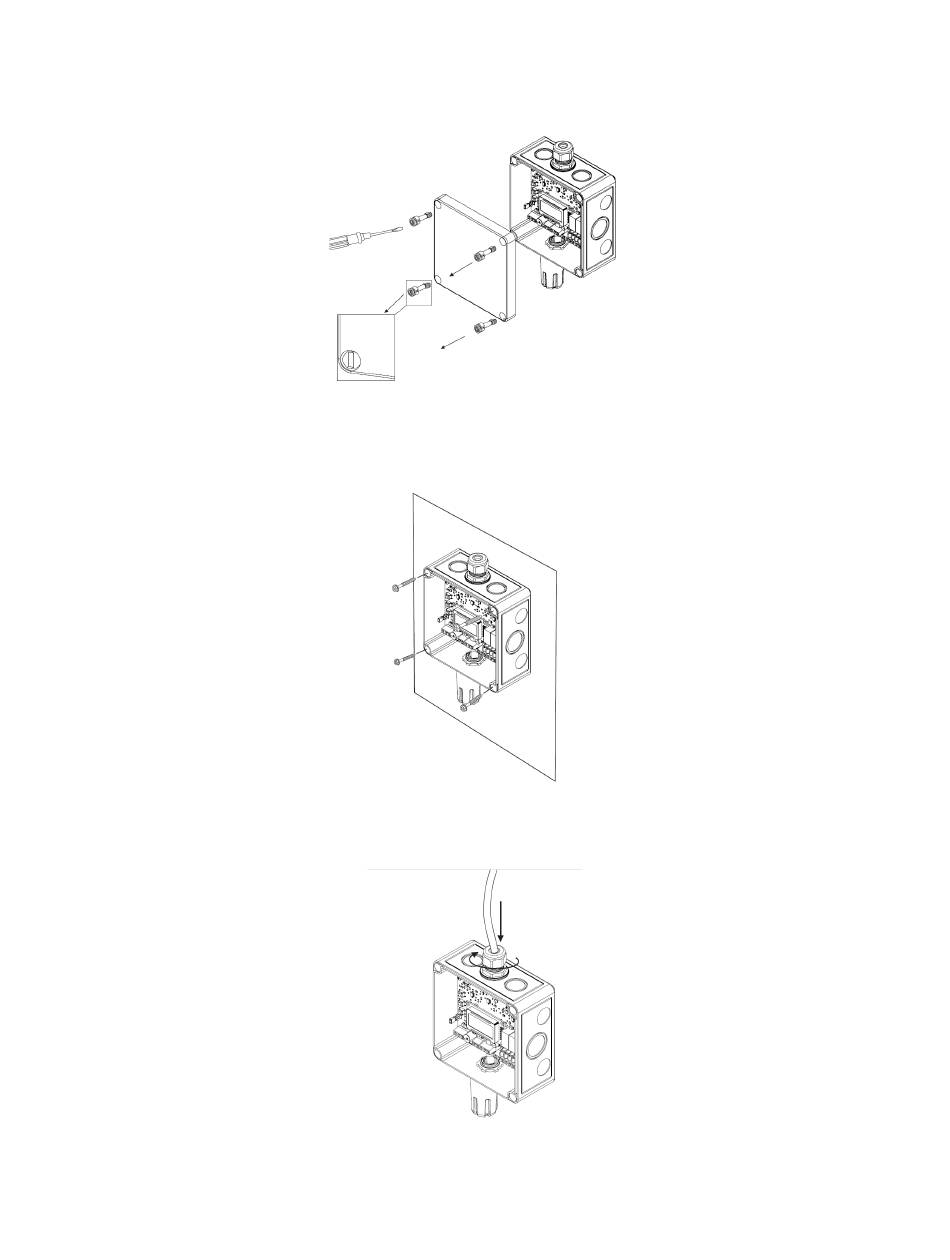

Figure 2: Loosening enclosure screws.
For wall mounting, select a suitable mounting area away from opening windows or doors and avoid areas subject to high vibrations or excessive moisture.
Mount the device directly to the flat surface using the four integrated mounting holes that are provided on each corner of the enclosure using #8 size
screws (not provided). Ensure the sensor pods are pointing downwards as shown in Figure 3.
Figure 3: Wall mounting using size #8 screws.
After the enclosure is securely mounted to the wall, feed the cable through the cable gland and securely tighten the compression fitting as shown in Figure
4. It is generally easier to prepare the cable by stripping sufficient jacket and wires before feeding the cable through the cable gland.
Figure 4: Feeding the cable through the cable gland
For a hanging style mount, feed the cable through the cable gland and securely tighten the compression fitting as shown in Figure 4. Ensure the cable
is also securely fastened to the ceiling mount and that the cable length is sufficient for the required location.
