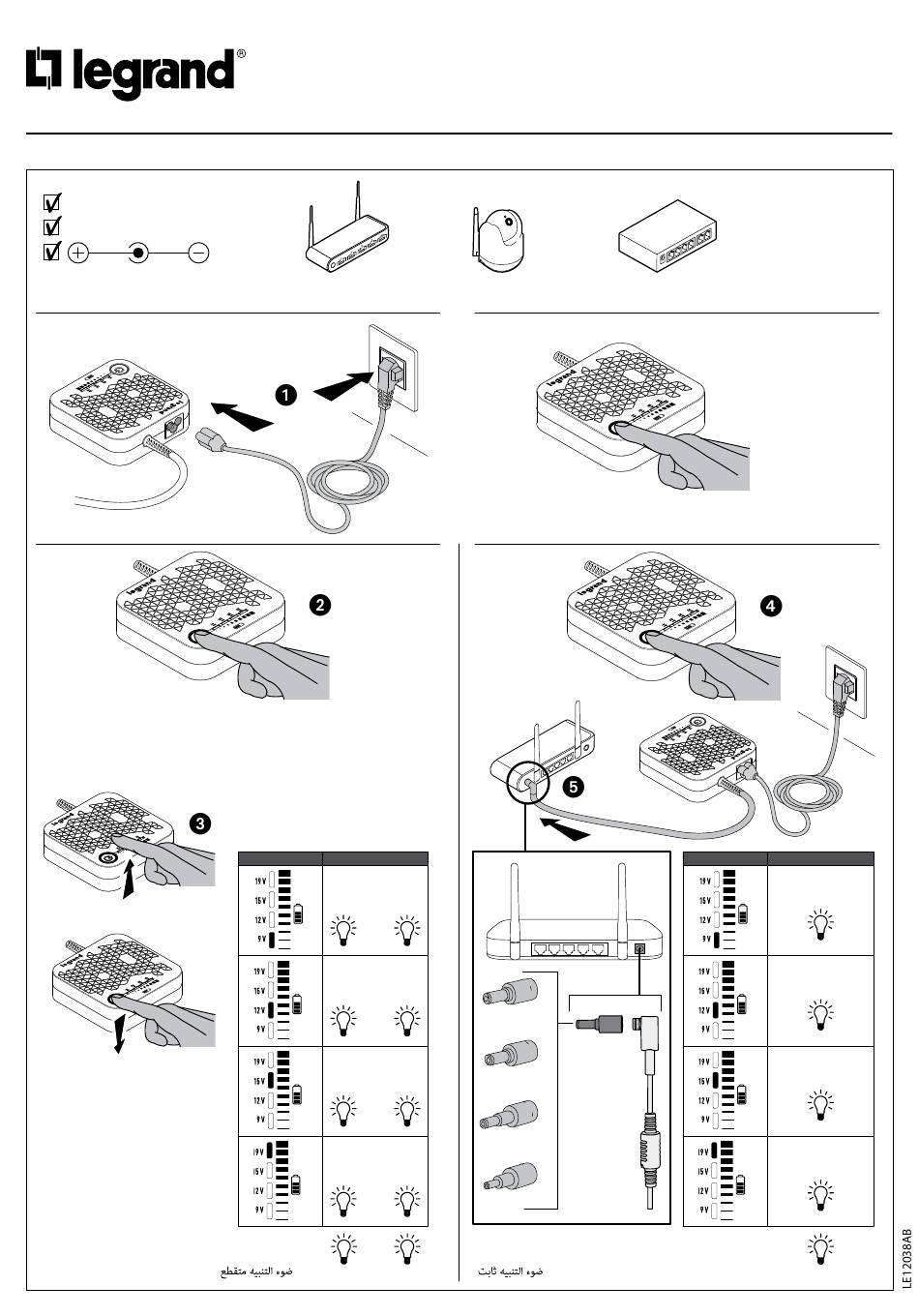

V= 9 V; 12 V; 15 V; 19 V
P ≤ 25 W
ON
SETUP V
OUT
- Voyant clignotant - Blinking LED - LED Lampeggiante
- LED blinkend - LED parpadeante - Kontrolka LED migająca
- LED knippert - Treptajuća LED - LED αναβοσβήνει - Villogó LED
- LED intermitente - Индикатор моргает -
LEGRAND - Pro and Consumer Service - BP 30076 - 87002 LIMOGES CEDEX FRANCE – www.legrand.com
ROUTER .........
OFF
EXIT SETUP V
3 s
SETUP MODE
V
= 9 V
OUT
0.5s ON / 0.5s OFF
................
V
= 12 V
OUT
0.5s ON / 0.5s OFF
5.5 x 2.1 mm
................
V
= 15 V
OUT
4.75 x 1.7 mm
0.5s ON / 0.5s OFF
................
3.5 x 1.35 mm
V
= 19 V
OUT
0.5s ON / 0.5s OFF
5.5 x 2.5 mm
................
Voyant fixe - Steady LED - LED Fisso - LED fest leuchtend - LED fijo - Kontrolka
LED ze światłem ciągłym - LED brand continu - Stalno svijetleća LED - LED
................
σταθερό - Folyamatos LED - LED fixo - Индикатор постоянно горит
-
3 110 10/11/12/13/80/81/82/83/84/85
TVCC .........
SWITCH .........
OUT
8 s
3 s
ON-LINE MODE
V
= 9 V
OUT
V
= 12 V
OUT
V
= 15 V
OUT
V
= 19 V
OUT
11/20-01 WP
Advertisement
Table of Contents
Related Manuals for LEGRAND 3 110 10
Summary of Contents for LEGRAND 3 110 10
- Page 1 σταθερό - Folyamatos LED - LED fixo - Индикатор постоянно горит - LED knippert - Treptajuća LED - LED αναβοσβήνει - Villogó LED - LED intermitente - Индикатор моргает - LEGRAND - Pro and Consumer Service - BP 30076 - 87002 LIMOGES CEDEX FRANCE – www.legrand.com 11/20-01 WP...
- Page 2 BATTERY MODE 100 – 75 % 2s ON / 0.5s OFF ....75 – 50 % 2s ON / 0.5s OFF ....50 – 25 % 2s ON / 0.5s OFF ....25 – 0 % 2s ON / 0.5s OFF ....
- Page 3 • S’assurer que la tension et la fréquence du secteur d’alimentation électrique correspondent à celles de l’onduleur. • Assicurarsi che la tensione e la frequenza della rete elettrica corrispondano a quelle dell’UPS. • Dans le cas où un dommage visible serait constaté sur le produit pendant son déballage, ne pas installer l’onduleur mais le replacer dans son •...
- Page 4 • Consultați manualul echipamentului pe care doriți să îl alimentați cu KEOR DC pentru a vă asigura că sunt îndeplinite specificațiile tehnice și www ups legrand.com • للتعرف على معلومات أكثر عن منتجات الطاقة الغير منقطعة والخاصة بشركة لوجراند نرجو زيارة...
