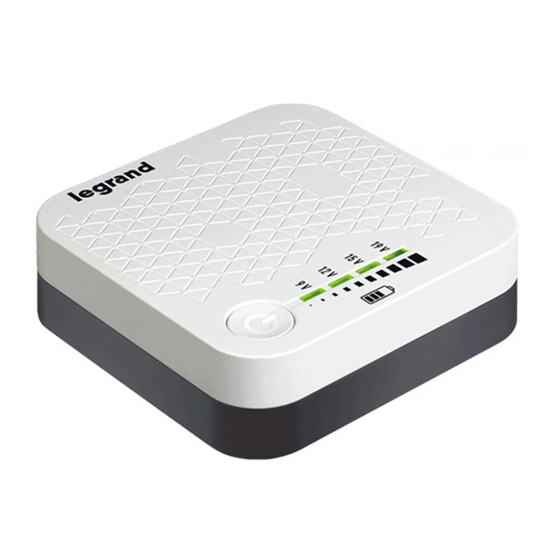

LEGRAND KEOR DC Manual

LEGRAND KEOR DC Manual

Advertisement

Quick Links

ROUTER .........
TVCC .........
V= 9 V; 12 V; 15 V; 19 V
P ≤ 25 W
SETUP V
OUT
LEDs
LEGRAND - Pro and Consumer Service - BP 30076 - 87002 LIMOGES CEDEX FRANCE – www.legrand.com
SWITCH .........
3 s
SETUP MODE
V
= 9 V
OUT
0.5s ON / 0.5s OFF
................
V
= 12 V
OUT
0.5s ON / 0.5s OFF
................
V
= 15 V
OUT
0.5s ON / 0.5s OFF
................
V
= 19 V
OUT
0.5s ON / 0.5s OFF
................
5.5 x 2.1 mm
4.75 x 1.7 mm
3.5 x 1.35 mm
5.5 x 2.5 mm
3 s
OFF
8 s
LEDs
ON-LINE MODE
V
OUT
Steady LED
V
OUT
Steady LED
V
OUT
Steady LED
V
OUT
Steady LED
LEDs
BATTERY MODE
Battery charge level
0 – 25 %
2s ON / 0.5s OFF
................
Battery charge level
25 – 50 %
2s ON / 0.5s OFF
................
Battery charge level
50 – 75 %
2s ON / 0.5s OFF
................
Battery charge level
75 – 100 %
2s ON / 0.5s OFF
................
ON
8 s
KEOR DC
= 9 V
= 12 V
= 15 V
= 19 V
01/20-01 WP
