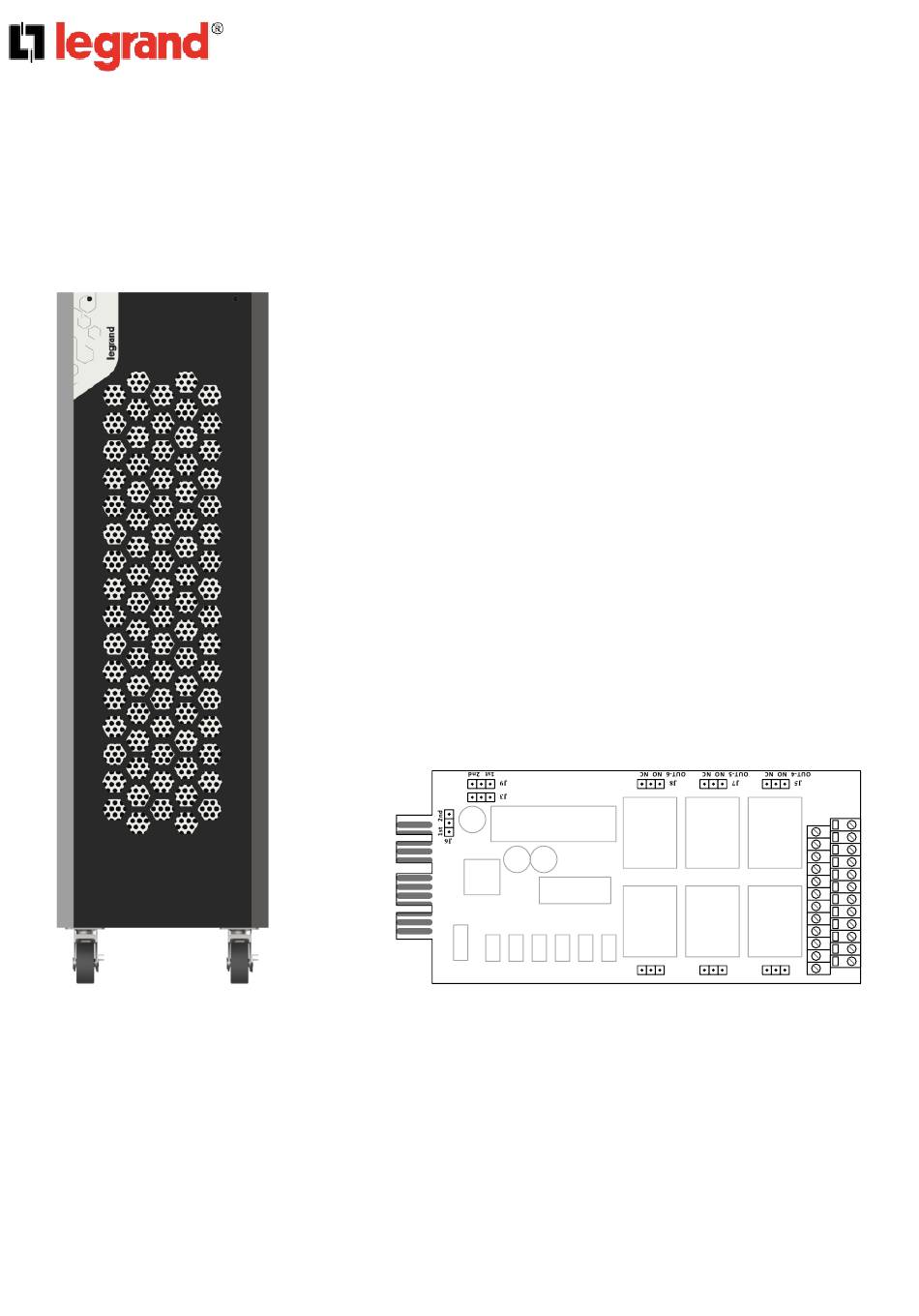

KEOR COMPACT
3 111 06 DRY CONTACT CARD
Installation Manual
J1
J2
J4
OUT-1
NO NC
OUT-2
NO NC
OUT-3
NO NC
LE12723AA
– 20/12
The copying, redistribution, use or publication of such contents is strictly prohibited without Legrand authorization

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KEOR COMPACT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LEGRAND KEOR COMPACT

Summary of Contents for LEGRAND KEOR COMPACT

  • Page 1 KEOR COMPACT 3 111 06 DRY CONTACT CARD Installation Manual OUT-1 NO NC OUT-2 NO NC OUT-3 NO NC LE12723AA – 20/12 The copying, redistribution, use or publication of such contents is strictly prohibited without Legrand authorization...

  • Page 2: Table Of Contents

    KEOR COMPACT DRY CONTACT CARD Table of Contents Introduction ....................3 1.1 Guarantee terms ................. 3 Safety provisions ..................4 Installation Procedure ................... 5 3.1 Component List ................... 5 3.2 Electrical Specification ................ 5 3.3 Dry Contact Card Hardware Setting ............ 5 3.4 Pin Assignment of Output/Input Contacts ..........

  • Page 3: Introduction

    System start, Transfer to bypass in single operation, Transfer to bypass in parallel operation, EPO (Emergency shutdown). The purpose of this manual is to provide indications for installing and using safely the LEGRAND dry contact card 3 109 69.

  • Page 4: Safety Provisions

    The dry contact card must be installed only with the UPS UNPLUGGED FROM THE MAINS. ATTENTION The dry contact card 3 110 99 can only be used in the expansion slot of the UPS KEOR COMPACT manufactured by LEGRAND. ATTENTION It is required to connect the dry contacts of the card by strictly following the instructions provided in this manual.

  • Page 5: Installation Procedure

    KEOR COMPACT DRY CONTACT CARD 3. Installation Procedure Component List The dry contact card package includes below items: • Dry-contact card × 1 • M3 Screw × 2 Electrical Specification • Output Relay：250VAC / 2A, 30VDC / 2A • Input Contact：When the contact is closed, a current of 10mA max circulates.
  • Page 6 KEOR COMPACT DRY CONTACT CARD Table 1 Jumper Function Descriptions Setting Slot 1: These three jumpers to select the communication slot of UPS which one 1st 2nd this dry-contact card will be installed. Slot 2: ※ Out Relay#1 NO/NC setting...

  • Page 7: Pin Assignment Of Output/Input Contacts

    KEOR COMPACT DRY CONTACT CARD Pin Assignment of Output/Input Contacts This card provides six output relays and six input contacts. The pin assignment as Figure 3 shows. OUT-1 Output Relay 1 OUT-2 Output Relay 2 OUT-3 Output Relay 3 OUT-4...

  • Page 8: Hardware Installation Procedure

    KEOR COMPACT DRY CONTACT CARD Hardware Installation Procedure Please refer to section 1.3 to set all jumpers of the dry contact card before install to UPS. Plug in the dry contact card to the《Slot1》or《Slot2》and then screw in the screws after the card is firmly locked in to complete the installation procedure, as Figure 4 shows.
  • Page 9 KEOR COMPACT DRY CONTACT CARD Figure 5 • Please use the setting tool software to confirm the configuration of the dry contact card. Go to 『Information』->『Status』->『Dry Contact』 page to identify whether the dry • contact card is properly set. If the card is installed correctly, “Yes” will be appeared.

  • Page 10: Configure Output/Input Contacts

    KEOR COMPACT DRY CONTACT CARD Configure Output/Input Contacts • Please use the setting tool software to configure the output/Input contacts. Go to 『 Setting 』 -> 『 Configurations Value 』 -> 『 Dry Contact 』 page to change the •...
  • Page 11 KEOR COMPACT DRY CONTACT CARD ➢ Example：Set command C05 “Shutdown” to slot1 input contact 2. Please keyin setting value “5”.
  • Page 12 KEOR COMPACT DRY CONTACT CARD Table 2. Status Code List Code Description Setting Value Rectifier Input Present OK 1000 Bypass Input Present OK 1001 UPS in Normal Mode 1005 UPS in ECO Mode 1007 UPS in Converter Mode 1008 Rectifier on...
  • Page 13 KEOR COMPACT DRY CONTACT CARD Table 3. Alarm Code List Code Description Setting Value General Alarm Inverter General Alarm Mains General Alarm Discharger General Alarm Charger General Alarm Bypass General Alarm Over Temp. Interior over Temp. Battery Room over Temp.
  • Page 14 KEOR COMPACT DRY CONTACT CARD A102 UPS Maintenance Alarm A129 Sync. of Start or Load Transfer Error A132 EPO(emergency power off) active A133 External Alarm 1 Active A134 External Alarm 2 Active A135 External Alarm 3 Active A136 External Alarm 4 Active...
  • Page 15 KEOR COMPACT DRY CONTACT CARD...
  • Page 16 KEOR COMPACT DRY CONTACT CARD...
