- Page 1 CQUBE SE12 USER MANUAL UM_EN Part No.: 1764155_01...
-
Page 2: Table Of Contents
CONTENT CQube SE12 CONTENT ................................ 2 GENERAL ................................4 Introduction ................................4 Warnings ..................................4 Precautions ................................4 Intended use ................................4 Facts & weight ................................5 OVERVIEW OF COMPONENTS ......................6 Front exterior(Membrane switch) ........................6 Front exterior(Touchscreen) ..........................7 Front interior ................................8 Ingredient canisters ..............................8 Membrane switch navigation ..........................9... - Page 3 Activate programming with the user card ...................... 30 Jug beverage ................................30 Clean machine ............................... 31 Counters ................................. 32 DIMENSION SKETCH ..........................34 CQube SE12 ................................34 Some important information may appear in textboxes seen below IMPORTANT! CAUTION! More INFO.
-
Page 4: General

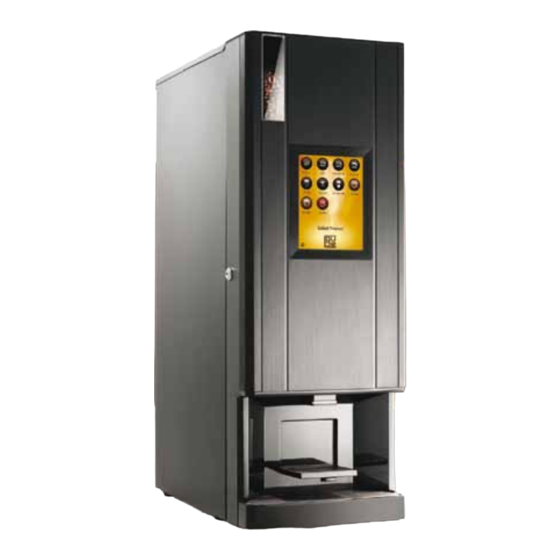

GENERAL CQube SE12 Introduction Thank you for choosing a CQube SE12 espresso vending machine. We hope you enjoy it ! Read the user guide before using the machine. Always keep this guide close at hand for future reference. This guide contains important instructions for proper and safe use of the vending machine. -
Page 5: Facts & Weight
GENERAL CQube SE12 Facts & weight FACTS CQUBE SE12 Touchscreen Option Drink options 1-12 Function for selecting jug Grinder type 1 x EK-7 Number of bean hoppers Number of ingredient canisters Brewer type Espresso Espresso pump type Vibration pump Drip tray size 0.5L... -
Page 6: Overview Of Components
OVERVIEW OF COMPONENTS CQube SE12 Front exterior(Membrane switch) Bean Hopper Drink Menu Display Smart Card Reader Door Lock Outlet Hot Drinks Cup Shelf Drip Grids Drip Tray... -
Page 7: Front Exterior(Touchscreen)
OVERVIEW OF COMPONENTS CQube SE12 Front exterior(Touchscreen) Bean Hopper Drink Menu Touchscreen Start Energy Save Mode Smart Card Reader Door Lock Outlet Hot Drinks Cup Shelf Drip Grids Drip Tray... -
Page 8: Front Interior
OVERVIEW OF COMPONENTS CQube SE12 Front interior Bean Hopper Ingredient Canisters Bean Stop Grinder Grinder Outlet Grinder Adjustment Wheel Mixing System Espresso Group Drink Outlets Waste Box Ingredient canisters DETAIL INGREDIENTS WIDTH DEPTH HEIGHT CAPACITY CUPS/UNIT Hopper ---- Beans ---- ---- 1.25kg... -
Page 9: Membrane Switch Navigation
OVERVIEW OF COMPONENTS CQube SE12 Membrane switch navigation Press the BACK button if you want to leave the submenu and go back in the menu. Press the ENTER button to select a menu function, confirm a set value or a setting. -
Page 10: Touchscreen Navigation
OVERVIEW OF COMPONENTS CQube SE12 Touchscreen navigation Choose drink type by pressing the icon on the touchscreen. Press the BACK button if you want to leave the submenu and go back in the BACK menu. Press the ENTER button to confirm a set value or a setting. Confirm the new ENTER setting by pressing the E-button. -
Page 11: User Card
OVERVIEW OF COMPONENTS CQube SE12 User card User card Is used for cleaning and see counter settings. User card is supplied by your dealer. Face Back Insert the user card with the chip upwards as in the figure above. For the membrane switch The display will show the Service Menu, Jug Beverage and you can now browse forwards through the menu. -
Page 12: Positioning
INSTALLATION AND START-UP CQube SE12 Positioning minimum 10cm Place the machine on a flat horizontal surface that will support the weight of the machine. Make sure air is able to circulate behind Note the machine (minimum 10cm). Machine startup procedure Connect the water to the top cabinet on the machine. -
Page 13: Fill Ingredient Canister And Bean Hopper
INSTALLATION AND START-UP CQube SE12 Fill ingredient canister and bean hopper Lift the lid and fill the bean hopper with freshly roasted coffee beans without additives. Remove the ingredient canisters to avoid spilling in the machine and fill with ingredients. -
Page 14: Operation
OPERATION CQube SE12 Brewing a cup of espresso (Membrane switch) STOP Espresso Cappuccino Chocolate Double Espresso Choco-Milk Caffè Latte Americano Latte Macchiato Hot Water Coffee with Milk Macchiato Place a cup under the outlet for hot drinks.(A) The strength of the drink is set to default. If you would like to increase or decrease the strength then follow the steps in the section below. -
Page 15: Brewing A Cup Of Espresso (Touchscreen)
OPERATION CQube SE12 Brewing a cup of espresso (Touchscreen) Place a cup under the outlet for hot drinks. (A) Choose drink by pressing the drink button on the display. The strength of the drink is set to default. If you would like to increase or decrease the strength then follow the steps in the section below. -
Page 16: Brewing A Jug (Membrane Switch)
OPERATION CQube SE12 Brewing a jug (Membrane switch) STOP Espresso Cappuccino Chocolate Double Espresso Choco-Milk Caffè Latte Americano Latte Macchiato Hot Water Coffee with Milk Macchiato Lift up the cup shelf and put a jug under the outlet for hot drinks(A). -
Page 17: Brewing A Jug (Touchscreen)
OPERATION CQube SE12 Brewing a jug (Touchscreen) Lift up the cup shelf and put a jug under the outlet for hot drinks(A). Insert user card in the card reader(B). The display shows as in the figure above. Press Change the number of cups you want to brew in your jug With button. -
Page 18: Cleaning Program
CLEANING PROGRAM CQube SE12 Automatic Cleaning Clean mixer Cleaning means rinsing with water and rotating the whipper. Cleaning of the mixing bowl should be performed once per day. Cleaning hot key For membrane switch For touchscreen Open the door. Press ENTER on the cleaning panel inside the door. (See fig. A) Cleaning Hot key appears on the display (cleaning panel is now active). -
Page 19: Clean Vlaves
CLEANING PROGRAM CQube SE12 Automatic Cleaning Clean vlaves Cleaning entails that the valves “knock” off any lime scale and other particles that may get stuck in the cylinders and flushing them with water. Cleaning hot key For membrane switch For touchscreen Open the door. -
Page 20: Clean Brewer
CLEANING PROGRAM CQube SE12 Automatic Cleaning Clean brewer Total cleaning time about 5 minutes. Espresso cleaning tablets are avalible from your dealer: Product no. 1104171 IMPORTANT! After cleaning of the espresso group is completed, dispense a cup of coffee and... -
Page 21: Rinse Brewer
CLEANING PROGRAM CQube SE12 Automatic Cleaning Rinse brewer Cleaning hot key For membrane switch Open the door. Press ENTER on the cleaning panel inside the door. (See fig. A) Cleaning Hot key appears on the display (cleaning panel is now active). -
Page 22: Cleaning And Care
CLEANING AND CARE CQube SE12 Weekly cleaning Disassemble the espresso group Take out the waste box. Open the door. Press down the safty ring on the connector simultaneously pull the teflon tube straight up. Loosen the fixation screw in an anticlockwise direction at the top of the espresso group. -
Page 23: Cleaning The Espresso Group
CLEANING AND CARE CQube SE12 Cleaning the espresso group First, remove the espresso group from the machine as explained earlier in this manual. Then proceed to clean it with neutral detergents (avoid solvents that could damage paint or plastics). Disinfectant products as chlorine-detergents are preferred. -
Page 24: Reassemble The Espresso Group
MAINTENANCE AND CARE CQube SE12 Reassemble the espresso group “Click” Replace the espresso group in front of the gearbox. Attach top part at the back of the espresso group to the hooks on the gearbox. push in the bottom part untill a click is felt. -
Page 25: Disassemble Mixing System
CLEANING AND CARE CQube SE12 Weekly ceaning Disassemble mixing system Pull out the outlet hose. Turn the mounting plate lever anticlockwise. Loosen the mixing bowl by pulling it straight out. Loosen the whipper by pulling it straight out. Loosen the mounting plate. Turn the lever anticlockwise, until it stops. -
Page 26: Wash These Parts
CLEANING AND CARE CQube SE12 Weekly cleaning Wash these parts Clean with a moist Mixing Bowl Condensation Trap Mounting Plate Whipper cloth and wipe dry. All parts must be dry before reassembly. Reassemble mixing system The flat side of the whipper shaft must correspond Check all seals(red) before with the marked arrow on the whipper. -
Page 27: Empty Drip Trays
CLEANING AND CARE CQube SE12 Empty drip trays If the madchine indicate Emty Drip Tray (A), there is Empty Drip Tray two different trays that might need to be emptied. Check the trays shown below and empty the water. Door Grab the drip tray with your hands and simply pull it straight out. -
Page 28: Exterior Cleaning
CLEANING AND CARE CQube SE12 Exterior cleaning Exterior cleaning when necessary To clean the exterior of the machine, use a soft cloth and liquid cleaning agent that is non-abrasive. If using machine equiped with touchscreen do not spray cleaning liquid directly on the display. Use only LCD screen cleaner designed for touchscreen cleaning. -
Page 29: Message Shown On Display
MESSAGE SHOWN ON DISPLAY CQube SE12 Message on display Indication Energy Saving Mode The machine is in energy saving mode. Not Available Drink can not be selected as jug. Heating Water Low temperature in the water tank, the machine is heating up (blocked). -
Page 30: Programming
PROGRAMMING CQube SE12 Activate programming with the user card Insert user card in the card reader (A) The display will look like this for membrane switch: Service Menu Press to go forward Clean Machine Service Menu Press to go forward... -
Page 31: Clean Machine
PROGRAMMING CQube SE12 Clean machine Open the door. Press ENTER on the cleaning panel inside Cleaning hot key the door. Choose button X for each cleaning. See the pages for cleaning programs in order to perform cleaning. Press Clean Espresso group... -
Page 32: Counters
PROGRAMMING CQube SE12 Counters See the counter of each drink or total counters for all Service Menu drinks. It’s also possible to reset the drink counters. Counters Service Menu Counters Press Press Press Counters Beverage Counters Drink 1 Beverages Per Beverage... - Page 33 PROGRAMMING CQube SE12 Counters See the number of times cleaning has been performed or Service Menu reset the clean counter. Counters Press Counters Clean Counter Espresso group xxx Clean Counter Press to go forward in the menu Clean Counter Press...
-
Page 34: Dimension Sketch
DIMENSION SKETCH CQube SE12 Dimensions CQube SE12 Model CQube SE12 818mm 290mm 532mm 110mm 155mm... - Page 36 For the warranty to be valid the conditions for maintenance must have been followed according to our instructions, proper precaution has been made and warranty claim been issued without delay. The affected equipment may not be used during awaiting service if there is any risk that the damage or defect would worsen.
