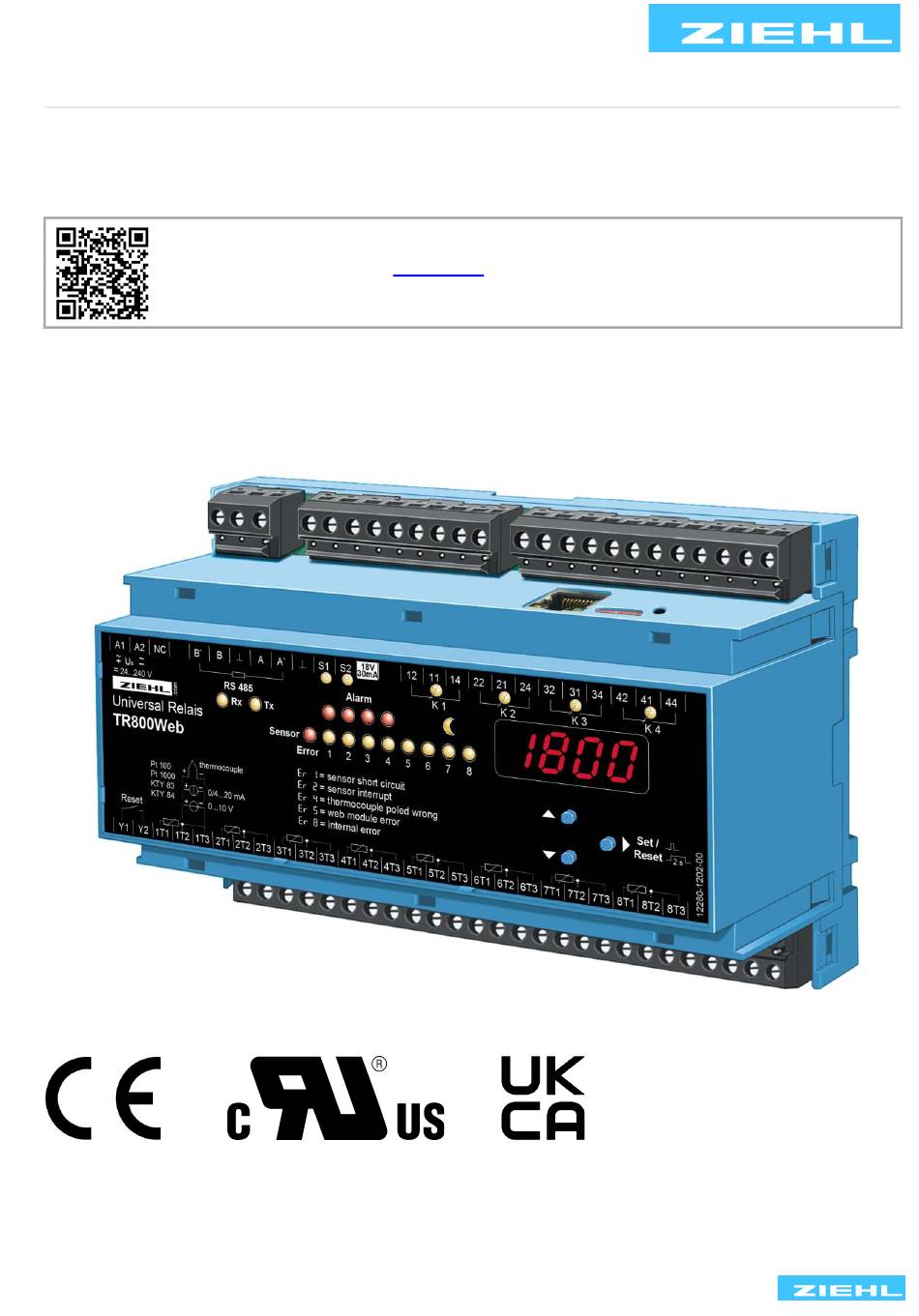

Temperature Relays and MINIKA®

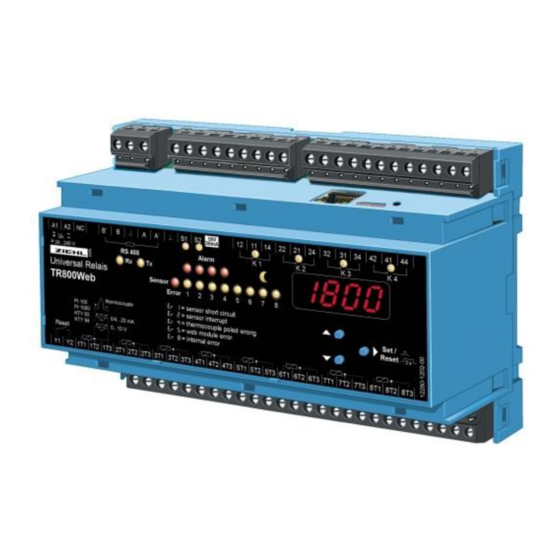

Operating Manual TR800Web
For more information and help about this product please scan the
choose the following link:
Operating manual, Quick guide, Datasheet, Connection diagram, CAD Data
Firmwareupdates, FAQ, Videos about installation and settings, Certificates
- Temperature and grid monitoring
TR800Web
12280-0705-03
Mains Monitoring
Digital Panelmeters MINIPAN®
TR800Web
Switching Relays and Controls
Page 1 / 26
ZIEHL industrie – elektronik GmbH + Co KG
Daimlerstr.13, 74523 Schwäbisch Hall, Germany
+ 49 791 504-0,
info@ziehl.de,
Measuring Transducers
Grid- and Plant Protection
updated: 2023-01-09 / dr
from Firmware: 2.0.9
QR-Code
or
www.ziehl.deAA
www.ziehl.de
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ZIEHL TR800Web
Summary of Contents for ZIEHL TR800Web
- Page 1 ZIEHL industrie – elektronik GmbH + Co KG Daimlerstr.13, 74523 Schwäbisch Hall, Germany + 49 791 504-0, info@ziehl.de, www.ziehl.de Temperature Relays and MINIKA® Mains Monitoring Digital Panelmeters MINIPAN® Switching Relays and Controls Measuring Transducers Grid- and Plant Protection updated: 2023-01-09 / dr Operating Manual TR800Web from Firmware: 2.0.9...
-
Page 2: Table Of Contents
SNMP ............................21 10.4 FTP Upload (Option) ........................21 10.5 AJAX data interface ........................21 11 RS485 interface............................. 21 11.1 Ziehl Standard Protocol ....................... 21 11.2 Modbus RTU ..........................22 12 Troubleshooting ........................... 22 TR800Web 12280-0705-03 Page 2 / 26... -
Page 3: General Notes
The TR800Web can be connected to the internet or an intranet and operated via TCP/IP from a normal PC with a suitable browser (tested with IE 7, IE 8 and Firefox 3). No special software and no special instruction are required. -
Page 4: Connection Plan
4 Connection Plan 1) Terminating resistor active: Bridge A to A’ and B to B’ The Terminals 1T3, 2T3, 3T3, 4T3, 5T3, 6T3, 7T3 and 8T3 are internally connected. TR800Web 12280-0705-03 Page 4 / 26 www.ziehl.de... -
Page 5: Display And Controls
Towards reset button: IP address User (set via web browser) Webserver reset button • Internal webserver restarts when pressed (duration ca. 1 minute) LED (yellow) input state S1 and S2 • On: input Sx aktive TR800Web 12280-0705-03 Page 5 / 26 www.ziehl.de... -
Page 6: Important Information's
• With screws M4 for installation on walls or panel. (additional latch not included in delivery) Connection according to connection plan or type plate. A circuit-breaker or switch must be situated within easy reach of the unit and fused. Installation excess current protection should be ≤ 10 A. TR800Web 12280-0705-03 Page 6 / 26 www.ziehl.de... -
Page 7: Detailed Description
8 Detailed description • The TR800Web measures up to 8 connected sensors, displays the measured values and evaluates them. • Configuration and operation are performed with a computer through a web browser • A setting can be made for each sensor Assignment limit <->... -
Page 8: Display Mode
Press briefly: Change into the configuration mode Set/Reset Info mode Decimal point flashes Function keys Not in use Up and Down Function keys Select next parameter; after the last parameter change into menu Set/Reset mode TR800Web 12280-0705-03 Page 8 / 26 www.ziehl.de... -
Page 9: Short Operating Diagram
8 on8 current input 0-20 mA DHCP on 84-208 8faIl8 current input 4-20 mA DHCP missed 8r5008 resistance 500 Ohm ... 8Al alarms 1 to 4 8r30.08 8boot8 resistance 30 K Ohm webserver starts TR800Web 12280-0705-03 Page 9 / 26 www.ziehl.de... -
Page 10: Overview Of Commissioning
9.7 Switching on the unit Apply supply voltage to terminals A1 and A2, Ca. 2s long, all LEDs and the digital display illuminate ( 88.8.8.8. ) The TR800Web is now ready to operate In the digital display, 8boot8... -
Page 11: Find The Unit In The Network
9.9 Find the unit in the network Prerequisite: Web browser Edge, Chrome oder Firefox (tested). The TR800Web provides four facilities to find itself in the network: 9.9.1 DHCP server In the network, there is a DHCP server; newly added units automatically are assigned an IP... -
Page 12: Upnp
Start network browser (network environment), ("Symbols for show Network UPnP devices" must be active) Double click on the device found The TR800Web homepage opens in the web browser Close the login window with the OK button (without username and without password) 9.9.4... -
Page 13: Sensor Settings
If the device is operated on a RS485 interface, the parameters and the protocol can be selected here Email settings: The TR800Web provides a facility for sending an email if the alarm state changes. Enter the access data into the corresponding boxes. -
Page 14: Configuring The Alarms
The relay is released, regardless of the alarm condition manual on: The relay is picked up, regardless of the alarm condition This alarm is non-delayed triggered during: device error Alarm on error sensor error (even if the sensors are not "active") TR800Web 12280-0705-03 Page 14 / 26 www.ziehl.de... -
Page 15: Alarm Email
Email will be sent if an alarm expires "Alarm OFF" Enter email addresses (separated with a semicolon) or press "Add" button Recipient and select the addresses from the list (emails of the addresses entered in the [Users] menu) TR800Web 12280-0705-03 Page 15 / 26 www.ziehl.de... -
Page 16: System
The device name appears in the uppermost line of the website after saving. The TR800Web has a real-time clock that can be synchronized with a "Timeserver" (NTP protocol, uses UDP Port 123). The server, router, proxy … connected to the network usually provides such a function. -
Page 17: User Management/Access Control
User management/access control 9.15 The TR800Web has user management with access control. Stipulate the administrator, user and guest access here as required. If the user management is switched on (checkbox [active]), a password can be assigned to each user (and administrator). To do that, click on the [Change password] button. In the window that opens, enter the first and second lines for each desired password. - Page 18 The file „alarms.csv“ “ will be uploaded. The content consists of Current alarms memory 500 records (current ring memory alarms). file size about 40-80 kbyte. The file(s) „alarms.xxx.csv“ will be uploaded. xxx = Date/time in Alarms memory backups local time format. Trigger TR800Web 12280-0705-03 Page 18 / 26 www.ziehl.de...
-
Page 19: View Measurements And Alarms, Sensor Simulation
Here, all measurements can be clearly viewed with min./max. values plus the alarms. Using the sensor simulation, individual sensor values can be simulated. The simulation independently switches off after 15 minutes with no changes in the simulation value. TR800Web 12280-0705-03 Page 19 / 26... -
Page 20: Time-Dependent Control / Scheduler
The time control specifies which alarm values (Day or night) are active at which time. The following settings are available: active: day (no time control; alarm day-values always apply) active: night (no time control; alarm night-values always apply) active: scheduled (the specified switchover times apply) TR800Web 12280-0705-03 Page 20 / 26 www.ziehl.de... -
Page 21: Ethernet Protocols
The interface parameter for the UDP protocol can be viewed and changed in the web user interface [Network / UDP settings]. A detailed description of the protocol can be found in the TR800Web online help section or can be downloaded via the Internet (www.ziehl.com). -
Page 22: Modbus Rtu
Modbus RTU 11.2 A description can be found in the TR800Web online help section or can be downloaded via the Internet (www.ziehl.com). 12 Troubleshooting 8boot8 appears in the digital display This is not an error. Cause The internal webserver is starting up. - Page 23 Galvanic insulation / Test-voltage DC 750 V Us – relays, sensors, ethernet DC 3820 V relays – sensors, ethernet DC 3820 V RS485 – sensors – reset Y1/Y2 – S1, S2 No galvanic insulation TR800Web 12280-0705-03 Page 23 / 26 www.ziehl.de...
- Page 24 4800, 9600, 19200 Baud Parity N, O, E (none, odd, even) Wire length 1000 m at 19200 Baud ZIEHL RS485 protocol: Time end request – start answer 5…50 ms Send data without request 3 s 3 s ± 200 ms Send data without request 170 ms 170 ms ±...
- Page 25 Installation Snap mounting on mounting rail 35 mm according to EN 60 715 or with screws M 4 (2 additional bars, not included in delivery) Weight ca. 370 g Subject to technical changes TR800Web 12280-0705-03 Page 25 / 26 www.ziehl.de...
- Page 26 15 Disposal Disposal should be carried out properly and in an environmentally friendly manner in accordance with legal provisions. ZIEHL is registered with the EAR Foundation under WEEE no .: DE 49 698 543. TR800Web 12280-0705-03 Page 26 / 26...
