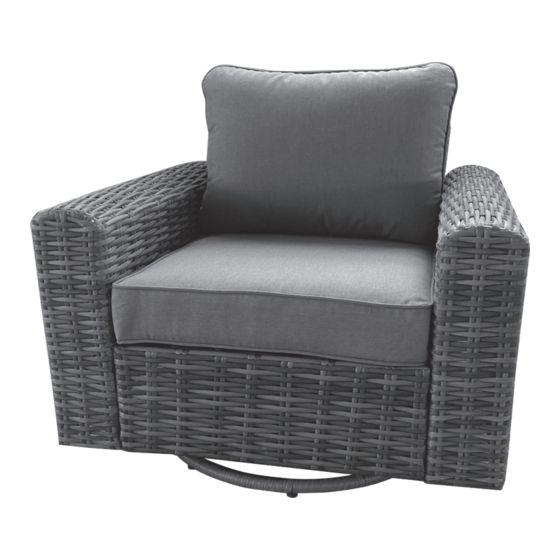

- Page 1 ASSEMBLY INSTRUCTION ITEM#: H22SK1227-1 SKU#: 810588252 P E M B R O K E S W I V E L G L I D E R 1 (877) 800 – 6021 Need help? We are here for you! • Toll Free service@hcipatio.com •...
-
Page 2: Maintenance
GENERAL BEST PRACTICES FOR ASSEMBLY: To Ensure Alignment & Easy Assembly, Secure All Bolts & Washers In Place Before Fully Tightening Read all instructions before starting Clear a flat covered space to begin assembly Always best to do it with a friend Note that hardware required is provided for every step Pay attention to orientation Letter of the part corresponds to a sticker on the product... -
Page 3: Material Code
PARTS LIST PART LS-M6-35 MATERIAL CODE PART Q’TY BOLT M6*35 HRVS9156-BG LS-M6-15 BOLT M6*15 BACK ASSEMBLY LS-M6-50 HRVS9156-ZG BOLT M6*50 SEAT ASSEMBLY DP-d6.5-D13 HRVS9156-SB WASHER d6.5*D13*1.0 DP-d6.5-D30 HRVS9156-DG WASHER d6.5*D30*2.0 SUPPORT FRAME HRVS9156-ZJ DP-d8.5-D17 WASHER d8.5*D17*1.6 SEAT POST DP-d8.5-D12.5 HRVS9156-ZSG DECORATIVE WASHER d8.5*D12.5*1.5 PLASTIC COVER... - Page 4 STEP 1 PARTS REQUIRED: 3, 8, 9, 15, & 16 Keep the bolts loose. STEP 2 PARTS REQUIRED: 2, 3, 10, & 13 Keep the bolts loose. PAGE 3 OF 7...
- Page 5 STEP 3 PARTS REQUIRED: 1, 3, 10, & 13 Keep the bolts loose. STEP 4 PARTS REQUIRED: 1, 2, 12, 13, & 17 Keep the bolts loose. PAGE 4 OF 7...
- Page 6 STEP 5 PARTS REQUIRED: 4, 8, 9, 15, & 16 Keep the bolts loose. Note: The labeled arrow marks on the support frame (#4) should coincide with Figure 5 to ensure proper assembly. STEP 6 PARTS REQUIRED: 4, 5, 11, & 13 Tighten all bolts by using the supplied Hex key.
- Page 7 STEP 7 PARTS REQUIRED: 6 & 7 STEP 8 PARTS REQUIRED: 5, 7, 10, & 14 Note: For ease with installation, we recommend that the seat post (#5) be slightly olied or waxed before fastening it to the base assembly (#7). PAGE 6 OF 7...
- Page 8 STEP 9 PARTS REQUIRED: 18 & 19 Caution: To ensure one’s safety during use of this swivel glider, make sure that all of the bolts are completely tightened. This chair has the ability to swivel; therefore use by young children should be adult supervised. Warranty •...
