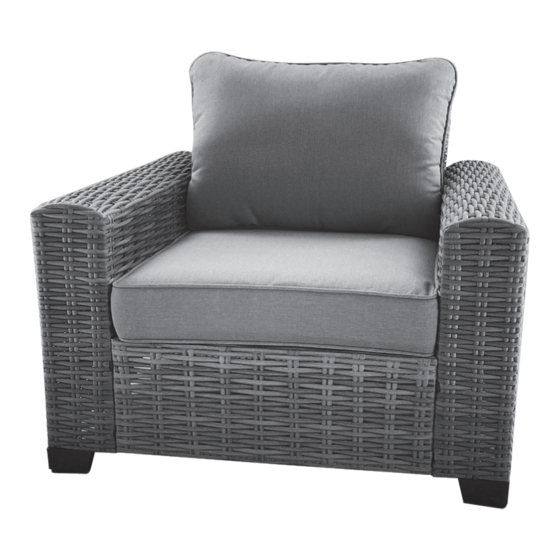

- Page 1 ASSEMBLY INSTRUCTION ITEM#: H22SK2110-1 SKU#: 810588246 P E M B R O K E S T A T I O N A R Y S O F A C H A I R 1 (877) 800 – 6021 Need help? We are here for you! •...
-
Page 2: Maintenance
GENERAL BEST PRACTICES FOR ASSEMBLY: To Ensure Alignment & Easy Assembly, Secure All Bolts & Washers In Place Before Fully Tightening Read all instructions before starting Clear a flat covered space to begin assembly Always best to do it with a friend Note that hardware required is provided for every step Pay attention to orientation Letter of the part corresponds to a sticker on the product... -
Page 3: Parts List
HKVS9151 PARTS LIST PART MATERIAL CODE PART Q’TY LS-M6-45 BOLT M6*45 HKVS9151-BG LS-M6-50 BOLT M6*50 BACK ASSEMBLY HKVS9151-ZG DP-d6.5-D13 SEAT ASSEMBLY WASHER d6.5*D13*1.0 HKVS9151-SB LM-M6 JAM NUT M6*1.0 HKVS9151-BM HKVS9151-JD BACK CUSHION LEG CAP HKVS9151-ZM LS-M6-35 BOLT M6*35 SEAT CUSHION Tools STEP 1 PARTS REQUIRED:... - Page 4 STEP 2 PARTS REQUIRED: 2, 3, 5, & 8 Keep the bolts loose. STEP 3 PARTS REQUIRED: 1, 2, 7, 8, & 9 Tighten all bolts by using the supplied Hex key. PAGE 3 OF 5...
- Page 5 STEP 4 PARTS REQUIRED: 3, 4, 6, & 8 Tighten all bolts by using the supplied Hex key. STEP 5 PARTS REQUIRED: 10 & 11 PAGE 4 OF 5...
- Page 6 Warranty • One–year limited warranty. • Proof of purchase (dated register receipt) is required for warranty claims. • It remains the customer’s responsibility for freight and packing charges to and from the service center. STOP! Missing A Part? No Need To Go Back To The Store The store where you made your purchase does not stock parts for this item.
