ASSEMBLY INSTRUCTIONS
ITEM#: A208035604
SKU#:810588662

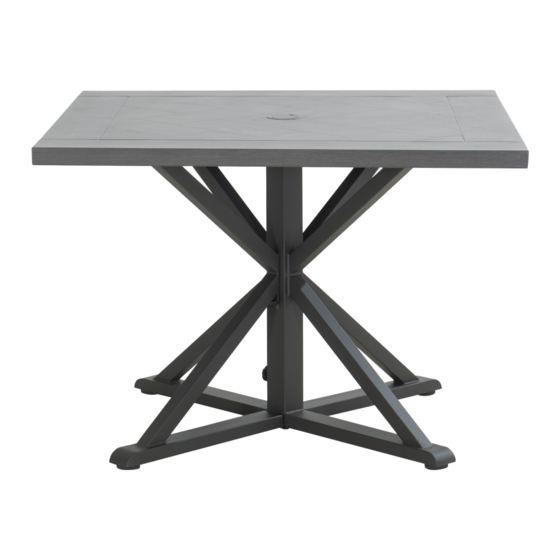

PEMBROKE SQUARE TABLE
Need help? We are here for you!
1(866)578-6569
24/7 • Toll Free
Production number: 2023200013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PEMBROKE A208035604 and is the answer not in the manual?

Questions and answers

Summary of Contents for Broyhill PEMBROKE A208035604

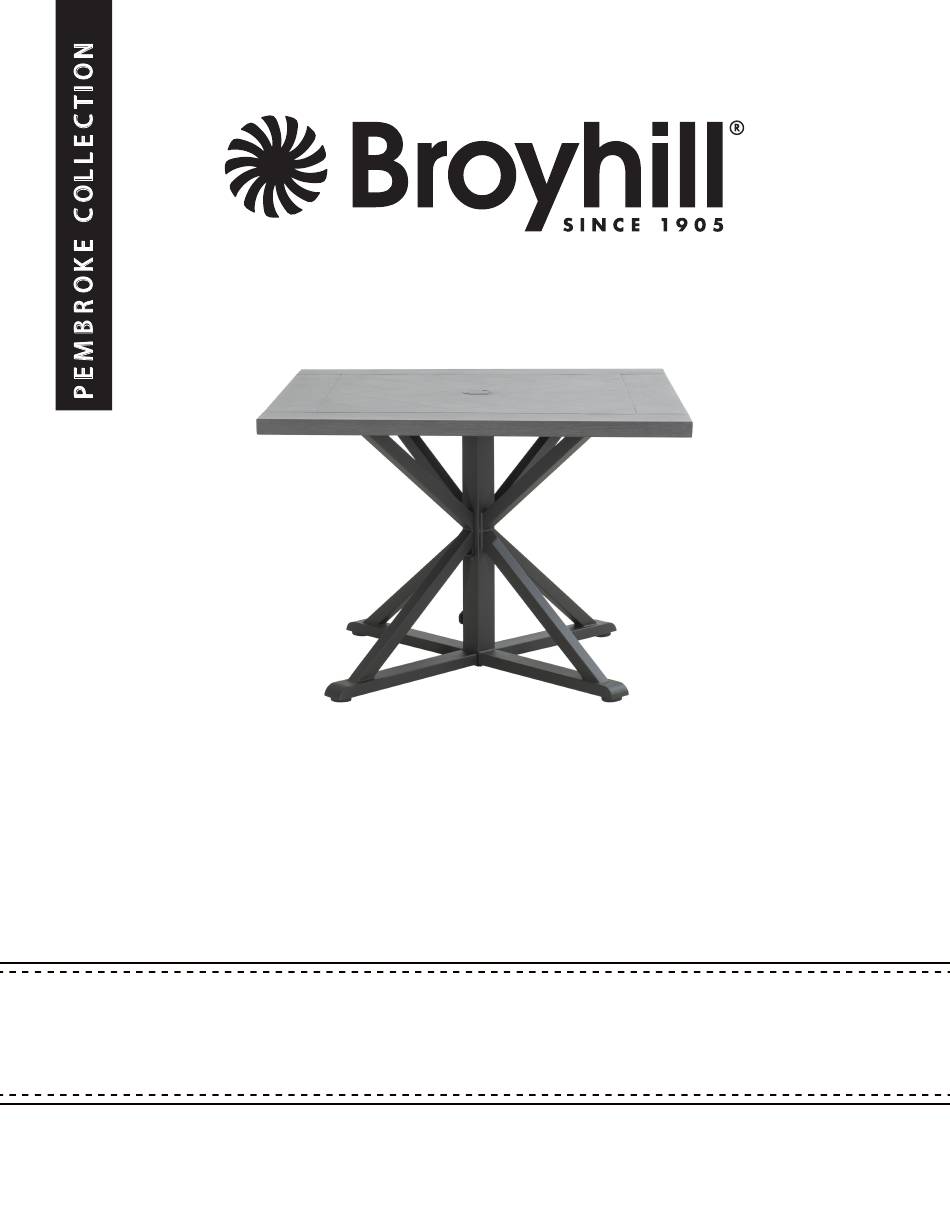

  • Page 1 ASSEMBLY INSTRUCTIONS ITEM#: A208035604 SKU#:810588662 PEMBROKE SQUARE TABLE Need help? We are here for you! 1(866)578-6569 24/7 • Toll Free Production number: 2023200013...
  • Page 2 GENERAL BEST PRACTICES FOR ASSEMBLY: • Please read and understand this entire manual before attempting to assemble or install the product. • Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. •...
  • Page 3 EXPLODED DRAWING...
  • Page 4 PARTS LIST Label Part Number Descripti on Part Image Um brella Hole P00650004003 Table Top P00210030204 Leg 1 P00540022503 Leg 2 P00540022602 Foot H990030041 Pre-assembled Adjust Pad H990030040 Pre-assembled HARDWARE LIST Label Part Number Description Qty Part Image H10 0010 023 Bolt M6*15 H09 0030 002 Wrench M6...
  • Page 5 HELPFUL HINTS • Tools needed and not included • Separating parts before starting Provided in hardware pack How many people are needed for the installation...
  • Page 6 STEP 1 Assembled View: Attached the Leg 2 (D) to Leg 1(C) with Bolt(H1), tighten the Bolt to 80% depth with Wrench(HW).
  • Page 7 STEP 2 Attached the Leg 2 (D) and Leg 1(C) to Table Top (B) with Bolt(H1), tighten all the Bolt to 100% depth with Wrench(HW) at last..
  • Page 8 STEP 3 Assembled V iew: Put the Umbrella Hole Cap (A) to the Table Top (B), Tighter the Bolt (E) to Leg 1( C) when inserting the umbrella...
