16-pin smartcard interfaces ST8034T, ST8034AT demonstration
Introduction
The purpose of this document is to describe, and provide information on, how to efficiently
use the ST8034T and ST8034AT smartcard interface demonstration boards.
The ST8034xx is a family of complete smartcard interface devices, compatible with ISO
7816, NDS and EMV™ 4.3 payment systems that provide selectable supply voltage for the
smartcard with automatic deactivation sequence in case of overload, short-circuit or
undervoltage, with programmable internal or external clock signal, reset signal and
protected I/O data lines. The ST8034HC and ST8034C product variants also provide a chip
select function that allows the device interface to be isolated from the microcontroller bus
signals and to share the bus among multiple card interface devices in a parallel
combination.
In summary, ST8034xx interface devices are placed between the smartcard and the
microcontroller to provide all supply, protection, detection and control functions, with just
minimum external components.

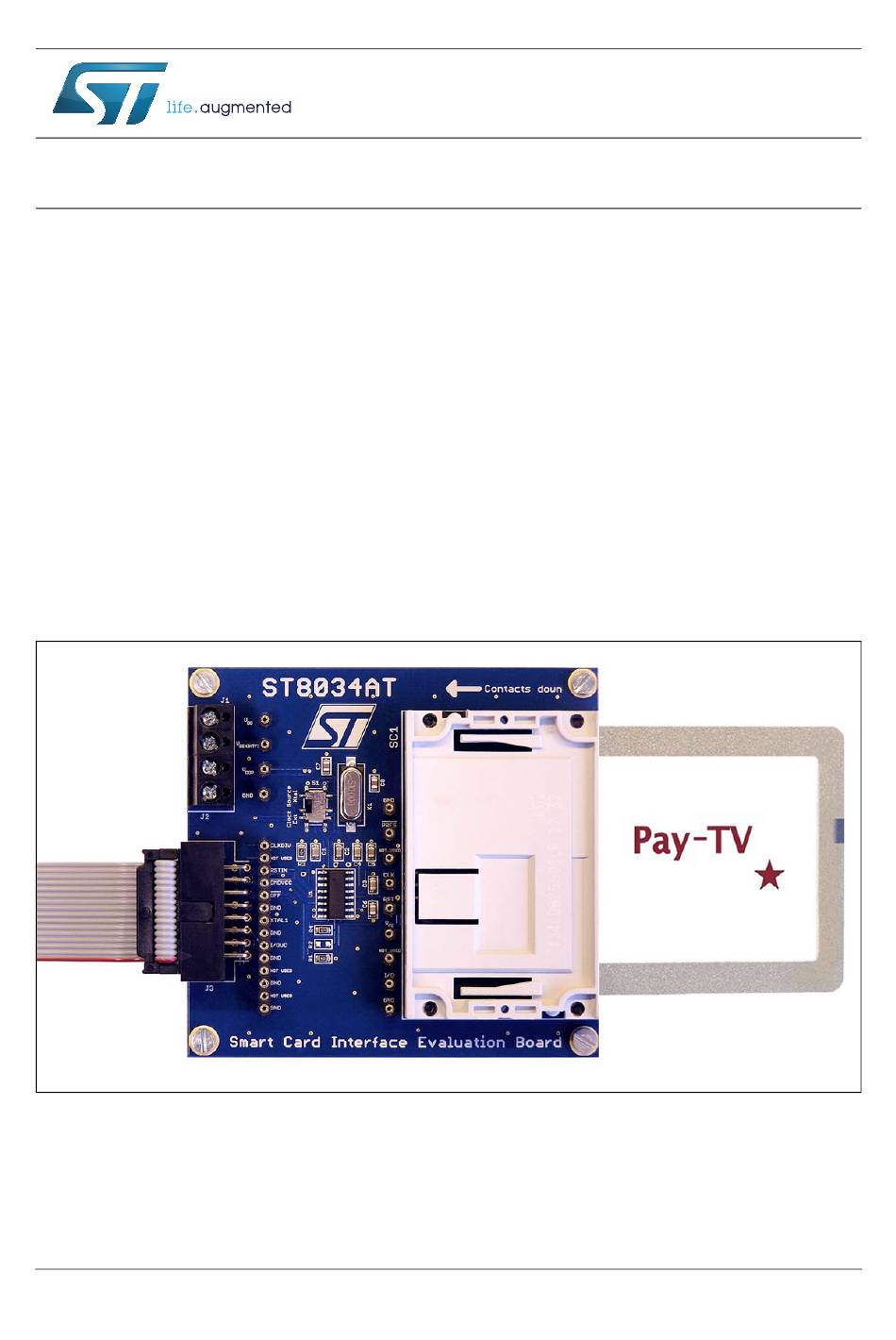

Figure 1. Demonstration board with card connector and microcontroller board interface
June 2013
DocID024224 Rev 1
UM1608
User manual
boards
www.st.com
1/9
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ST ST8034T
Summary of Contents for ST ST8034T
- Page 1 Introduction The purpose of this document is to describe, and provide information on, how to efficiently use the ST8034T and ST8034AT smartcard interface demonstration boards. The ST8034xx is a family of complete smartcard interface devices, compatible with ISO 7816, NDS and EMV™ 4.3 payment systems that provide selectable supply voltage for the...
- Page 2 Applications UM1608 Applications Smartcard readers for Set-top boxes Pay-TV Identification Tachographs Banking DocID024224 Rev 1...
- Page 3 Figure 2. Demonstration board description Use of the demonstration board The ST8034T/AT demonstration board is designed both for standalone operation or to be fully controlled by the microcontroller; it is fully configurable and provides access to all the signals including supply voltages through labeled test points and uses a standard connector for a simple communication interface with the microcontroller block.
-
Page 4: Smartcard Interface
Description UM1608 Difference between ST8034T and ST8034AT demonstration boards The ST8034T and ST8034AT demonstration boards are identical, the only difference is control of external clock frequency divider, i.e. the response to setting on the CLKDIV input pin, see Table Table 1. ST8034T and ST8034AT clock frequency selection... -
Page 5: Board Layout
UM1608 Board layout Board layout Layout recommendations The ST8034xx family of devices includes an LDO block to generate V supply voltage for the smartcard, which (in contrast to previous ST8024/8024L devices with a charge pump) does not generate any noise and therefore even the requirements for a printed circuit board layout and external component selection are not so strict (general PCB layout rules apply). -
Page 6: Schematic Diagram
Schematic diagram UM1608 Schematic diagram Figure 4. Schematic diagram DocID024224 Rev 1... -
Page 7: Bill Of Material
UM1608 Bill of material Bill of material Table 2. Bill of material Component Value Type Manufacturer Note Smartcard interface ST8034TDT or SO16 3.9 x 9.9 mm ® STMicroelectronics device ST8034ATDT body package Smartcard connector 7434L0825S01LF Power supply ARK210/2EX Xinya terminal Power supply ARK210/2EX Xinya... -
Page 8: Revision History
Revision history UM1608 Revision history Table 3. Document revision history Date Revision Changes 03-Jun-2013 Initial release. DocID024224 Rev 1... - Page 9 No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.
