WURM HVL-G3 Product Information

Universally programmable master module
Hide thumbs
1
2
3
4
Table of Contents

Advertisement

Quick Links

Download this manual
HVL-G3
Product information

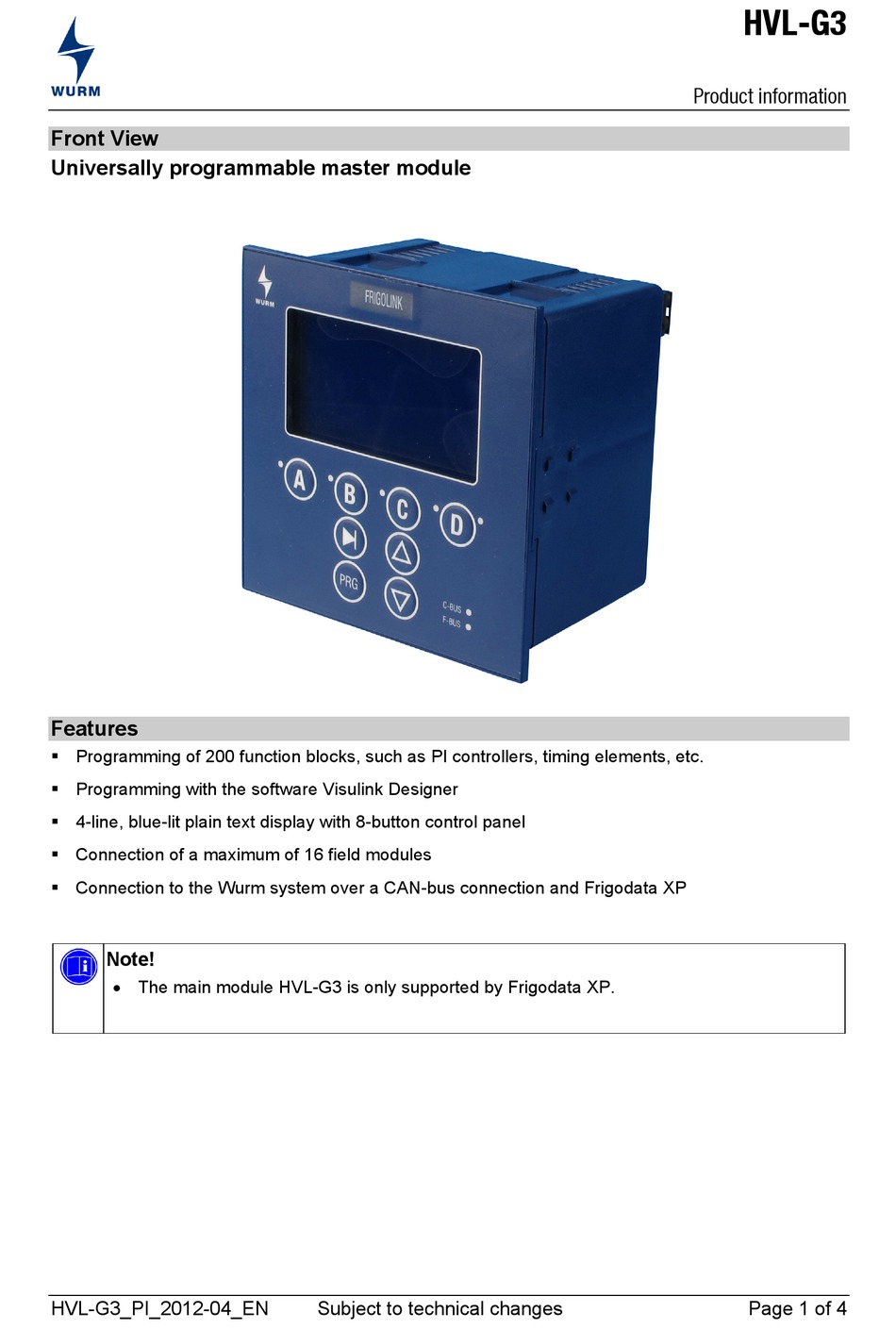

Front View

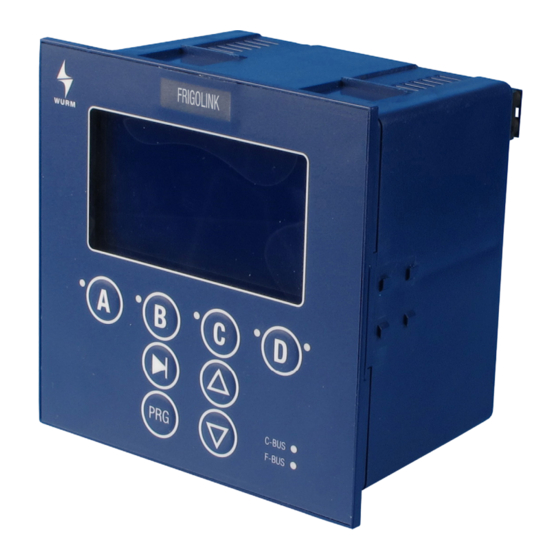

Universally programmable master module

Features

 Programming of 200 function blocks, such as PI controllers, timing elements, etc.
 Programming with the software Visulink Designer
 4-line, blue-lit plain text display with 8-button control panel
 Connection of a maximum of 16 field modules
 Connection to the Wurm system over a CAN-bus connection and Frigodata XP
Note!
 The main module HVL-G3 is only supported by Frigodata XP.
HVL-G3_PI_2012-04_EN
Subject to technical changes
Page 1 of 4
