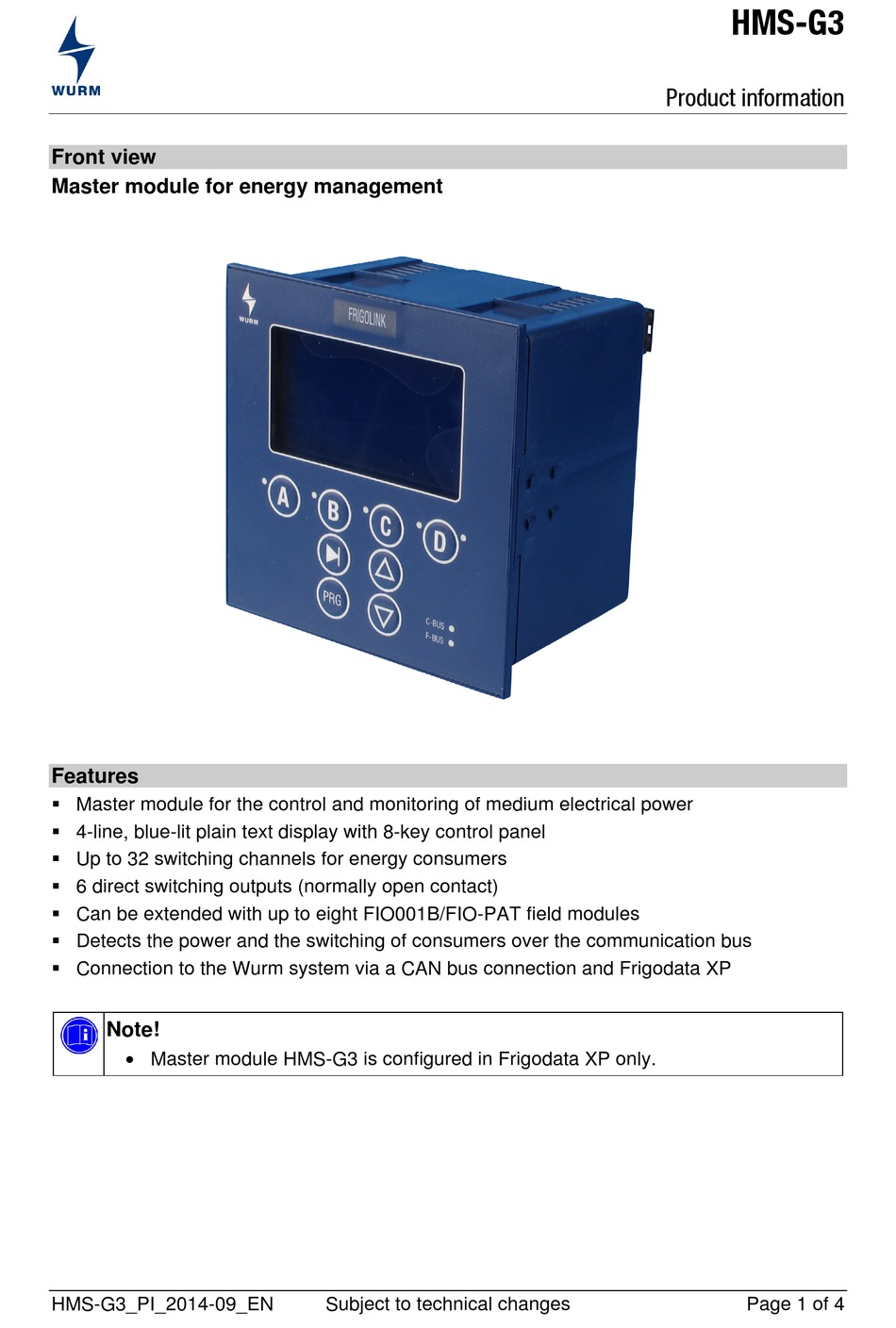

WURM HMS-G3 Quick Start Manual

HMS-G3

Product information

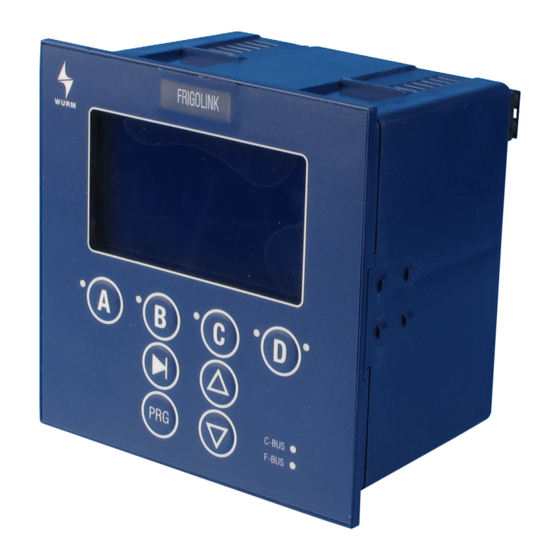

Front view

Master module for energy management

Features

 Master module for the control and monitoring of medium electrical power

 4-line, blue-lit plain text display with 8-key control panel

 Up to 32 switching channels for energy consumers

 6 direct switching outputs (normally open contact)

 Can be extended with up to eight FIO001B/FIO-PAT field modules

 Detects the power and the switching of consumers over the communication bus

 Connection to the Wurm system via a CAN bus connection and Frigodata XP

Note!

• Master module HMS-G3 is configured in Frigodata XP only.

HMS-G3_PI_2014-09_EN

Subject to technical changes

Page 1 of 4

Table of Contents

Do you have a question about the HMS-G3 and is the answer not in the manual?

Page 1  Can be extended with up to eight FIO001B/FIO-PAT field modules  Detects the power and the switching of consumers over the communication bus  Connection to the Wurm system via a CAN bus connection and Frigodata XP Note! • Master module HMS-G3 is configured in Frigodata XP only.
Page 2 Any software versions not listed are special solutions for individual projects and are not described in detail in this document. This document automatically ceases to be valid if a new technical description is issued. Manufacturer: Wurm GmbH & Co. KG Elektronische Systeme.
Page 3 HMS-G3 Product information Circuit diagram Installing WARNING! Danger to life from electric shock!  Switch off the power to the entire plant before installing. Otherwise, an external voltage may still be present even though the control voltage is switched off.
Page 4 3-wire CAN bus interface, shielded, galvanically isolated, Field bus Push-in terminals 2.5mm² or RJ-45 socket 3-wire CAN bus interface, shielded, galvanically isolated, Wurm CAN communication bus Push-in terminals 2.5mm² or RJ-45 socket 6 x 24V=, self-powered, approx. 5mA per input, push-in terminals Digital inputs 2.5mm²...
