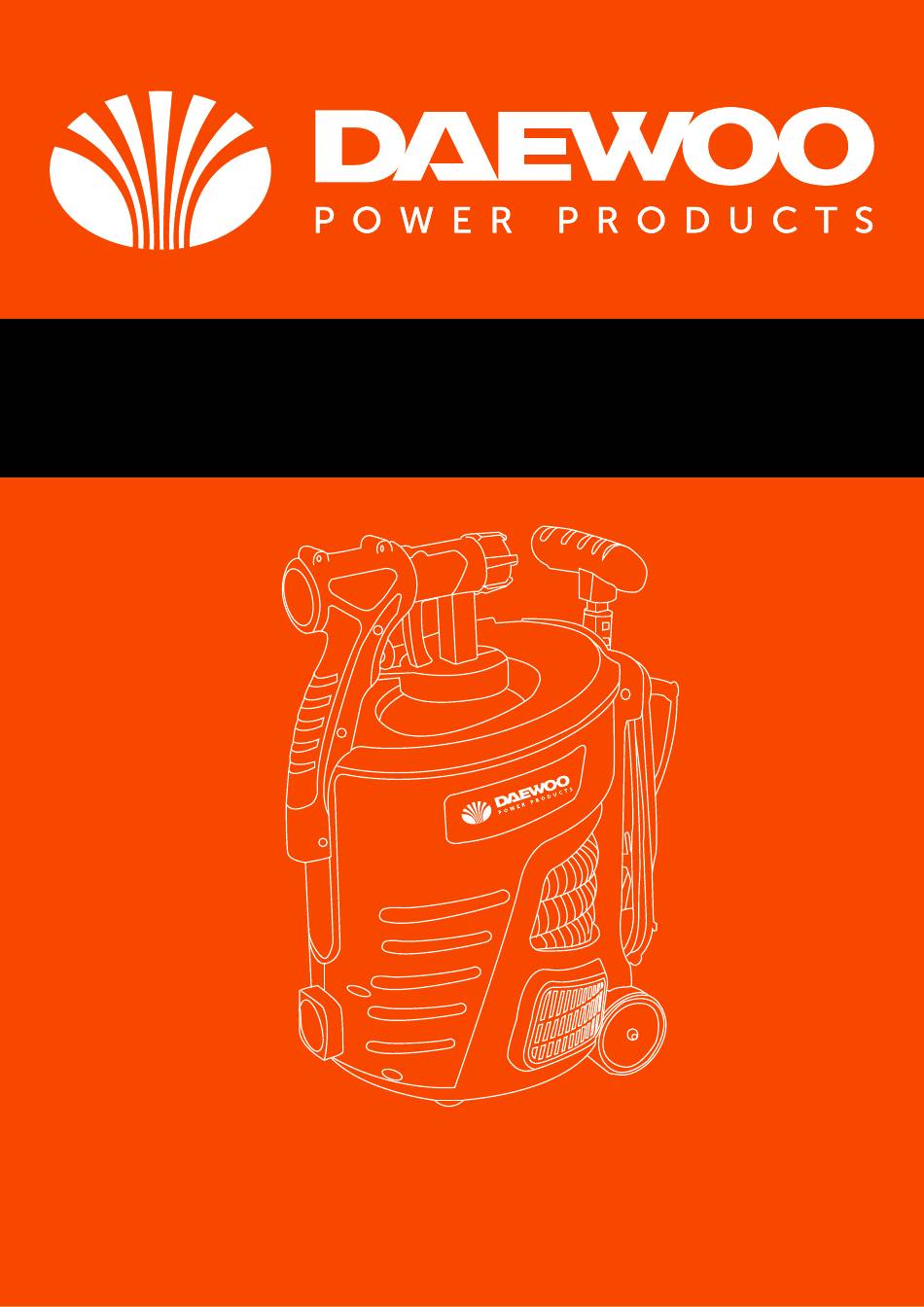

- Page 1 PAINT GUN DASP700 USER'S MANUAL www.daewoopowerproducts.com Manufactured under license of Daewoo International Corporation, Korea...
-
Page 2: Table Of Contents
INDEX 1. SAFETY INSTRUCTIONS ........................2 2. TECHNICAL DATA ........................... 4 3. EXPLANATORY DIAGRAM ........................5 4. VISCOSITY TABLE........................... 6 5. STARTING UP............................6 6. SPRAYING TECHNIQUE ......................... 8 7. TROUBLESHOOTING ........................... 10 WARRANTY ............................... 11... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS For electric tools Caution! Observe the following basic safety precautions when using electric tools in order to protect yourself against electric shock, danger of injury and fire. Read and observe these rules before using the unit. Keep the safety instructions in a safe place. 1. - Page 4 - When working with the device PLD3030A inside and outside care must be taken that no solvent vapors are sucked into the device. - When working outdoors observe wind direction. When working indoors ensure that there is suffi- cient ventilation. - Do not spray at the device.
-
Page 5: Technical Data
and the work to be performed - Have your power tool serviced by a qualified repair person using only identical replacement parts. - Forbidden to spray to the hatch of the the motor and etc. - When spraying normally, the motor should not be under the head of the gun and the container 2. -
Page 6: Explanatory Diagram
result with a respective saving of coating material and is therefore good for the environment. Function description The motor blower produces a flow of air which flows through the air hose to the spray gun. The air flow atomizes the coating material at the nozzle and also pressurizes the container. This pressure pushes the coating material up the ascending pipe to the nozzle. -
Page 7: Viscosity Table
1. Thoroughly stir the coating material before starting measurement. 2. Immerse the viscosity measuring cup (contents 100cm3).completely in the coating material below rim level and allow to fill. 3. Lift the viscosity measuring cup and measure the time in seconds until the flow of coating mate- rial stops. - Page 8 Spraying with horizontal objects (fig.6) Turn ascending pipe A forwards. Spraying overhead objects (fig.7) Turn ascending pipe A to point backards. 4. Fill container with coating material. Screw firmly onto spray gun . 5. Place the spray gun in the spray gun holder.
-
Page 9: Spraying Technique
Adjusting the spray gun Choice of spraying effects A =vertical flat jet for horizontal surfaces B =horizontal surfaces for vertical surfaces. C =round jet for corners and edges and other badly accessible places Adjusting the required spray effect With the union nut (3) loosed: turn air cap (1) to the required spray effect. - Page 10 Important: start spraying outside the surface to be sprayed and avoid stopping on the surface. Right (fig.11) : Always hold the spray gun at an even distance of approx. 5-15cm from the object to be sprayed. Move the spray gun evenly across or up and down, depending on the adjusted spraying effect. Wrong (fig.12): Excessive paint mist formation;...
-
Page 11: Troubleshooting
7. Then completely empty the container. Always keep the container seal free of coating material and check for damage. 8. Clean the outside of the spray gun and container with a cloth soaked in solvent or water. 9. Unscrew the union nut. Remove air cap .Clean the air cap and nozzle with brush and solvent or water . -
Page 12: Warranty
WARRANTY CARD Product model Date of sale Company Serial number Client's signature Username The product is in good conditions and fully complete. Read and agree the terms of the warranty. GUARANTEE The warranty period starts from the date of sale of the products and covers 1 year for all power products. During the warranty period, free failures caused due to the use of poor-quality materials in the production and manufacturer workmanship admitted fault are removed. - Page 13 Manufactured under license of Daewoo International Corporation, Korea...
