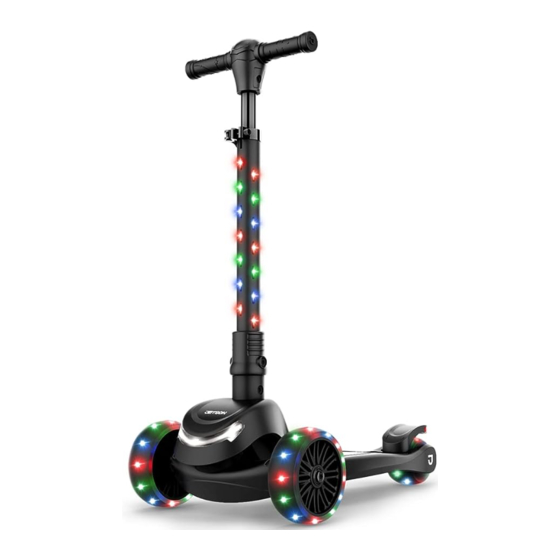

- Page 1 Jupiter Mini 3-Wheel Light-Up Kick Scooter. A guide for your ride. IMPORTANT: READ CAREFULLY AND RETAIN FOR FUTURE REFERENCE. MODELS: JJUP3W-RGB | JJUP3W-BLK | JJUP3W-BLU | JJUP3W-RED Designed in Brooklyn...
- Page 3 Jetson's top two riding rules: Be safe. Have fun!
-
Page 5: Table Of Contents
Contents Safety Warnings ......................4 Product Overview ......................5 Specs &... -
Page 6: Safety Warnings
Safety Warnings • Before use, please read the user manual and safety warnings carefully, and make sure you understand and accept all the safety instructions. The user will be responsible for any loss or damage caused by improper use. • Before each cycle of operation, the operator shall perform the preoperation checks specified by the manufacturer: That all guards and pads originally supplied by the manufacturer are in proper place and in serviceable condition;... - Page 7 For more information go to: www.P65Warnings.ca.gov. MODIFICATIONS Do not attempt to disassemble, modify, repair, or replace the unit or any components of the unit without instruction from the Jetson Care Team. This will void any warranty, and can lead to malfunctions which may cause injury.
-
Page 8: Product Overview
Product Overview 1. HANDLEBAR 2. LIGHTING BUTTON 3. STEM CLAMP 4. STEM (LED LIGHT-UP) 5. FOLDING MECHANISM 6. HEADLIGHT 7. FRONT WHEEL (MOTION-ACTIVATED LED LIGHT-UP) 8. DECK 9. REAR FOOT BRAKE 10. TAIL LIGHT 11. REAR WHEEL (MOTION-ACTIVATED LED LIGHT-UP) TOOL INCLUDED: 2-BIT PHILLIPS-HEAD SCREWDRIVER AND ALLEN KEY TOOL... - Page 9 9 10 NOTE: IMAGES MAY NOT REFLECT EXACT APPEARANCE OF ACTUAL PRODUCT.
-
Page 10: Specs & Features
Specs & Features • WHEEL SIZE: F: 4.7” R: 3.1" • UNFOLDED DIMS: 22”(L) × 10.4”(W) × 23.7”(H) • FOLDED DIMS: 22.8”(L) × 10.4”(W) × 6.3”(H) • DECK SIZE: 21.7” × 4.9” • HEIGHT ADJUSTABLE HANDLEBAR: 23.7”- 31.7” • WEIGHT LIMIT: 132 LBS •... -
Page 11: Unfolding/Folding Your Scooter
1. Getting Started Unfolding/Folding your Scooter 1. LOCATE THE ARROW ON THE FOLDING MECHANISM. 2. MOVE THE FOLDING MECHANISM UP OR DOWN THE STEM, DEPENDING ON THE DIRECTION OF THE ARROW. FOLDING MECHANISM... - Page 12 LOWER TO FOLD. LIFT TO UNFOLD. 3. TO UNFOLD, RAISE THE STEM UNTIL IT IS UPRIGHT AND CLICKS INTO PLACE. 4. TO FOLD, LOWER THE STEM UNTIL IT CLICKS INTO PLACE ABOVE THE DECK.
-
Page 13: Adjusting The Handlebar
STEM CLAMP STEM CLAMP LEVER KNOB Adjusting the Handlebar 1. USING THE ALLEN KEY TIP OF THE 2-BIT TOOL, TWIST THE KNOB TO LOOSEN THE STEM CLAMP. 2. OPEN THE STEM CLAMP LEVER. - Page 14 STEM PIN HOLE STEM PIN 3. WHILE PRESSING IN THE STEM PIN, RAISE OR LOWER THE HANDLEBAR UNTIL THE PIN CLICKS INTO ANOTHER STEM PIN HOLE. 4. CLOSE THE STEM CLAMP LEVER AND USE THE ALLEN KEY TO TWIST THE KNOB AND TIGHTEN THE CLAMP. 5.
-
Page 15: Inserting The Batteries
Inserting the Batteries 1. OPEN AND REMOVE THE BATTERY COMPARTMENT COVER, LOCATED UNDER THE DECK, WITH THE SCREWDRIVER TIP OF THE 2-BIT TOOL. 2. PLACE 3 AA BATTERIES INSIDE ACCORDING TO THE +/- DIRECTIONS INDICATED INSIDE THE BATTERY COMPARTMENT. 3. SCREW THE BATTERY COMPARTMENT COVER BACK ON. SCREW BATTERY COMPARTMENT... -
Page 16: Riding Your Scooter
3. TO COAST, PLACE KICKING FOOT ON THE REAR OF THE DECK TURNED OUTWARD AT A SLIGHT ANGLE FOR STABILITY. LIGHTING BUTTON • THE JUPITER MINI IS A LEAN TO STEER SCOOTER. TO TURN, SLIGHTLY LEAN LEFT OR RIGHT WHILE RIDING AND THE SCOOTER WILL VEER ACCORDINGLY. -
Page 17: Using The Brake
Using the Brake PRESS DOWN GENTLY TO SLOW DOWN. APPLY MORE PRESSURE TO COME TO A COMPLETE STOP. -
Page 19: Helmet Safety
Helmet Safety PROPER POSITIONING: IMPROPER POSITIONING: THE FOREHEAD IS COVERED THE FOREHEAD IS EXPOSED. BY THE HELMET. A FALL COULD RESULT IN SERIOUS INJURY. * WEAR A HELMET, APPROPRIATE CLOTHING, SHOES, AND SAFETY GEAR. AVOID CLOTHING THAT CAN GET CAUGHT INTO OR UNDER THE WHEELS. -
Page 21: Care, Maintenance, & Warranty
All new Jetson products, excluding parts and accessories, are warranted against defects in materials and workmanship for a period of one year from the date of original retail purchase when used in accordance with Jetson's user manuals (refer to ridejetson.com/support). - Page 22 Stay connected. Be sure to follow @ridejetson on social media to learn about fantastic offers, giveaways, and all the latest Jetson news. Loving your ride? Then be sure to leave a review at ridejetson.com/reviews. We can’t wait to hear from you!
- Page 24 Date Code: 08/2022 Document Edition: v2.1 © 2022, JETSON. ALL RIGHTS RESERVED. Manufactured by JETSON ELECTRIC BIKES LLC. No portion of this document, including shape, copy, graphics, and design, may be reproduced or transmitted in any form or by any means.
