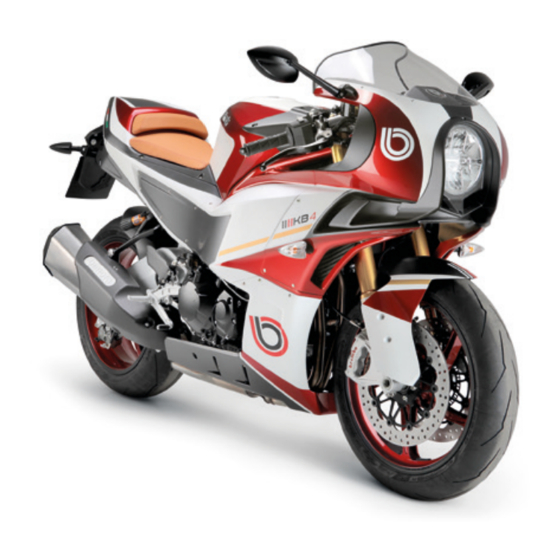

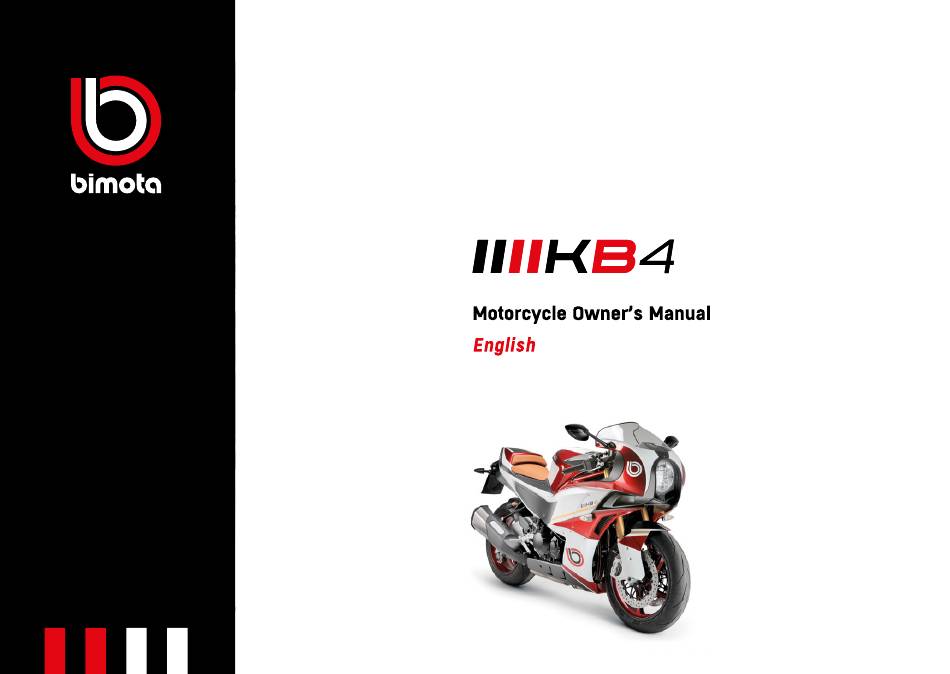

Page 1 ENGLISH Motorcycle Owner‘s Manual Rev. 0 del 08/12/2021 Approved : After Sales Original instructions...
Page 3 SAFETY INFORMATION Quick Reference Guide GENERAL INFORMATION This Quick Reference Guide will HOW TO RIDE THE MOTORCYCLE assist you in finding the information you’re looking for. MAINTENANCE AND ADJUSTMENT APPENDIX MAINTENANCE RECORD A Table of Contents is included after the Foreword.
Page 4 Whenever you see the symbols NOTE shown below, heed their instructions! æ NOTE indicates information that may Always follow safe operating and help or guide you in the operation or maintenance practices. service of the vehicle. DANGER DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
Page 5 NOTICE THIS PRODUCT BEEN MANUFACTURED FOR USE IN A REASONABLE AND PRUDENT MANNER QUALIFIED OPERATOR AND AS A VEHICLE ONLY.
Page 6 Bimota strongly recommends that all operators of this vehicle enroll in a motorcycle rider training program to attain awareness of the mental and physical requirements necessary for safe motorcycle operation.
Page 7 This publication includes the latest information available at the time of printing. However, there may be minor differences between the actual product and illustrations and text in this manual. All products are subject to change without prior notice or obligation. Bimota S.p.a. © 2021 Bimota S.p.a. Apr. 20, 2021...
Page 8: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION ......11 Location of Parts ......... 35 Read Owner’s Manual ......11 Meter Instruments ......38 Training ..........11 Speedometer/Tachometer ....49 Daily Checks and Periodic Maintenance .. 11 Features...........50 Loading and Accessories Information ..12 Control Buttons ........
Page 9 Emergency ........121 Rear Shock Absorber..... 167 Parking ..........122 Setting Tables ....... 169 Integrated Riding Modes ....124 Wheels ..........174 Bimota TRaction Control (KTRC) ..129 Battery ..........178 Power Mode ........131 Headlight ..........182 Electronic Cruise Control System ..131 Fuses ..........183 Bimota Quick Shift (KQS)....
Page 10 APPENDIX ...........191 Storage ..........191 Troubleshooting Guide ..... 194 Environmental Protection ....199 Location of DFI System Diagnostic Connector .........200 Vehicle Data Recording ....200 MAINTENANCE RECORD ....202...
Page 11: Safety Information
MAINTENANCE AND ADJUSTMENT safely. chapter for more information. Training Bimota strongly recommends that all operators of this vehicle complete a suitable motorcycle rider training program to learn the proper skills and techniques necessary for safe...
Page 12: Loading And Accessories Information
Weight of rider, luggage, and accessories thoroughly checked at an authorized must not exceed 111 kg (244 lb). Bimota dealer as soon as possible. With the exception of genuine Bimota Parts and Accessories, Bimota has no control over the design.
Page 13: Passenger
Not allowed involved. NOTE æ Bimota Parts Accessories have been specially designed for use on Bimota motorcycles. We strongly recommend that all parts and accessories you add to your motorcycle genuine Bimota components. Because a motorcycle is sensitive to...
Page 14: Accessories
14 SAFETY INFORMATION Baggage and Luggage 1. All baggage should be carried as low as possible to reduce the effect on the motorcycle’s center of gravity. Baggage weight should also be distributed equally on both sides of the motorcycle. Avoid carrying baggage that extends beyond the rear of the motorcycle.
Page 15: Other Load
Bimota cannot assume handling of the motorcycle, not only responsibility for the results of such due to their weight, but also due to unintended use of the motorcycle.
Page 16: Safe Operation
Have your motorcycle thoroughly checked at poisonous gas. Inhaling carbon a Bimota dealer as soon as possible. monoxide can cause serious brain injury or death. DO NOT run the engine in enclosed areas. Operate Safe Operation only in a well-ventilated area.
Page 17: Fueling
SAFETY INFORMATION 17 Fueling Protective Gear and Clothing Helmet WARNING Bimota strongly recommends the operator wear a helmet even if this is Gasoline is extremely flammable not a legal requirement. and can be explosive under certain Make sure that your helmet fits conditions.
Page 18: Safe Riding Techniques
18 SAFETY INFORMATION Gloves Boots Wear gloves which have suitable Wear proper protective boots that fit protection for your hands, especially properly and do not interfere with gear against abrasion. shifting or braking. Clothing Safe Riding Techniques Wear the riding wear which have protectors for each parts of the body Keep Hands on Handlebars (chest, shoulders, back, elbows and...
Page 19 SAFETY INFORMATION 19 Accelerate and Brake Smoothly control vehicle speed by closing the throttle so that the engine can act as an In general your actions should auxiliary brake. Use the front and rear be smooth as sudden acceleration, brakes for primary braking. braking or turning may cause loss of control, especially when riding in wet Riding in Wet Conditions...
Page 20: Additional Considerations For High Speed Operation
20 SAFETY INFORMATION acceleration are important not only for Additional Considerations for High safety and low fuel consumption but Speed Operation also for long vehicle life and quieter operation. Riding on Rough Roads WARNING Exercise caution, slow down, and Handling characteristics grip the fuel tank with the knees for a motorcycle at high speeds may...
Page 21 SAFETY INFORMATION 21 Brakes Engine Oil The importance of the brakes, To avoid engine seizure and resulting especially during high speed operation, loss of control, make sure that the oil cannot be overemphasized. Check to level is at the upper level line. see that they are correctly adjusted Coolant and functioning properly.
Page 22: General Information
22 GENERAL INFORMATION GENERAL INFORMATION Specifications PERFORMANCE Maximum Horsepower 104.5 kW (142 PS) @10 000 r/min (rpm) Maximum Torque 111.0 N·m (11.3 kgf·m, 82 ft·lb) @8 000 r/min (rpm) Minimum Turning Radius 3.1 m (10.2 ft) DIMENSIONS Overall Length 2050 mm (80.7 in.) Overall Width 774mm (19.7 in.) Overall Height...
Page 23 GENERAL INFORMATION 23 Cylinder Numbering Method Left to right, 1-2-3-4 Firing Order 1-2-4-3 Fuel System FI (Fuel Injection) Ignition System Battery and coil (transistorized ignition) Ignition Timing 10.0° BTDC @1 100 r/min (rpm) ~ 40.2° BTDC @5 200 (Electronically advanced) r/min (rpm) Spark Plug: Type...
Page 24 24 GENERAL INFORMATION 1.600 (24/15) 1.389 (25/18) 1.238 (26/21) 1.107 (31/28) FRAME Caster 24.0° Trail 98 mm (3.9 in.) Tire Size: Front 120/70ZR17 M/C (58W) Rear 190/50ZR17 M/C (73W) Rim Size: Front 17M/C × MT3.50 Rear 17M/C × MT6.00 Fuel Tank Capacity 19,5 L (5.0 US gal) Brake Fluid: Front...
Page 25 GENERAL INFORMATION 25 Even if any one element of LED (Light Emitting Diode) light does not go on, consult with an authorized Bimota dealer. Specifications are subject to change without notice, and may not apply to every country.
Page 26: Serial Number Locations
26 GENERAL INFORMATION Serial Number Locations The engine and frame serial numbers are used to register the motorcycle. They are the only means of identifying your particular machine from others of the same model type. These serial numbers may be needed by your dealer when ordering parts.
Page 27: Location Of Labels
Bimota dealer and install it in the correct position. NOTE æ The sample warning labels in this 1. Brake Fluid (Front) section have part numbers to help you and your dealer obtain the correct replacement.
Page 28 28 GENERAL INFORMATION 2. Brake Fluid (Rear) 3. Battery Poison/Danger...
Page 29 GENERAL INFORMATION 29 4. Radiator Cap Danger 5. Fuel Notice and 6. Identification 7. Important Drive Chain Information 8. Tire and Load Data...
Page 30 30 GENERAL INFORMATION 9. Stationary Noise Test Information...
Page 31 GENERAL INFORMATION 31...
Page 32 32 GENERAL INFORMATION 1. Safety alert symbol 2. Read Owner’s Manual, see page 11 3. Fuel level, see page 102 4. Octane rating of gasoline, see page 101...
Page 33 GENERAL INFORMATION 33 1. Drive chain slack, see page 158 Use fuel identified by either of the above symbols. 1. Gasoline containing up to 5% ethanol by volume 2. Gasoline containing up to 10% ethanol by volume See page 101.
Page 34 34 GENERAL INFORMATION 8. Front and rear tire pressure and load capacity 9. Stationary noise test...
Page 35: Location Of Parts
GENERAL INFORMATION 35 Location of Parts 1. Rear View Mirrors 7. Throttle Grip 12. Ignition Switch/Steering 2. Clutch Lever 8. Right Handlebar Switches Lock 3. Engine Start / Stop Switch 9. Spring Preload Adjusters 13. Left Handlebar Switches 4. Meter Instruments 10.
Page 36 36 GENERAL INFORMATION 1. Headlight 8. Brake/Tail Light 2. Turn Signal Lights 9. License Plate Light 3. Spark Plugs 10. Drive Chain 4. Air Cleaner 11. Chain Adjuster 5. Fuel Tank 12. Side Stand 6. Rider’s Seat 13. Shift Pedal 7.
Page 37 GENERAL INFORMATION 37 1. Brake Fluid Reservoir 5. Battery 11. Oil Level Inspection (Rear) 6. Fuse Boxes Window 2. Spring Preload Adjuster 7. Fuel Tank Cap 12. Rear Brake Pedal 3. Rebound Damping Force 8. Brake Discs 13. Rear Brake Light Switch Adjuster 9.
Page 38: Meter Instruments
38 GENERAL INFORMATION Meter Instruments The display layout can be switched from two different types. Refer to the Menu Mode section. 1. Display Screen 3. Right Meter Button 2. Left Meter Button 4. Ambient Brightness Sensor...
Page 39 GENERAL INFORMATION 39 Display Layout (Type 1) 1. Gear Position Indicator 2. Integrated Riding Mode Indicator 3. KQS Mode Indicator 4. Cruise Control System Indicator 5. Tachometer 6. Speedometer 7. Economical Riding Indicator 8. Service Indicator 9. Fuel Gauge 10. Multifunction Display - Odometer - Trip Meter A/B - Lean Angle...
Page 40 40 GENERAL INFORMATION Display Layout(Type2) 1. Integrated Riding Mode Indicator 2. Gear Position Indicator 3. Dual function Gauge - Throttle - Front Brake Pressure 4. Cruise Control System Indicator 5. KQS Mode Indicator 6. Tachometer 7. Speedometer 8. Fuel Gauge 9.
Page 41 GENERAL INFORMATION 41 Background Color Change æ However, when the average mileage, average speed, or total time is ÿ Push the RESET button to invert displayed on the multifunction display, the background color of the display the right button is used for the resetting. screen.
Page 42 42 GENERAL INFORMATION Indicators Left Turn Signal Indicator (Green) High Beam Indicator (Blue) Engine Warning Indicator (Yellow) Right Turn Signal Indicator (Green) Neutral Indicator (Green) KTRC Indicator (Yellow) ABS Indicator (Yellow) Cruise Control Indicator (White) Fuel Level Warning Indicator Immobilizer Warning Indicator (Red) Battery Warning Indicator (Red) Coolant Temperature Warning Indicator (Red)
Page 43 When the ignition switch is turned on, all indicators go on/off as shown in the table. If any indicator does not operate as shown, have it checked by an authorized Bimota dealer.
Page 44 Blink a miscommunication between the antenna and key. Have the immobilizer system checked by an authorized Bimota dealer. This indicator goes on if the battery voltage is less than 11.0 V or more than 16.0 V.
Page 45 Bimota dealer. segments) The DFI system has malfunctioned. Have it checked by an authorized Bimota dealer. Blink The ABS has malfunctioned. ABS will not work but ON*1 conventional brakes function. Have the ABS checked by an authorized Bimota dealer.
Page 46 If this happens, first turn the ignition switch off, and then back on, and ride the motorcycle at 5 km/h (3.1 mph) or more. The ABS indicator should then go off. If it does not, have the ABS checked by an authorized Bimota dealer.
Page 47 GENERAL INFORMATION 47 When Warning Messages Display When warning messages appear, there could be a problem with vehicle function. Have them checked by an authorized Bimota dealer.
Page 48 48 GENERAL INFORMATION Other Indicators *No. Indicators Status When the ignition switch is turned off, this indicator will start blinking*2, which indicates that the immobilizer system is functioning. After 24 hours, the immobilizer warning indicator will stop blinking. However, the immobilizer system is still functioning. When the KTRC functions, this indicator blinks.
Page 49: Speedometer/Tachometer
GENERAL INFORMATION 49 Speedometer Speedometer/Tachometer The speedometer is digital and can be set for km/h or mph. The unit setting can be changed according to local regulations. Make sure the unit setting (km/h or mph) is correctly displayed before riding. Refer to the Menu Mode section.
Page 50: Features
50 GENERAL INFORMATION Shift-up Indicator Function Features shift-up indicator function Gear Position Indicator indicates the timing for the next up shift. Before reaching the set engine speed, the tachometer and the gear position indicator starts blinking slowly, and the gear position indicator changes color to orange.
Page 51 GENERAL INFORMATION 51 The shift-up indicator function can Fuel Gauge be selected on or off, and the set value can be adjusted. Shift-up Indicator Setting ÿ Refer to Vehicle Settings in the Menu Mode section. Integrated Riding Mode Indicator The fuel level in the fuel tank is shown by the number of segments displayed between E (empty) and F (full).
Page 52 120 °C (248 °F) or more, good, have the cooling system checked “Hi” appears and starts blinking, the by an authorized Bimota dealer. coolant temperature warning indicator continues to appear. This warns the operator that the coolant temperature...
Page 53 Cruise Control System Indicator The current setting of the KQS is shown. Refer to the Bimota Quick Shift (KQS) section in the HOW TO RIDE THE MOTORCYCLE chapter. KQS Setting ÿ...
Page 54 54 GENERAL INFORMATION Bluetooth Connection Indicator ® A. Telephone Icon B. Mail Icon How to Setup Bluetooth Connection The bluetooth icon appears when ÿ Refer to Bluetooth in the Menu Mode your smart device is connected to the section. vehicle. The telephone icon appears when a phone call is received by your Bluetooth Connectivity...
Page 55 ® (Only on display layout Type 1) are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Bimota under license. The outside temperature around the vehicle is shown. NOTE æ The outside temperature can be displayed from -20 °C (-4 °F) to 60 °C...
Page 56 56 GENERAL INFORMATION æ It may not be displayed correctly in this meter when the vehicle speed is 20 km/h (12 mph) or less, or the outside temperature sensor gets wet. The reading of the outside temperature meter does not increase when the speed is 20 km/h (12 mph) NOTE or less.
Page 57 GENERAL INFORMATION 57 Economical Riding Indicator WARNING (Only on display layout Type 1) Failing to properly observe the road ahead increases the chance of an accident resulting in severe injury or death. Do not concen-trate on the economical riding in-dicator by taking your eyes off the road;...
Page 58 58 GENERAL INFORMATION Dual-function Gauge Setting This indicator shows the acceleration/ deceleration rate of the vehicle. When ÿ Push the lower MODE button or acceleration is greater, the indicator the right meter button to switch the moves more to the back side of the gauge displayed.
Page 59: Control Buttons
Bimota maintenance schedule, user defined interval for oil, and user defined unit are used to operate the various interval for regular maintenance to functions of the display screen.
Page 60: Multifunction Display
60 GENERAL INFORMATION Multifunction Display ÿ Push the upper MODE or left meter button to select the items A. Upper MODE Button B. SELECT Button shown below. The display items are C. Lower MODE Button switched in the following order. D.
Page 61 GENERAL INFORMATION 61 Current Mileage Average Mileage Cruising Range Average Speed Total Time Battery Voltage : Flow when pushing upper MODE or left meter button ÿ For the display layout type 1, push the lower MODE or right meter button to select the items shown below.
Page 62 62 GENERAL INFORMATION Odometer The trip meter shows the distance traveled since it was reset. NOTE æ When the trip meter reaches 9999.9 while riding, the meter resets to 0.0 and continues counting. odometer shows total How to Reset distance. This meter cannot be reset. Refer to the Multifunction Display Resetting section.
Page 63 GENERAL INFORMATION 63 Maximum Lean Angles NOTE æ When the ignition switch is turned on, the numerical value shows “– –.–.” After a few seconds of riding the numerical value is displayed. Average Mileage This shows the maximum lean angles of the vehicle by numerical value.
Page 64 64 GENERAL INFORMATION Cruising Range accurate until enough fuel is added to stop the fuel level warning indicator from blinking. Average Speed This indicates the cruising range from the remaining fuel in the fuel tank. It is renewed every 20 seconds. NOTE æ...
Page 65 GENERAL INFORMATION 65 Total Time Battery Voltage This shows the amount of time that This shows the current battery has elapsed while the ignition switch is voltage. turned on. NOTE NOTE æ The battery voltage is displayed in æ When the figures come to 99:59, the the 9.0 ~ 16.0 V range.
Page 66: Multifunction Display Resetting
66 GENERAL INFORMATION When only one resettable item is shown: Multifunction Display Resetting ÿ Push the RESET button and hold it The following multifunction display until resetting is done. items can be reset. There are two ways to reset. Trip Meter A/B Maximum Lean Angles Average Mileage Average Speed...
Page 67 GENERAL INFORMATION 67 : Flow when pushing and holding RESET button NOTE : Flow when pushing and holding RESET æ If the ignition switch is turned off button during resetting, the reset is not : Flow when pushing RESET button carried out.
Page 68 68 GENERAL INFORMATION Menu Mode The menu mode can set various : Flow when pushing and holding the left functions of the vehicle. meter button : Flow when pushing and holding the right NOTE meter button æ When the vehicle speed exceeds 5 km/h (3 mph), the menu mode cannot be displayed.
Page 69 GENERAL INFORMATION 69 Basic Operations in Menu Mode : Flow when pushing and holding SELECT button : Flow when pushing RESET button A. Move highlighted item B. Move highlighted item C. Shift to next screen (set) D. Go back to previous screen (cancel)
Page 70 70 GENERAL INFORMATION Vehicle Settings Enter the menu mode. ÿ Highlight “Vehicle Settings” using the upper or lower MODE button. ÿ Push the SELECT button to shift to the next screen. Shift Lamp: Turn shift-up indicator system on or off Engine Speed: Adjust engine speed of shift-up indicator KQS: Turn KQS on or off...
Page 71 GENERAL INFORMATION 71 ÿ Highlight “Shift Lamp” using the NOTE ÿ upper or lower MODE button. æ Refer to the Features section for ÿ Push the SELECT button to shift to details of the shift-up indicator. the next screen. ÿ Choose on or off using the upper or Engine Speed lower MODE button.
Page 72 : Flow when pushing RESET button NOTE ÿ This switches the KQS (Bimota æ Refer to the Bimota Quick Shift (KQS) Quick Shift) on or off. section in the HOW TO RIDE THE ÿ Highlight “KQS” using the upper or MOTORCYCLE chapter for details of lower MODE button.
Page 73 GENERAL INFORMATION 73 ÿ Highlight “Immobilizer Lamp” using NOTE ÿ the upper or lower MODE button. æ Refer to the Indicators section for ÿ Push the SELECT button to shift to details of the immobilizer warning the next screen. indicator blinking mode. ÿ...
Page 74 74 GENERAL INFORMATION Display Mode: Switch layout of LCD Brightness: Adjust backlight of LCD : Flow when pushing SELECT button : Flow when pushing RESET button Enter the menu mode. NOTE ÿ Highlight “Display” using the upper æ Refer to the Integrated Riding Mode or lower MODE button.
Page 75 GENERAL INFORMATION 75 : Flow when pushing SELECT button : Flow when pushing SELECT button : Flow when pushing RESET button : Flow when pushing RESET button Mode Brightness This switches the display layout. This adjusts the backlight brightness of the screen in three levels. ÿ...
Page 76 76 GENERAL INFORMATION Date and Clock Date: Adjust date Clock: Adjust clock : Flow when pushing SELECT button : Flow when pushing RESET button Format: Choose date and time notation Enter the menu mode. ÿ Highlight “Date and Clock” using the upper or lower MODE button.
Page 77 GENERAL INFORMATION 77 : Flow when pushing SELECT button : Flow when pushing SELECT button : Flow when pushing RESET button : Flow when pushing RESET button Format (Date) Date This switches the date format. ÿ Highlight “Date” using the upper or ÿ...
Page 78 78 GENERAL INFORMATION ÿ Highlight “Format” under “Clock” using the upper or lower MODE button. ÿ Push the SELECT button to shift to the next screen. ÿ Choose 12-hour clock 24- hour clock using the upper or lower MODE button. ÿ...
Page 79 GENERAL INFORMATION 79 Clock ÿ Highlight “Clock” using the upper or lower MODE button. ÿ Push the SELECT button to shift to the next screen. ÿ Adjust the clock using the upper or lower MODE button and the SELECT button. ÿ...
Page 80 Service Screen 2 of 2 Screen 1 of 2 Rider Setting: User defined interval for maintenance (user can set distance Bimota Service: Dealer defined interval maintenance reminder) for periodic maintenance (can be activated or deactivated by authorized NOTE Bimota dealer) æ...
Page 81 GENERAL INFORMATION 81 ÿ Enter the menu mode. ÿ Highlight “Oil Change” using the ÿ Highlight “Service” using the upper upper or lower MODE button. or lower MODE button. ÿ Push the SELECT button to shift to ÿ Push the SELECT button to shift to the next screen.
Page 82 82 GENERAL INFORMATION ÿ Highlight “In” under “Oil Change” using the upper or lower MODE button. ÿ Push the SELECT button to shift to the next screen. ÿ Set the desired distance using the upper or lower MODE button and the SELECT button.
Page 83 GENERAL INFORMATION 83 automatically when turning on this function or changing the distance. For example, when the current date is “2020.10.30,” it sets to “2021.10.30. ” : Flow when pushing SELECT button Rider Setting : Flow when pushing RESET button This allows the rider to set the ÿ...
Page 84 84 GENERAL INFORMATION Bluetooth ® Bluetooth: Turn Bluetooth wireless technology on or off Pairing: Switch pairing mode of Blue- tooth Regulatory: Display the acquired certi- fication mark NOTE æ To use the Bluetooth function, : Flow when pushing SELECT button “RIDEOLOGY APP”...
Page 85 GENERAL INFORMATION 85 ÿ Enter the menu mode. Bluetooth ÿ Highlight “Bluetooth” using the upper This switches the Bluetooth on or off. or lower MODE button. ÿ Highlight “Bluetooth” using the upper ÿ Push the SELECT button to shift to or lower MODE button.
Page 86 86 GENERAL INFORMATION A. Connected Device Name NOTE æ If the motorcycle does not have the paired device, it switches the pairing mode to “Open” automatically. Pairing This switches the pairing mode of Bluetooth. “Limited” is used when communication with the paired device. ”Open”...
Page 87 GENERAL INFORMATION 87 ÿ Choose “Limited” or “Open” using the upper or lower MODE button. When selecting “Open”, the motorcycle start searching for an unpaired device. ÿ Turn on the Bluetooth function of the unpaired device and launch the app. : Flow when pushing SELECT button : Flow when pushing RESET button : Flow when pushing lower MODE button...
Page 88 88 GENERAL INFORMATION ÿ In the pairing setting menu of the app, select “Ninja 10” and tap the connect button. The motorcycle displays the pass key (PIN) on the display screen. ÿ Enter the pass key (PIN) into the unpaired device. NOTE æ...
Page 89 GENERAL INFORMATION 89 Units Speed: Switch unit of speed between : Flow when pushing SELECT button kph and mph Fuel Mileage: Switch unit : Flow when pushing RESET button of fuel consumption Speed Temperature: Switch unit temperature between °C and °F ÿ...
Page 90 90 GENERAL INFORMATION : Flow when pushing SELECT button : Flow when pushing SELECT button : Flow when pushing RESET button : Flow when pushing RESET button Fuel Mileage NOTE This switches the unit of fuel æ The choices will change according to consumption.
Page 91: Menu Mode Keys
They should be re-registered to the ECU at that time. Bring all of your keys to an authorized Bimota dealer. Up to five keys can register to the ECU. If an ignition key is lost, it is strongly...
Page 92: Ignition Switch/Steering Lock
92 GENERAL INFORMATION NOTICE Ignition Switch/Steering The following can damage keys and Lock prevent the engine from being started, This is a three-position, key-operated therefore, do not: switch. ▪ Put two keys of any immobilizer The key can be removed when it is in system on the same key ring.
Page 93 GENERAL INFORMATION 93 Engine can be started. WARNING ÿ All electrical equipment can Turning the ignition switch to the ÿ be used. position while riding the motorcycle ÿ Key cannot be removed. shuts down the entire electrical ÿ Engine off. system (headlight, brake light, turn Electrical equipment is off.
Page 94: Right Handlebar Switches
94 GENERAL INFORMATION æ Do not leave the ignition switch at the position for an extended time with the engine stopped, or the battery may become totally discharged. æ Do not leave the hazard lights switched on for a long time without the engine running or the battery will become discharged.
Page 95: Left Handlebar Switches
GENERAL INFORMATION 95 NOTE Left Handlebar Switches æ Ordinarily, the ignition switch should be used to stop the engine. æ Although the engine stop switch stops the engine, it does not turn off all the electrical circuits and eventually the battery will be discharged.
Page 96 96 GENERAL INFORMATION Dimmer/Passing Button High or low beam can be selected with the dimmer/passing button like a trigger. To use the high beam, push the button out. To turn off the high beam, pull the button. To use the high beam for the passing, pull the button.
Page 97 GENERAL INFORMATION 97 Lower MODE Button is on. If covered, heat can build up in the headlight lens causing lens The lower MODE button is used for discoloration or melting, as well as setting the meter and integrated riding damage to the item covering the lens. mode.
Page 98: Brake Lever Adjuster
98 GENERAL INFORMATION Cruise control Refer to the Electronic Hazard Button setting: Push in the hazard button with the Cruise Control System section in the HOW ignition switch in the position. All turn TO RIDE THE MOTORCYCLE chapter. signal lights and turn signal indicators will blink.
Page 99: Clutch Lever Adjuster
GENERAL INFORMATION 99 [Brake Lever Adjustment] [Clutch Lever Adjustment] Adjuster Turn in ← → Turn out Adjuster Position Lever Position Far ← → Near Lever ← — → Near Position A. Adjuster B. Brake Lever A. Adjuster Clutch Lever Adjuster B.
Page 100: Fuel
Fuel Requirements Your Bimota engine is designed to use only unleaded gasoline with a minimum octane rating shown below. Never use gasoline with an octane rating lower than the minimum specified by Bimota to prevent severe engine damage.
Page 101 GENERAL INFORMATION 101 NOTICE Unleaded Fuel Type Gasoline If engine “knocking” or “pinging” Ethanol Content E10 or less occurs, use a different brand of gasoline of a higher octane rating. If Minimum Octane Research Octane this condition is allowed to continue, Rating Number (RON) 95 it can lead to severe engine damage.
Page 102: Filling The Tank
102 GENERAL INFORMATION Filling the Tank WARNING Avoid filling the tank in the rain or Gasoline is extremely flammable where heavy dust is blowing so that the and can be explosive under certain fuel does not get contaminated. conditions, creating the potential for serious burns.
Page 103 GENERAL INFORMATION 103 NOTICE Never fill the tank so the fuel level rises into the filler neck. If the tank is overfilled, heat may cause the fuel to expand and flow into the Evaporative Emission Control System resulting in hard starting, engine hesitation and noncompliance with the emission regulation.
Page 104 104 GENERAL INFORMATION ÿ The key can be removed by turning counterclockwise to the original position. ÿ Close the key hole cover. NOTICE Never fill the tank completely to the top. If the tank is filled completely to the top, heat may cause the fuel expand overflow...
Page 105: Side Stand
GENERAL INFORMATION 105 æ Do not push on the key to close the Seats cap, or the cap cannot be locked. Side Stand Always kick the stand fully up before moving the motorcycle. The engine will stop automatically if the motorcycle is in gear and the clutch is released with the side stand down.
Page 106: Footrest
106 GENERAL INFORMATION ÿ Rotate the eccentric adjuster (A) Footrest with the special tool provided to find the best position for the footrest The right footrest and brake lever can be adjusted in position to obtain better ÿ Rotate the eccentric Pin (C) to find comfort the best position for the brake lever ÿ...
Page 107: Footrest
GENERAL INFORMATION 107 ÿ Rotate the eccentric adjuster (A) Footrest with the special tool provided to find the best position for the footrest The left footrest and gear change ÿ Rotate the eccentric Pin (C) to find lever can be adjusted in position to obtain better comfort the best position for the gear change lever...
Page 108: Space For Documents
108 GENERAL INFORMATION Space for documents The space for documents is located under the rear cover of the body. A. Bolt The gear change lever can be adjusted to obtain short or long stroke during the change A. Document space ÿ...
Page 109: Event Data Recorder
GENERAL INFORMATION 109 Event Data Recorder In common with many other vehicle manufacturers, Bimota has equipped this motorcycle with an event data recorder (EDR). The purpose of this device is to record data that assists with understanding of how some of the vehicle’s systems were performing...
Page 110 EDR is special equipment and access to the damaged. EDR is required. Bimota will not access æ This device does not collect or store or share the EDR information without personal data or information (e.g.
Page 111: How To Ride The Motorcycle
HOW TO RIDE THE MOTORCYCLE 111 HOW TO RIDE THE MOTORCYCLE NOTE Break-In æ You can ride above the maximum The first 1 000 km (600 miles) of use engine revolution stated in the break- is the break-in period. in table briefly if necessary. Brief Follow the recommendations below periods above the listed engine to maintain the vehicle’s performance...
Page 112: Starting The Engine
A. Engine Start/Stop Switch the owner has the initial maintenance ÿ Turn the ignition key to the service performed by an authorized position. Bimota dealer. ÿ Make sure the transmission is in neutral. Starting the Engine ÿ Check that the engine start/stop switch is in the position.
Page 113 HOW TO RIDE THE MOTORCYCLE 113 æ The motorcycle is equipped with a vehicle-down sensor which causes the engine to stop automatically if the motorcycle falls down. After righting the motorcycle, first turn the ignition key to the position and then back to the position before starting the engine.
Page 114 114 HOW TO RIDE THE MOTORCYCLE NOTE æ The motorcycle is equipped with a starter lockout switch. This switch is designed so that the engine does not start if the transmission is in gear and the side stand is down. However, the engine can be started if the clutch lever is pulled and the side stand is fully up.
Page 115: Moving Off
HOW TO RIDE THE MOTORCYCLE 115 æ The motorcycle is equipped with NOTICE a side stand switch. This switch is Do not let the engine idle longer than designed so that the engine does not 5 minutes, or engine over-heating and start if the transmission is in gear and damage may occur.
Page 116 116 HOW TO RIDE THE MOTORCYCLE WARNING Downshifting to a lower gear at high speed causes engine rpm to increase excessively, potentially damaging the engine and it may also cause the rear wheel to skid and cause an accident. Down-shifting should be done below 5 000 rpm for each gear.
Page 117: Braking
HOW TO RIDE THE MOTORCYCLE 117 ÿ For emergency braking, disregard Braking downshifting, and concentrate on applying the brakes as hard as ÿ Close the throttle completely, leaving possible without skidding. the clutch engaged (except when ÿ Even in motorcycles equipped with shifting gears) so that the engine will ABS, braking during cornering may help slow down the motorcycle.
Page 118: Anti-Lock Brake System (Abs)
118 HOW TO RIDE THE MOTORCYCLE wheel lock-up and allows stable steering control while stopping. Brake control function is identical to that of a conventional motorcycle. The brake lever is used for the front brake and the brake pedal for the rear brake.
Page 119 HOW TO RIDE THE MOTORCYCLE 119 or downhill surfaces, the stopping WARNING distance of a motorcycle with ABS ABS cannot protect the rider from may be longer than that of an all possible hazards and is not equivalent motorcycle without ABS. a substitute for safe riding practices.
Page 120: Bimota Intelligent Antilock Brake System (Kibs)
ABS and can Bimota Intelligent antilock lead to extended braking distance. The rider could have an accident as Brake System (KIBS) a result. Bimota recommends use of KIBS regulates smoother braking the recommended standard tires for performance during sports riding. this motorcycle.
Page 121: Stopping The Engine
WARNING an Emergency KIBS cannot protect the rider from all possible hazards and is not Your Bimota Motorcycle has been a substitute for safe riding practices. designed and manufactured to provide Be aware of how the KIBS system you optimum safety and convenience.
Page 122: Parking
122 HOW TO RIDE THE MOTORCYCLE 2. During removal of the air cleaner, Parking dirt is allowed to enter and jam the fuel injection system. WARNING In an emergency situation such as Operating or parking the vehicle throttle failure, your vehicle may be near flammable materials can cause stopped by applying the brakes and a fire, and can result in property...
Page 123 HOW TO RIDE THE MOTORCYCLE 123 If parking inside a garage or other WARNING structure, be sure it is well ventilated and the motorcycle is not close to any The engine and exhaust system get source of flame or sparks; this includes extremely hot during normal operation any appliance with a pilot light.
Page 124: Integrated Riding Modes
124 HOW TO RIDE THE MOTORCYCLE ROAD: Integrated Riding Modes Power mode KTRC RAIN: Power mode KTRC How to Switch Integrated Riding Modes ÿ Push and hold the upper or lower This motorcycle can change its MODE button to switch the mode. performance characteristics with the press of a button only.
Page 125 HOW TO RIDE THE MOTORCYCLE 125 æ When the throttle grip is open. RIDER Mode In addition to three different riding modes, the RIDER mode that can be set to your preference. Two system parameters are adjustable manually: Power modes and KTRC. To use the RIDER mode, RIDER mode must be turned on in the vehicle setting.
Page 126 126 HOW TO RIDE THE MOTORCYCLE ordinary display, push the RESET button until the screen is shifted. æ To display RIDER mode parameters, push SELECT button. : Flow when pushing and holding the upper MODE button : Flow when pushing and holding the lower MODE button ÿ...
Page 127 HOW TO RIDE THE MOTORCYCLE 127 RIDER Mode Parameters How to Change Parameters By combining the power mode and KTRC, some combination settings are available to suit your preference. The combination of each mode should be decided according to riding skill and road conditions.
Page 128 128 HOW TO RIDE THE MOTORCYCLE ÿ Push the SELECT button to shift to ÿ Push the SELECT button the detailed setting screen. choose the mode using the upper or ÿ The screen cannot be shifted on lower MODE button. following situations: Mode Characteristics...
Page 129: Bimota Traction Control (Ktrc)
No intervention Middle High A. KTRC OFF Indicator NOTE æ Operate the throttle carefully while Bimota TRaction Control KTRC is off because rear wheelspin (KTRC) cannot be controlled. KTRC is an intelligent system that æ When KTRC is off, KTRC OFF...
Page 130 KTRC. Bimota recommends use of the recommended WARNING standard tires for this motorcycle. KTRC cannot protect the rider from all possible hazards and is not a substitute KTRC Indicator for safe riding practices.
Page 131: Power Mode
HOW TO RIDE THE MOTORCYCLE 131 KTRC Modes Power Mode KTRC determines traction The power mode determines the control characteristics with three mode engine power output characteristics selections. KTRC can also be set to and has two settings. OFF. Mode F (Full Power): Mode 1: The highest engine power output is KTRC has the least intervention...
Page 132 132 HOW TO RIDE THE MOTORCYCLE NOTE WARNING æ The system does not open at Cruise control can be dangerous where excessively low rpm or when in you cannot drive safely as a steady neutral, 1 or 2nd gear. speed. Do not use cruise control when æ...
Page 133 HOW TO RIDE THE MOTORCYCLE 133 A. SET/- Button A. Cruise Control Button ( ) B. “SET” Mark B. Cruise Control Indicator ÿ Push the SET/- button at the desired To adjust the set speed speed. The system starts the cruise ÿ...
Page 134 134 HOW TO RIDE THE MOTORCYCLE rapidly, the set speed decreases 1.5 km/h (1 mph) from the current speed. æ When pushing the RES/+ or SET/- button, the arrow mark appears on the display screen. A. RES/+ Button B. SET/- Button NOTE A.
Page 135 HOW TO RIDE THE MOTORCYCLE 135 To cancel the set speed To resume the set speed Push the RES/+ button. ÿ The set speed is disengaged temporarily ÿ The set speed appears on the under the following conditions: When display screen until the set speed is pulling the brake lever.
Page 136: Bimota Quick Shift (Kqs)
ÿ The system deactivates and the made. cruise control indicator goes off. The set speed also erases. Upshifting Bimota Quick Shift (KQS) During acceleration, KQS system allows you to upshift without operating KQS enables shifting gears up and the clutch and letting off the throttle.
Page 137: Bimota Cornering Management Function (Kcmf)
ÿ KQS mode can be selected from on or off in the menu mode. Refer to the Menu Mode section in the GENERAL INFORMATION chapter. Bimota Cornering Management Function (KCMF) : Entry of Corner (KTRC) Using feedback from IMU (Inertial...
Page 138 138 HOW TO RIDE THE MOTORCYCLE Inertial Measurement Unit (IMU) The IMU measures the acceleration along longitudinal, transverse and vertical axes, plus roll rate and pitch rate. In addition, the yaw rate is calculated using above data by ECU. These six axes data are used for analysis of the chassis attitude.
Page 139: Maintenance And Adjustment
Please note that Bimota cannot assume any responsibility for damage resulting from incorrect or improper adjustment made by the owner.
Page 140 The cooling fan spins at high speed and can cause serious injuries. Keep your hands and clothing away from the cooling fan blades at all times. NOTE æ If a torque wrench is not available, the maintenance items which require a specific torque value should be serviced by an authorized Bimota dealer.
Page 141: Daily Checks
MAINTENANCE AND ADJUSTMENT 141 Daily Checks Check the following items each day before you ride. The time required is minimal, and habitual performance of these checks will help ensure you a safe, reliable ride. If any irregularities are found during these checks, refer to the MAINTENANCE AND ADJUSTMENT chapter or see your dealer for the action required to return the motorcycle to a safe operating condition.
Page 142 142 MAINTENANCE AND ADJUSTMENT Operation Page Bolts, nuts and fasteners Check for loose and/or missing bolts, nuts and fasteners – Steering – Action smooth but not loose from lock to lock – No binding of control cables Brakes Brake pad wear Brake fluid level –...
Page 143 MAINTENANCE AND ADJUSTMENT 143 Operation Page Coolant level between level lines (when engine is cold) Electrical equipment All lights (head, city, brake/tail, turn signal, license plate, warning/indicator) – and horn work Engine stop switch – Stops engine Side stand Return to its fully up position by spring tension –...
Page 144: Periodic Maintenance
144 MAINTENANCE AND ADJUSTMENT Periodic Maintenance *A: Service at number of years shown or indicated odometer reading intervals, which- ever comes first. *B: For higher odometer readings, repeat at the frequency interval established here. *C: Service more frequently when operating in severe conditions: dusty, wet, muddy, high speed, or frequent starting/stopping.
Page 145 MAINTENANCE AND ADJUSTMENT 145 Odometer Reading (*B) × 1 000 km (× 1 000 mile) year Items (*A) Page (0.6) (7.6) (15.2) (22.8) (30.4) Engine vacuum synchronization – Fuel system – Fuel filter – Fuel hose – Evaporative emission control –...
Page 146: Odometer Reading See
146 MAINTENANCE AND ADJUSTMENT Odometer Reading (*B) × 1 000 km (× 1 000 mile) year Items (*A) Page (0.6) (7.6) (15.2) (22.8) (30.4) Wheel bearing damage – Drive chain wear (*C) – Drive chain guide wear – Brake system –...
Page 147 MAINTENANCE AND ADJUSTMENT 147 Odometer Reading (*B) × 1 000 km (× 1 000 mile) year Items (*A) Page (0.6) (7.6) (15.2) (22.8) (30.4) Electrical system – Spark plug – Chassis parts – Condition of bolts, nuts and – fasteners NOTE æ...
Page 148: Engine Oil
148 MAINTENANCE AND ADJUSTMENT Engine Oil Oil Level Inspection ÿ If the engine is cold, start the engine and run it for several minutes at idle speed. ÿ Stop the engine, then wait several minutes until the oil settles. NOTICE A.
Page 149 MAINTENANCE AND ADJUSTMENT 149 Oil and/or Oil Filter Change ÿ Warm engine thoroughly, then stop Place an oil pan beneath the engine. ÿ Remove the engine oil drain bolt and gasket. WARNING Engine oil is a toxic substance. Dispose of used oil properly. Contact A.
Page 150 150 MAINTENANCE AND ADJUSTMENT ÿ Apply a thin film of oil to the gasket this item should be serviced by an and tighten the oil filter to the authorized Bimota dealer. specified torque. A. Gasket ÿ Install the drain bolt with a new A.
Page 151 MAINTENANCE AND ADJUSTMENT 151 Tightening Torque Engine Oil Capacity 3.2 L (3.4 US qt) Oil Filter: [when filter is not removed] 17 N·m (1.7 kgf·m, 13 ft·lb) Engine Oil 3.8 L (4.0 US qt) Drain Bolt: [when filter is removed] 29 N·m (3.0 kgf·m, 21 ft·lb) Although 10W-40 engine oil is the ÿ...
Page 152: Coolant
152 MAINTENANCE AND ADJUSTMENT Start the engine. ÿ Check the oil level and oil leakage. Coolant Coolant Level Inspection ÿ Position the motorcycle so that it is perpendicular to the ground. ÿ Check the coolant level through the coolant level gauge on the reserve A.
Page 153 If coolant must be added often, or the reserve tank completely runs dry, there is probably leakage in the system. Have the cooling system inspected by your authorized Bimota dealer. ÿ Install the reserve tank cap. Coolant Change Have the coolant changed by an authorized Bimota dealer.
Page 154: Air Cleaner
Replacement of the air cleaner element freezing point and strength directed on should be done by an authorized the container. Bimota dealer.
Page 155: Throttle Control System
ÿ If there is any oil in the transparent ÿ If the throttle grip does not move reservoir, remove the transparent smoothly, have the throttle control reservoir from the lower end of the system checked by an authorized drain hose and drain the oil. Bimota dealer.
Page 156: Idle Speed
If there is any speed is disturbed, inspection of the irregularity, have the clutch cable idle speed control should be done by checked by an authorized Bimota an authorized Bimota dealer. dealer. NOTE ÿ Check the clutch lever free play.
Page 157 ÿ If it cannot be done, have the clutch cable adjusted by an authorized Clutch Lever Free Play Adjustment Bimota dealer. ÿ Loosen the locknut, and turn the NOTE adjuster so that the clutch lever will æ...
Page 158: Drive Chain
158 MAINTENANCE AND ADJUSTMENT Drive Chain Drive Chain Lubrication Lubrication is necessary after riding through rain or on wet roads, or any time that the chain appears dry. Use a lubricant for sealed chains to prevent deterioration of chain seals. If the chain is especially dirty, clean it using a cleaner for sealed chains following the instructions supplied by...
Page 159 MAINTENANCE AND ADJUSTMENT 159 slack by pulling up and pushing Drive Chain Slack down the chain midway between Standard: 20 ~ 30 mm (0.8 ~ 1.2 in.) the engine sprocket and rear wheel Drive Chain Slack Adjustment sprocket. ÿ Loosen the rear wheel axle ÿ...
Page 160 160 MAINTENANCE AND ADJUSTMENT WARNING Misalignment of the wheel will result in abnormal wear, and may result in an unsafe riding condition. Align the rear wheel using the marks on the swingarm or measuring the distance between the center of the axle and swing-arm pivot.
Page 161: Brakes
Tighten the clamp bolts to the defective. Have the brake checked proper torque. immediately by an authorized Bimota dealer. ÿ Check the rear brake (see Brakes section in this chapter).
Page 162 In this case, have the brake system inspected by an authorized Bimota dealer. Brake Pad Wear Inspection Inspect the brakes for wear. For each front and rear disc brake caliper, if the...
Page 163: Brake Light Switches
MAINTENANCE AND ADJUSTMENT 163 thickness of either pad lining is less than below table, replace both pads in the caliper as a set. Pad replacement should be done by an authorized Bimota dealer. Lining Thickness Service Limit Front 1.0 mm (0.04 in.) Rear 1.0 mm (0.04 in.)
Page 164: Suspension System
164 MAINTENANCE AND ADJUSTMENT ÿ If it does not, ask your authorized NOTICE Bimota dealer to inspect the front After riding, clean off any dirt (grit, brake light switch and or the rear mud or insects etc.) that is stuck to brake light switch.
Page 165 MAINTENANCE AND ADJUSTMENT 165 ÿ Turn the adjuster clockwise with a wrench to increase spring preload and stiffen the suspension. ÿ Turn the adjuster counterclockwise to decrease spring preload and soften the suspension. NOTICE Do not turn the adjuster beyond the fully seated position or the adjusting mechanism may be damaged.
Page 166 166 MAINTENANCE AND ADJUSTMENT ÿ Turn the adjuster counterclockwise Compression Damping Force Adjustment to decrease damping force. ÿ The adjuster is located on top of the left front fork leg. NOTICE Standard Do not turn the adjuster beyond the 20 Clicks fully seated position or the adjusting Out from the fully closed position (turned mechanism may be damaged.
Page 167: Rear Shock Absorber
MAINTENANCE AND ADJUSTMENT 167 Rear Shock Absorber WARNING ÿ Adjusting the Öhlins TTX36 shock absorber outside the spring preload and damper adjuster usable range could affect suspension balance and result in an unsafe riding condition. Adjust the spring preload A. Compression Damping Force Adjuster and the damping only within the adjustable usable range.
Page 168 NOTICE Bimota warranty. Do not turn the adjuster beyond the fully seated position or the adjusting Spring Preload Adjustment mechanism may be damaged.
Page 169 MAINTENANCE AND ADJUSTMENT 169 Rebound and Compression Damping Force Adjustment The adjusters are located at the upper end of the rear shock absorber. Standard 22 Clicks Out from the fully closed position (turned fully clockwise). ÿ Turn the adjuster clockwise with a flat tip screwdriver to increase A.
Page 170: Setting Tables
170 MAINTENANCE AND ADJUSTMENT Setting Tables Front Fork Spring Preload Setting Softest setting limit Standard Hardest setting limit Adjuster Position 8 turns in** 18 turns in** Spring Action Weak ←→ Strong Setting Soft ←→ Hard Load Light ←→ Heavy Road Good ←→...
Page 171 MAINTENANCE AND ADJUSTMENT 171 Front Fork Damping Force Settings Softest setting limit Standard Hardest setting limit Rebound 23 clicks out** 20 clicks out** Adjuster Position Compression 23 clicks out** 20 clicks out** Damping Force Weak ←→ Strong Setting Soft ←→ Hard Load Light...
Page 172 172 MAINTENANCE AND ADJUSTMENT Rear Shock Absorber Spring Preload Setting Softest setting limit Standard Hardest setting limit Spring pre-load 16 clicks** 12 clicks** Spring Action Weak ←→ Strong Setting Soft ←→ Hard Load Light ←→ Heavy Road Good ←→ Speed ←→...
Page 173 MAINTENANCE AND ADJUSTMENT 173 Rear Shock Absorber Damping Force Setting Softest setting limit Standard Hardest setting limit Rebound 44 clicks out** Adjuster 22 clicks out** Position Comp 54 clicks out** Damping Force Weak Strong Setting Soft Hard Load Light ←→ Heavy Road Good...
Page 174: Wheels
174 MAINTENANCE AND ADJUSTMENT Wheels Tire Pressure Inspection Remove the air valve cap. ÿ Check the tire pressure often, using an accurate gauge. ÿ Make sure to install the air valve cap securely. A. Air valve Tire Air Pressure (when cold) NOTE 250 kPa (2.50 kgf/cm², 36 psi) ront...
Page 175 MAINTENANCE AND ADJUSTMENT 175 So it is false economy and unsafe to Minimum Tread Depth use the tires until they are bald. Front — 1 mm (0.04 in.) NOTICE 2 mm (0.08 in.) Tire Wear Inspection Rear Over 130 km/h ÿ...
Page 176 Replace damaged tires as soon as possible. To ensure safe handling and stability, Bimota recommends use of the recommended standard A. Crack or Cut tires for replacement, inflated to the B.
Page 177 MAINTENANCE AND ADJUSTMENT 177 æ When operating on public roadways, Recommended Standard Tire (Tubeless) keep maximum speed under traffic Make, Type: law limits. PIRELLI SUPERCORSA 3 Front Size: Technically Permissible Minimum Tire 120/70ZR17 M/C (58W) Requirements Make, Type: Minimum load capacity index: PIRELLI SUPERCORSA 3 Rear Front...
Page 178: Battery
If you are riding your vehicle infrequently, inspect the battery voltage weekly using a voltmeter. If it drops be- low 12.8 volts, the battery should be charged using an appropriate charger (check with your Bimota dealer). If...
Page 179 Christie C10122S type quick charger that may over- charge the battery and damage it. If the above chargers are not avail- able, use equivalent one. NOTE For more details, ask your Bimota æ Leaving battery connected dealer. causes the electrical components (clock etc.) to make the battery...
Page 180 180 MAINTENANCE AND ADJUSTMENT ÿ The adjuster is located on top of DANGER theright front fork leg. ÿ Battery acid generates hydrogen ÿ Refer to the Seats section in the which flammable GENERAL INFORMATION chapter. explosive under certain conditions. ÿ Disconnect the negative (–) cable It is present within a battery at from the negative (–) terminal.
Page 181 MAINTENANCE AND ADJUSTMENT 181 ÿ Connect the positive (+) cable to the positive (+) terminal, and then connect the negative (–) cable to the negative (–) terminal. NOTICE Installing the negative (–) cable to the positive (+) terminal of the battery or the positive (+) cable to the negative (–) terminal of the battery can seriously A.
Page 182: Headlight
If adjusted too low, neither Headlight aiming should be done by low nor high beam will illuminate the an authorized Bimota dealer. road far enough ahead. If adjusted too high, the high beam will fail to illuminate the road close ahead, and the low beam will blind oncoming drivers.
Page 183: Fuses
If the fuse fails repeatedly, there is something wrong with the electrical system. Have the motorcycle checked A. Fuse Boxes by an authorized Bimota dealer.
Page 184: General Lubrication
184 MAINTENANCE AND ADJUSTMENT A. Main Fuse A. Normal B. Failed WARNING Substituting fuses can cause wiring to General Lubrication overheat, catch fire and/or fail. Do not use any substitute for the standard Lubricate the points shown below, with either engine oil or regular grease, fuse.
Page 185: Cleaning
ÿ (K) Clutch Inner Cable from harmful UV rays, pollutants, and reduce the amount of dust reaching its Apply grease to the following surfaces. points ÿ (K) Clutch Inner Cable Upper End (K): Should be serviced by an authorized Bimota dealer.
Page 186 186 MAINTENANCE AND ADJUSTMENT ÿ Be sure the engine and exhaust are WARNING cool before washing. Build-up of debris or flammable ÿ When washing the vehicle, always material in and around the vehicle use a mild neutral detergent and chassis, engine, and exhaust can water.
Page 187 MAINTENANCE AND ADJUSTMENT 187 ÿ Take care when washing the head- Radiator light lens and other plastic parts as Clean off any obstructions with they can easily be scratched. a stream of low-pressure water. NOTE NOTICE æ After riding in an area where the Using high-pressure water, as from roads are salted or near the ocean, a car wash facility, could damage...
Page 188 NOTICE rubbed. Plastic parts may deteriorate and ÿ If any doubt, consult an authorized break if they come in contact with Bimota dealer. chemical substances or house-hold cleaning products such as gasoline, Plastic Parts brake fluid, window cleaners, thread- After washing, use a soft cloth to...
Page 189: Where To Be Careful
MAINTENANCE AND ADJUSTMENT 189 detergent and finished with a spray Where to be Careful polish. Aluminum wheels, both painted Avoid spraying water with any great and unpainted can be cleaned with force near the following places. special non-acid based wheel spray ÿ...
Page 190: Washing Your Vehicle
190 MAINTENANCE AND ADJUSTMENT ÿ Ignition switch - cover the keyhole NOTICE with tape. Coin operated, high pressure spray ÿ Rinse your vehicle with cold water washers are not recommended. Water from a garden hose to remove any may be forced into bearings and other loose dirt.
Page 191 MAINTENANCE AND ADJUSTMENT 191 ÿ Carefully ride your vehicle at a slow speed and apply the brakes several times. This helps dry the brakes and restores them to normal operating performance.
Page 192: Appendix
See your authorized Bimota dealer for this service or do the following. Preparation for Storage Make sure the area is well ventilated and free from any source of flame.
Page 193 APPENDIX 193 WARNING Gasoline is extremely flammable and can be explosive under certain conditions, creating the potential for serious burns. Turn the ignition key off. ÿ Do not smoke. ÿ Make sure the area is well ventilated and free from any source of flame or sparks; this includes any appliance with a pilot light.
Page 194 194 APPENDIX WARNING Engine oil is a toxic substance. Dispose of used oil properly. Contact your local authorities for approved disposal methods or possible recycling. Put in fresh engine oil. ÿ Empty the fuel from the fuel tank using a pump or syphon. ÿ...
Page 195: Troubleshooting Guide
Performing daily checks and periodic maintenance prevents unexpected troubles from occurring. In case of a breakdown, take emergency measures and contact your Bimota dealer to request repair. For safety, inspection and maintenance should be done within your knowledge and ability. If you are not confident in completing an...
Page 196 When any of warning indicators go on or blink, have the motorcycle inspected by an authorized Bimota dealer immediately. If the Engine Does Not Start When the engine turns over but the engine does not start, inspect as follows.
Page 197 In that case, ask an authorized Bimota dealer for inspection. ÿ When the engine warning indicator on the meter goes on and stays on, there may be a problem with the fuel injection system. Ask an authorized Bimota dealer for inspection and maintenance.
Page 198 Have the battery inspected by an authorized Bimota dealer. If the starter motor will not start after completing the above inspection and maintenance, there may be something wrong with another part such as the starter motor. Ask an authorized Bimota dealer for inspection and maintenance.
Page 199 If the coolant quantity is less than the lower level, replenish the coolant or soft water up to the upper level (see page 152). Ask an authorized Bimota dealer to identify the cause of the overheat immediately.
Page 200: Environmental Protection
Ask an authorized Bimota dealer for inspection and maintenance. If the engine stalls after completing the above inspection and maintenance, there may be something wrong with other system. Ask an authorized Bimota dealer for inspection and maintenance. Environmental Protection To help preserve the environment, properly discard used batteries, tires, oils and fluids, or other vehicle components that you might dispose of in the future.
Page 201: Location Of Dfi System Diagnostic Connector
APPENDIX 201 Location of DFI System Diagnostic Connector The DFI system diagnostic connector is located in front on the right side. A. Bolts A. DFI System Diagnostic Connector Unscrew bolts with key . Vehicle Data Recording This vehicle’s ECU stores certain data to assist in problem diagnosis, and for other purposes such as periodic technical inspection, regulatory compliance, and research and development.
Page 202 ÿ Information related to the fuel injection system and emissions. The vehicle’s ECU does not record conversations or images. This data can only be collected when the Bimota special diagnostic tool is connected to the vehicle, such as when maintenance checks or other service procedures are performed.
Page 203: Maintenance Record
MAINTENANCE RECORD 203 MAINTENANCE RECORD Owner Name ..................Address ....................Phone Number ..................Engine Number ..................Vehicle Number ..................Key Code ....................Selling Dealer Name ................Phone Number ..................Warranty Start Date ................Note: Keep this information and a spare key in a secure location. Odometer Date Maintenance Performed...
Page 204 204 MAINTENANCE RECORD Odometer Date Maintenance Performed Dealer Name Dealer Address Reading...
Page 205 MAINTENANCE RECORD 205 Odometer Date Maintenance Performed Dealer Name Dealer Address Reading...
Page 206 206 MAINTENANCE RECORD Odometer Date Maintenance Performed Dealer Name Dealer Address Reading...
Page 207 MAINTENANCE RECORD 207 Odometer Date Maintenance Performed Dealer Name Dealer Address Reading...
Page 208 208 MAINTENANCE RECORD Odometer Date Maintenance Performed Dealer Name Dealer Address Reading...
Page 209 MAINTENANCE RECORD 209...
Page 210 210 MAINTENANCE RECORD...

bimota KB4 Owner's Manual

Table of Contents

Integrated Riding Modes

Periodic Maintenance

Quick Links

Chapters

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for bimota KB4

Summary of Contents for bimota KB4

Table of Contents
