Summary of Contents for PCE Instruments PCE-423N

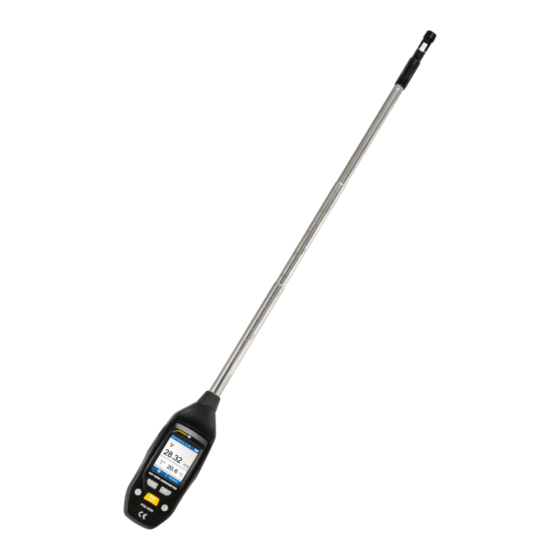

- Page 1 User Manual PCE-423N Heat Wire Anemometer User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 13 December 2022 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
Set unit ..........................5 Flow rate setting ....................... 5 Automatic power off......................6 View saved data ....................... 6 Display brightness ......................6 Date and time ........................6 Calibration ........................7 Contact ....................7 10 Disposal ....................7 © PCE Instruments... -
Page 3: Safety Notes
Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by PCE Instruments personnel. Damage or injuries caused by non-observance of the manual are excluded from our liability and not covered by our warranty. -
Page 4: Specifications
145 x 50 x 35 mm / 5.7 x 1.9 x 1.3" (without telescopic probe) Weight 156 g / 0.34 lbs Delivery scope 1 x hot wire anemometer PCE-423N 1 x micro USB cable 1 x user manual © PCE Instruments... -
Page 5: Device Description
Device description Meaning / function flow sensor, temperature sensor display left function key right function key on / off key Enter-V/F key, toggle key (velocity, flow rate) back key air slits tripod bracket micro USB connector © PCE Instruments... -
Page 6: Switching The Meter On And Off
. Press the right function key to start or pause the current average measurement . To repeat the average measurement, go to normal measurement mode with the back key and start the average measurement again. © PCE Instruments... -
Page 7: Average Measurement (Different Points)
To specify the dimensions for the flow rate, go to the settings and select the menu item "Area/Funnel". Here, you can specify four different dimensions for square as well as round areas. In addition, a cylindrical area can be specified. The last selected area is adopted in measuring mode. © PCE Instruments... -
Page 8: Automatic Power Off
YYYY/MM/DD. You can also choose between English and German style here. Use the function keys to change the parameters as desired. Use the enter-V/F key to accept the value and jump to the next item at the same time. © PCE Instruments... -
Page 9: Calibration
For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. © PCE Instruments... - Page 10 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 26 23, rue de Strasbourg Calle Mayor, 53 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17...
