Summary of Contents for Coolaroo HAYMAN 498658

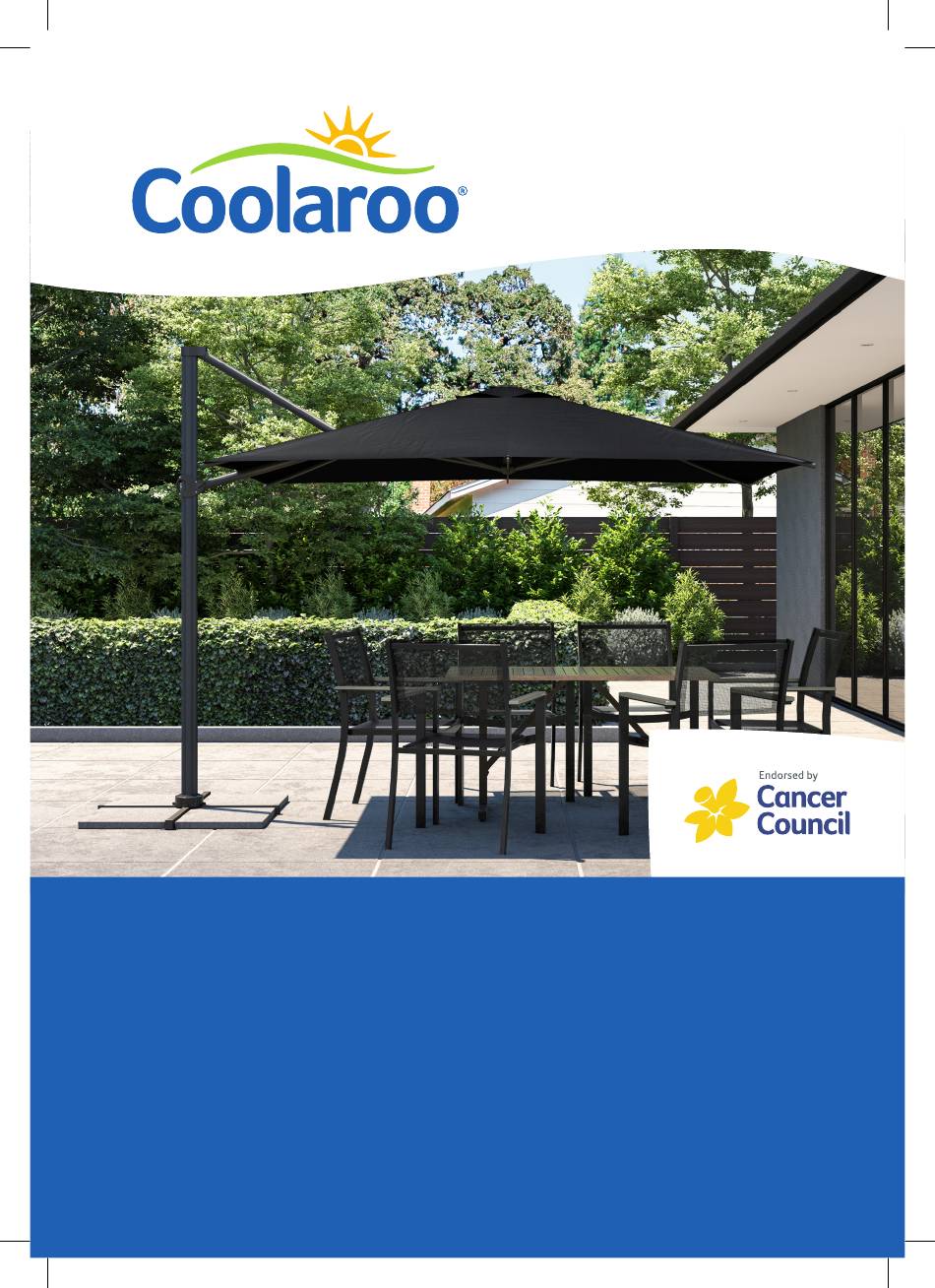

- Page 1 CANTILEVER UMBRELLA HAYMAN ASSEMBLY GUIDE AND OPERATING INSTRUCTIONS 498658_Coolaroo_Hayman_Rectangle Cantilever_Umbrella_IM_D3.indd 1 498658_Coolaroo_Hayman_Rectangle Cantilever_Umbrella_IM_D3.indd 1 24/5/21 12:38 pm 24/5/21 12:38 pm...
- Page 2 WARNING When assembling and using this product, safety precautions should always be followed to reduce the risk of personal injury and damage to equipment. Please read all instructions before assembly and use. Two or more people are recommended for safe assembly. Keep all children and pets away from assembly area.
- Page 3 (k) Allen key x 1 (l) Stay pole (m) Umbrella cover Note: The use of paving stones or weights is required to prevent tipping (not included). We recommend the Coolaroo Cantilever base set. 498658_Coolaroo_Hayman_Rectangle Cantilever_Umbrella_IM_D3.indd 3 498658_Coolaroo_Hayman_Rectangle Cantilever_Umbrella_IM_D3.indd 3 24/5/21 12:38 pm...
- Page 4 STEP 2 Place the upper cross base (a) over the lower cross base (b) to form an “X”. STEP 3 Using bolts & washers (e & f) x the 360° swivel system (c) onto the metal cross base (a & b). Then x the lower pole (d) to the 360°...
- Page 5 STEP 6 To secure the cantilever, place paving stones or Coolaroo cantilever base set to secure cross base as shown. (Paving stones and base set not included.) STEP 7 Open the umbrella by inserting and rotating the crank clockwise (i).
- Page 6 STEP 10 To close umbrella wind crank anti clockwise to close the canopy. Pull the trigger of the easy glide handle down and move to the bottom position. STEP 11 Wrap Velcro straps around the canopy (h) when not in use. To protect your umbrella, use the cover supplied (m).
- Page 7 AND LIMITATION OF LIABILITY 1) Upon purchasing the Product, the customer must register their warranty by completing the Coolaroo Coolaroo products are manufacture by Gale Pacific Limited online warranty registration at www.coolaroo.com. ACN 082 263 778 (Gale). Gale provides the following Alternatively, the customer can contact Coolaroo warranty in relation to Coolaroo products (“Product”).
- Page 8 Customer Service Department. 145 Woodlands Drive, Braeside, Victoria 3195 Australia Australia toll free: 1800 331 521 Coolaroo and Xceltex are registered New Zealand toll free: 0800 555 171 trademarks of Gale Pacific Limited Made in China Item Code: 498658 498658_Coolaroo_Hayman_Rectangle Cantilever_Umbrella_IM_D3.indd 8...
