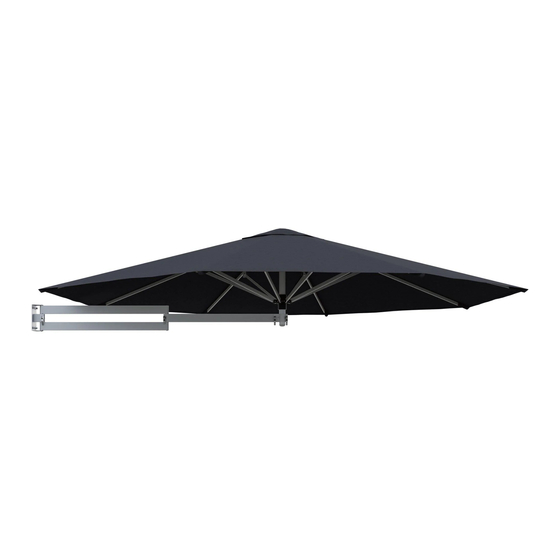

- Page 1 WALL MOUNTED UMBRELLA LIN DE M A N AS S EMBLY G UID E A N D O PERAT I NG I NSTR UC TI O NS...
-
Page 2: Care And Maintenance
WARNING When assembling and using this product, safety precautions should always be followed to reduce the risk of personal injury and damage to equipment. Please read all instructions before assembly and use. Two or more people are recommended for safe assembly. Keep all children and pets away from assembly area. -
Page 3: What Else You'll Need
ASS EMB LY G U ID E 2.7 m 0.7 m STEP 1 Take all parts out of the box and ensure they are all present. a) Umbrella wall bracket b) Umbrella canopy c) Expansion/dyna bolts M10x80mm (4) d) Allen key WHAT ELSE YOU’LL NEED - Drill - 12mm Masonry drill bit... - Page 4 STEP 2 Select a suitable location. This product can be mounted into brick, masonry or stud walls. For brick or masonry, double check to ensure you have su cient clearance and the area is free from pipes or other obstructions. WARNING! Make sure the wall is solid and strong enough to support the...
- Page 5 STEP 4 To attach wall bracket, hold frame, insert bolts in all four holes and tighten using allen key. STEP 5 To manoeuvre the bracket to the desired position, release the latch from the lock. When in position, push latch back up. side view top view...
- Page 6 STEP 6 Open canopy by pushing up the centre rib support until it locks into position. STEP 7 Release latch and insert umbrella pole into locking mechanism by unlocking the latch and turn the bolt anti clockwise.
-
Page 7: Warranty Claims
WARRANTY CLAIMS AND LIMITATION OF LIABILITY 1) Upon purchasing the Product, the customer must register their warranty by completing the Coolaroo online warranty registration at www.coolaroo.com. Alternatively, the ACN 082 263 778 (Gale). Gale provides the following customer can contact Coolaroo Customer Service on warranty in relation to Coolaroo products (“Product”). - Page 8 Sun Smart steps: slip on clothing, slop on sunscreen, slap on a hat, slide on sunglasses and seek shade under your premium Coolaroo umbrella. To register your product, go to coolaroo.com. The product code can be found printed above the barcode on the product packaging, alternatively you can coolaroo.com...
