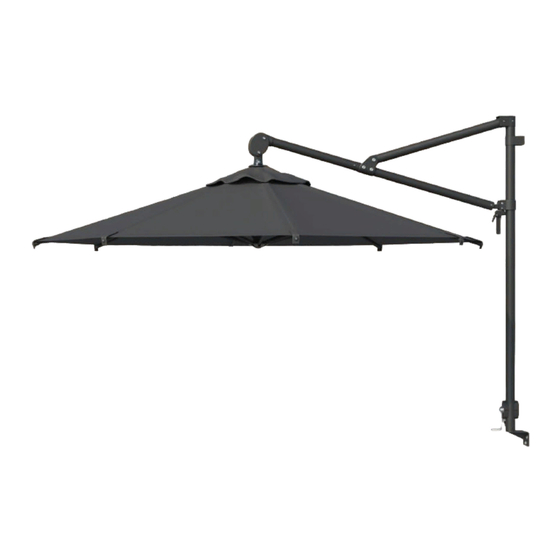

- Page 1 CANTILEVER UMBRELLA P O R T L A N D A SS EMB LY G U ID E A N D O PE R ATIN G IN S T RU C TI O N S...
-
Page 2: Care And Maintenance
WARNING When assembling and using this product, safety precautions should always be followed to reduce the risk of personal injury and damage to equipment. Please read all instructions before assembly and use. Two or more people are recommended for safe assembly. Keep all children and pets away from assembly area. -
Page 3: Parts List
A SSEMBLY GUIDE *all measurements here shown in mm PARTS LIST WHAT ELSE YOU’LL NEED Take all parts out of the box and ensure they -Drill are all present. -14mm masonry drill bit Umbrella frame & canopy -level Top wall bracket -tape measure Bottom wall bracket -pencil... - Page 4 A S S E M B L Y G U I D E STEP 1 Select a suitable location. This product can be mounted into brick, masonry or stud walls. For brick or masonry, double check to ensure you have sufficient clearance and the area is free from pipes or other obstructions WARNING! Make sure the wall is solid and...
- Page 5 STEP 3 Using an adjustable spanner, insert expansion bolts through bottom wall bracket and tighten. STEP 4 Insert base of frame and canopy into the bottom bracket. Insert tension screw and tighten.
- Page 6 STEP 5 Whilst holding the umbrella in position, undo the securing strap of the canopy. STEP 6 Insert top wall bracket over the top housing block.
- Page 7 STEP 7 Using an adjustable spanner, insert expansion bolts through top wall bracket and tighten. STEP 8 Push down the cantilever trigger handle and push up. Ensure pin is engaged at desired height.
- Page 8 STEP 9 Using the crank mechanism, crank clockwise to open canopy. STEP 10 Using the crank mechanism, crank anti clockwise to close the canopy.
- Page 9 STEP 11 Your canopy can be adjusted to be positioned to the left or right. There are additional tension screw points at the base of the frame. Unscrew and remove the tension screw. Manoeuvre the pole either left or right until you see the additional tension screw hole.
-
Page 10: Warranty Claims
Alternatively, the customer Coolaroo products are manufactured by Gale Pacific Limited can contact Coolaroo Customer Service on 1800 331 521 (AU) or ACN 082 263 778 (Gale). Gale provides the following warranty in 0800 555 171 (NZ) for assistance. - Page 11 New Zealand Toll Free: 0800 555 171 you may have, contact our Customer Service Department. Gale Pacific Limited 145 Woodlands Drive, Braeside, Victoria, 3195 Australia 450540 Coolaroo is a registered trademark of Gale Pacific Limited...
