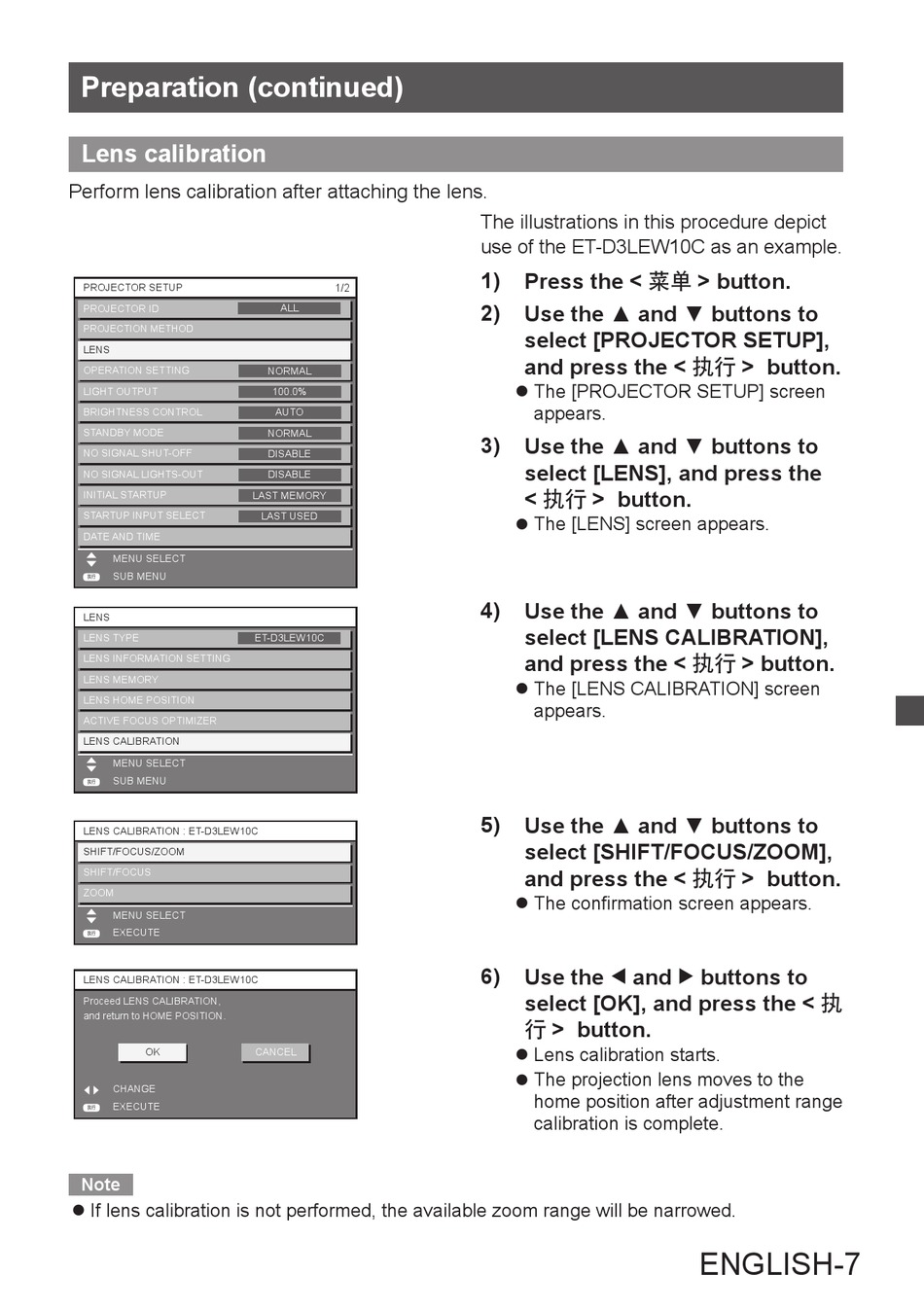

Preparation (continued)

Lens calibration

Perform lens calibration after attaching the lens.
PROJECTOR SETUP
PROJECTOR ID
PROJECTION METHOD
LENS
OPERATION SETTING
LIGHT OUTPUT
BRIGHTNESS CONTROL
STANDBY MODE
NO SIGNAL SHUT-OFF
NO SIGNAL LIGHTS-OUT
INITIAL STARTUP
STARTUP INPUT SELECT
DATE AND TIME
MENU SELECT
SUB MENU
执行
LENS
LENS TYPE
LENS INFORMATION SETTING
LENS MEMORY
LENS HOME POSITION
ACTIVE FOCUS OPTIMIZER
LENS CALIBRATION
MENU SELECT
SUB MENU
执行
LENS CALIBRATION : ET-D3LEW10C
SHIFT/FOCUS/ZOOM
SHIFT/FOCUS
ZOOM
MENU SELECT
EXECUTE
执行
LENS CALIBRATION : ET-D3LEW10C
Proceed LENS CALIBRATION,
and return to HOME POSITION.
OK
CHANGE
EXECUTE
执行
Note
z If lens calibration is not performed, the available zoom range will be narrowed.
1/2
ALL
NORMAL
100.0%
AUTO
NORMAL
DISABLE
DISABLE
LAST MEMORY
LAST USED
ET-D3LEW10C
CANCEL
The illustrations in this procedure depict
use of the ET-D3LEW10C as an example.
1)
Press the < 菜单 > button.
2) Use the ▲ and ▼ buttons to
select [PROJECTOR SETUP],
and press the < 执行 > button.
z The [PROJECTOR SETUP] screen
appears.
3)
Use the ▲ and ▼ buttons to
select [LENS], and press the
< 执行 > button.
z The [LENS] screen appears.
4)
Use the ▲ and ▼ buttons to
select [LENS CALIBRATION],
and press the < 执行 > button.
z The [LENS CALIBRATION] screen
appears.
5) Use the ▲ and ▼ buttons to
select [SHIFT/FOCUS/ZOOM],
and press the < 执行 > button.
z The confirmation screen appears.
6)
Use the and

select [OK], and press the < 执
行 > button.
z Lens calibration starts.
z The projection lens moves to the
home position after adjustment range
calibration is complete.
buttons to

