Operating Instructions

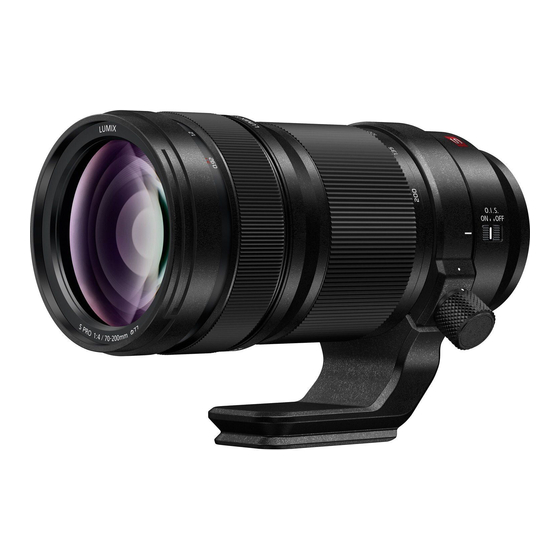

INTERCHANGEABLE LENS
FOR DIGITAL CAMERA
Thank you for purchasing Panasonic product.
Please read these instructions carefully before using this
product, and save this manual for future use.
This lens can be attached to a 35 mm digital camera that
complies with the Leica Camera AG L-Mount standard
and that is equipped with a full-frame image sensor.
L-Mount is a trademark or registered trademark of
0
Leica Camera AG.
Other names, company names, product names
0
mentioned in this document are trademarks or
registered trademarks of the companies concerned.
18
DVQX1725
Contents
Information for Your Safety .................................... 19
Precautions ............................................................ 20
Supplied Accessories............................................. 21
Names and Functions of Components................... 22
Attaching the Lens ................................................. 23
Switching AF/MF.................................................... 24
Using the Tripod Mount.......................................... 24
Cautions for Use .................................................... 26
Troubleshooting ..................................................... 26
Specifications......................................................... 27
Limited Warranty (ONLY FOR U.S.A.)................... 28
Limited Warranty (ONLY FOR CANADA) .............. 30
